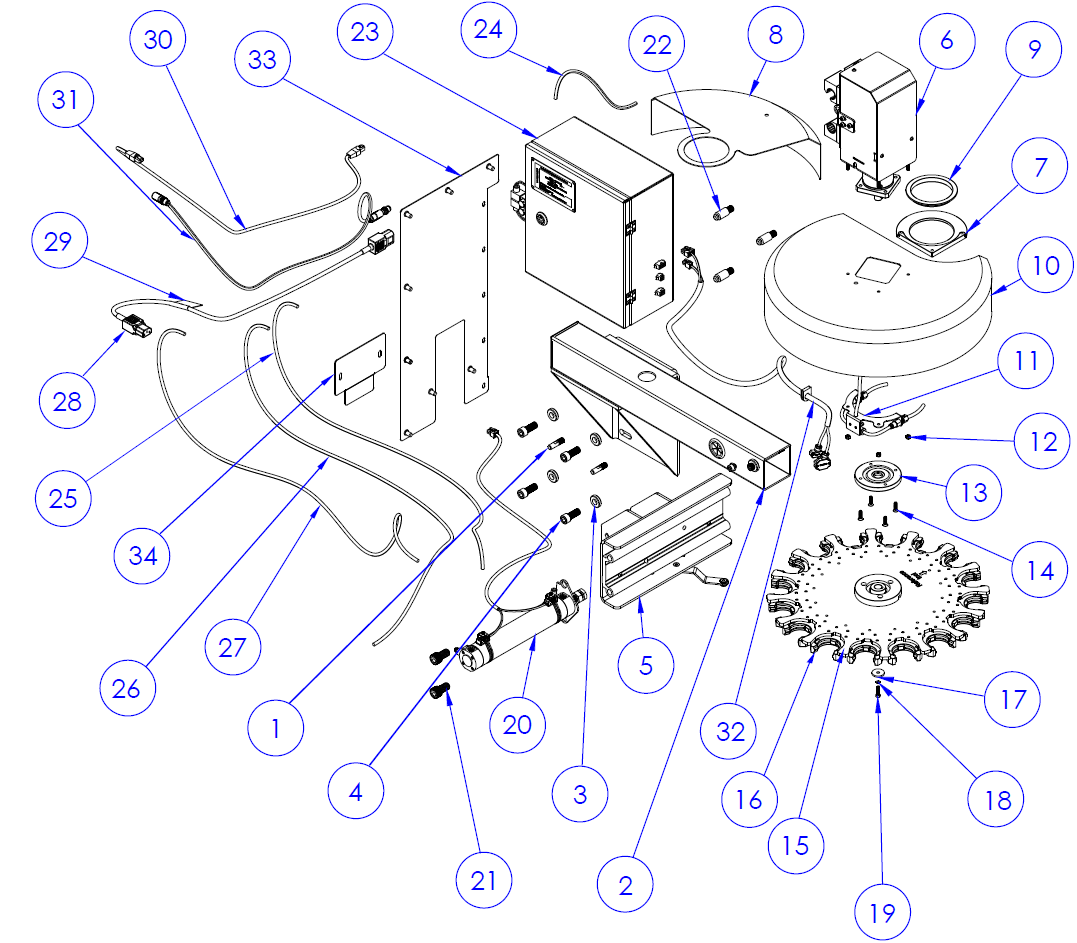

Automatic Tool Changer Assembly - 1500MX


Description

Quantity

1

ATC Slide Pin 10 mm, 1500MX

2

2

ATC Column Mount Assembly, 1500MX (PN 51857)

1

3

ATC Custom Standoff Washer, M12, 1500MX (PN 52288)

4

4

Screw, Socket Head Cap, M12 × 1.75 - 30 (PN 52448)

4

5

ATC Slide Assembly, 1500MX (PN 51852)

1

6

ATC Motor Box Assembly, 1500MX (PN 51853)

1

7

ATC Chip Door Turning Box, Base, Black Delrin, 1500MX (PN 53036)

1

8

ATC Chip Door, BT30 16T (PN 51865)

1

9

ATC Chip Door Turning Box, Top, Black Delrin, 1500MX (PN 53035)

1

10

ATC Cowling, 1500MX (PN 53030)

1

11

ATC Blast Assembly, 1500MX (PN 51854)

1

12

Locknut, Hex, M5 × 0.8 (PN 53054)

3

13

ATC Gearbox Spacer, 1500MX (PN 51864)

1

14

Screw, Hex (Flat), M5 × 0.8 - 20, Black Oxide Steel (PN 52384)

4

15

ATC Tool Tray Assembly, 1500MX (PN 51855)

1

16

ATC Fork for MX Mills (BT30) (PN 38519)

16

17

Custom Stainless Steel Washer, M5 (PN 52482)

1

18

Washer, Pressure, 1/4 in. (PN 52587)

1

19

Screw, Hex Head, M5 × 0.8 - 20, A2 Stainless Steel (PN 53034)

1

20

ATC Actuator Assembly, 1500MX (PN 51859)

1

21

Screw, Socket Head Cap, M14 × 2.0 - 25, Black Oxide (PN 53055)

2

22

Cabinet Standoffs, M12 × 15 (PN 51974)

3

23

ATC Electrical Cabinet Assembly, 1500MX (PN 51949)

1

24

Tubing, Polyethylene Air Line, 1/4 in. OD, Black, 40 cm (PN 31457)

1

25

Tubing, Polyethylene Air Line, 1/4 in. OD, Red, 125 cm (PN 52323)

1

26

Tubing, Polyethylene Air Line, 1/4 in. OD, Black, 135 cm (PN 31457)

1

27

Tubing, Polyethylene Air Line, 1/4 in. OD, Black, 125 cm (PN 31457)

1

28

IEC 320 C13 to C14 Cable, 250 V, 10 A, 1 M, Black (PN 51969)

1

29

Vinyl Decal, microARC 6, Cord Label 38 × 77 mm (PN 52497)

1

30

Servo Drive Comm. EtherCAT Cable, 1M (PN 51970)

1

31

External STO/24 V Harness (PN 51965)

1

32

External Encoder/Motor Power Harness (PN 51967)

1

33

Mount Cover Panel, 1500MX (PN 52374)

1

34

Mount Gap Plate, 1500MX (PN 52450)

1
