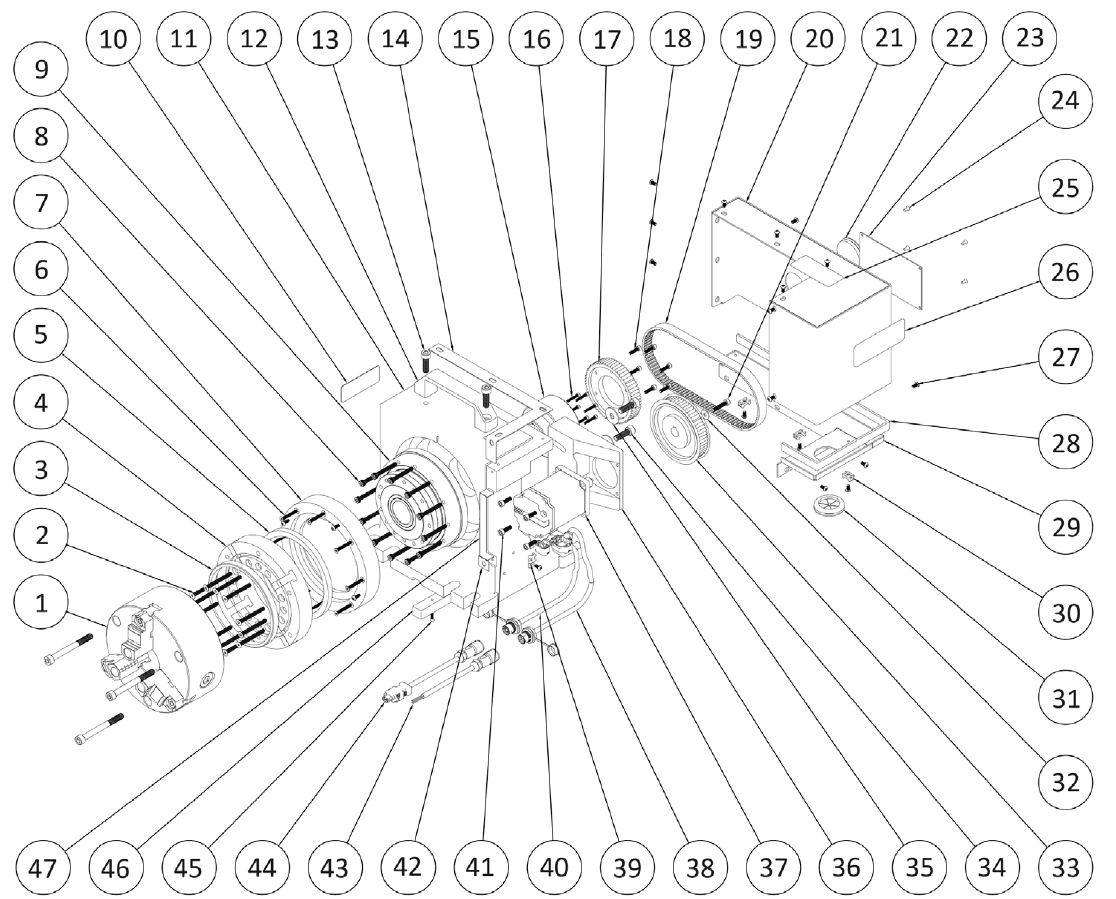

microARC 6 Assembly - 1500MX
Description | Quantity | |
|---|---|---|
| 1 | 3-Jaw Chuck, microARC 6 (PN 51822) | 1 |
| 2 | Screw, Flat Head Cap, M5 × 0.8 - 50, 18-8 Stainless (PN 52433) | 12 |
| 3 | Pilot Ring, microARC 6 (PN 51826) | 1 |
| 4 | Face Plate, microARC 6 (PN 51825) | 1 |
| 5 | Shaft Seal, microARC 6 (PN 51828) | 1 |
| 6 | Screw, Flat Head Cap, M4 × 0.7 - 30, 18-8 Stainless (PN 51849) | 8 |
| 7 | Rotary Shaft Seal, microARC 6 (PN 51827) | 1 |
| 8 | Screw, Socket Head Cap, M5 × 0.8 - 40, 18-8 Stainless (PN 51840) | 12 |
| 9 | Harmonic Gearbox, 80 mm Trade Size, 50:1 Ratio (PN 51829) | 1 |
| 10 | Resin Decal, microARC6, Left View, 28 × 75 mm (PN 52494) | 1 |
| 11 | Body Casting, microARC 6 (PN 51819) | 1 |
| 12 | Grab Handle, 140 mm OAL × 41 mm Height (PN 51831) | 1 |
| 13 | Screw, Socket Head Cap, M8 × 1.25 - 25, 18-8 Stainless (PN 52489) | 2 |
| 14 | Pulley Cover Gasket 1, 1 mm, Neoprene, microARC 6 (PN 52924) | 1 |
| 15 | Pulley Connector, microARC 6 (PN 51830) | 1 |
| 16 | Screw, Socket Head Cap, M3 × 0.5 - 20, 18-8 Stainless (PN 52909) | 6 |
| 17 | Gearbox Pulley, microARC 6 (PN 51834) | 1 |
| 18 | Screw, Socket Head Cap, M4 × 0.7 - 16, 18-8 Stainless (PN 51847) | 6 |
| 19 | Timing Belt, S5M, 565 mm Length, 15 mm Width (PN 51835) | 1 |
| 20 | Pulley Cover 1, microARC 6 (PN 51820) | 1 |
| 21 | Screw, Socket Head Cap, M5 × 0.8 - 25, 18-8 Stainless (PN 51844) | 1 |
| 22 | Closed Hole Grommet, 35 × 40 mm × 3 mm, Rubber (PN 52910) | 1 |
| 23 | Tormach Steel Part Number Plate, microARC 6 (PN 52493) | 1 |
| 24 | Rivet Aluminum, 1/8 in. × 3/8 in. (PN 52731) | 4 |
| 25 | Resin Decal, microARC6, Top View, 32 × 77 mm (PN 52496) | 1 |
| 26 | Resin Decal, microARC6, Right View, 37 × 100 mm (PN 52495) | 1 |
| 27 | Screw, Button Head Cap, M4 × 0.7 - 8, 18-8 Stainless (PN 52434) | 23 |
| 28 | Lid Seal 1/2 in. × 1/8 in., MicroARC6 0.5 m (PN 52427) | 0.5 m |
| 29 | Pulley Cover 2, microARC 6 (PN 51821) | 1 |
| 30 | Fastener, Cable Tie Mount, 9/16 in. × 3/8 in. (PN 52354) | 3 |
| 31 | Hole Grommet, 30 mm × 35 mm x 3 mm, Rubber microARC 6 (PN 51836) | 1 |
| 32 | Washer, Fender, 5.3 mm × 15 mm, 1.0-1.4 mm, 18-8 Stainless (PN 51845) | 1 |
| 33 | Motor Pulley, microARC 6 (PN 51833) | 1 |
| 34 | Screw, Socket Head Cap, M8 × 1 .25 - 25, 18-8 Stainless (PN 52489) | 1 |
| 35 | Washer, Fender, 8.7 mm × 25.4 mm, 1.5 • 1.7 mm, 18·8 Stainless (PN 52937) | 2 |
| 36 | Motor Bracket, microARC 6 (PN 51832) | 1 |
| 37 | Servo Motor, 400 W, 220 V, 2.8 A, 3000 rpm, Oil Seal (PN 51196) | 1 |
| 38 | Power Cable, Inside Cabinet, microarc 6 (PN 53100) | 1 |
| 39 | Wire Tie Holder (PN 38558) | 1 |
| 40 | Encoder Cable, Inside Cabinet, microARC 6 (PN 53102) | 1 |
| 41 | Screw, Socket Head Cap, M5 × 0.8 - 16. 18-8 Stainless (PN 51843) | 4 |
| 42 | Puley Cover Gasket 2, 1 mm, Neoprene, microARC 6 (PN 52925) | 1 |
| 43 | Power Cable, Outside Cabinet, microARC 6 (PN 53101) | 1 |
| 44 | Encoder Cable, Outside Cabinet, microARC 6 (PN 53103) | 1 |
| 45 | Screw, Flat Head Cap, M3 × 0.5 - 20, 18-8 Stainless (PN 51839) | 1 |
