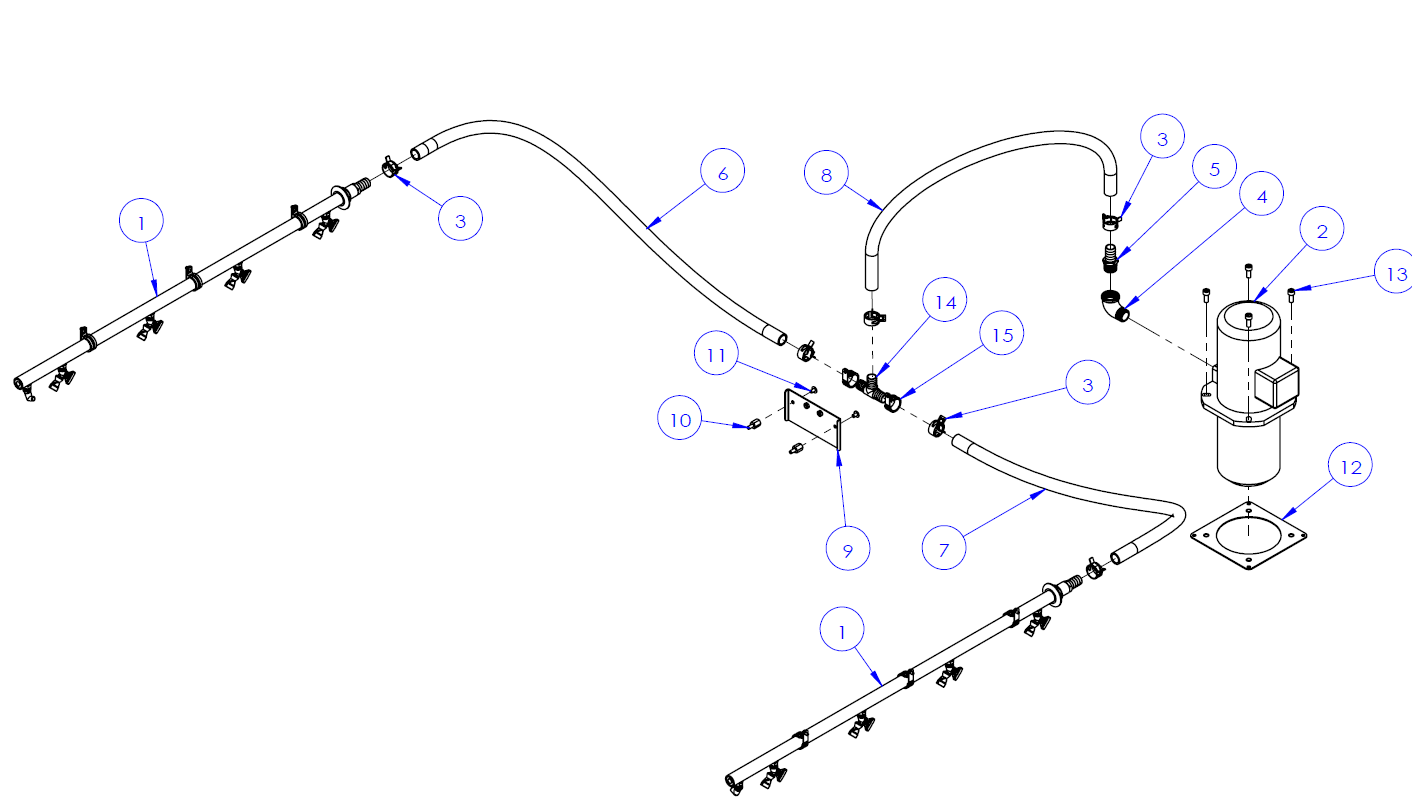

Washdown Kit Assembly - 1500MX

1

Coolant Washdown Bar Assembly, 1500MX(PN 51377)

–

2

2

Coolant Pump, Dual Voltage (Preset to 240), 1/2 hp, 180 mm Length, 3/4 NPT Outlet, 2 m 14 AWG Cord (with Right-Angle C14 Plug) (PN 51385)

–

1

3

Hose Clamp, Spring, for 1 in. OD Hose (PN 51558)

McMaster Carr: 7329K16

6

4

Fitting, Street Elbow Adapter, 3/4 in. NPT (Male) - 3/4 in. NPT
(Female), Brass (PN 51606)

McMaster Carr: 4429K154

1

5

Fitting, Straight Adapter, 3/4 in. NPT (Male) - 3/4 in. Barb, Brass
(PN 51556)

McMaster Carr: 5346K28

1

6

Hose, 3/4 in. ID × 1 in. OD, PVC, 1150 mm Long (PN 51608)

McMaster-Carr: 5233K71

1

7

Hose, 3/4 in. ID × 1 in. OD, PVC, 1150 mm Long (PN 51608)

McMaster-Carr: 5233K71

1

8

Hose, 3/4 in. ID × 1 in. OD, PVC, 1150 mm Long (PN 51608)

McMaster-Carr: 5233K71

1

9

Bracket, Washdown Coolant Tee Fitting, 1500MX (PN 52500)

–

1

10

Standoff, 16 mm, M6 × 1 - 13 mm Male, M6 × 1 - 10 mm Female,
Steel (PN 51566)

McMaster-Carr: 93655A255

2

11

Screw, Button Head Cap, Flanged M6 × 1 - 10, 18-8 Stainless
(PN 51616)

McMaster Carr: 90909A726

2

12

Coolant Pump Mounting Plate, 1/2 hp, 1500MX (PN 52459)

–

1

13

Screw, Socket Head Cap, M8 × 1.25 - 20 (PN 31895)

McMaster-Carr: 91290A426

4

14

Fitting, Tee, 3/4 in. Barbed, Brass (PN 52498)

McMaster-Carr: 91355K54

1

15

Loop Clamp, 25 mm ID (PN 51379)

McMaster-Carr: 3177T16

2
