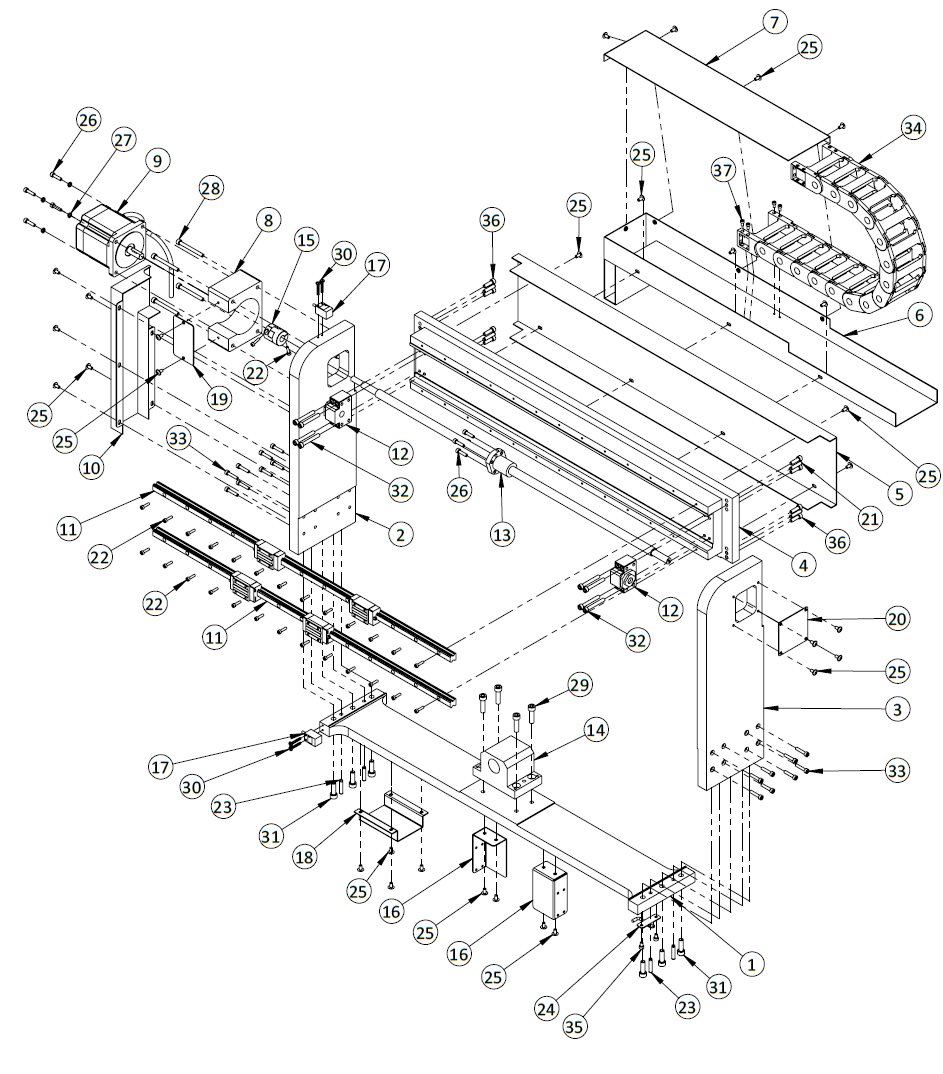

Gantry - 24R

1

Lower Gantry Cross Beam^*

–

1

2

Bridge Support, Left Side (PN 39057)

–

1

3

Bridge Support, Right Side (PN 39058)

–

1

4

X-Axis Bridge^*

–

1

5

Rear Cover, X-Axis Bridge^*

–

1

6

X-Axis Wire Tray^*

–

1

7

X-Axis Wire Track Cover^*

–

1

8

Motor Mount, NEMA 34^*

–

1

9

Motor, Stepper, NEMA 34, 1.2 deg, 450 Ncm, 3-phase, 400 mm Cable (PN 50374)

–

1

10

Cover, Gantry Left Side^*

–

2

11

Linear Guideway Assembly, X-Axis (PN 39066)

Linear Rail, X-Axis 15 mm × 800 mm^*

X/Z-Axis Linear Guide Block (PN 39301)

Linear Rail Bolt Cap^*

–

–

–

–

2

1

2

13

12

Ball Screw Support Bearing, Fixed (PN 38328)

–

2

13

X-Axis Ball Screw Assembly (PN 39302)

Ball Screw, Rolled, 15 mm × 5 mm - 853 mm^*

X-Axis Ball Nut (Nut Only)^*

–

–

–

1

1

1

14

Ball Nut Carrier, Y-Axis^*

–

1

15

Shaft Coupling, Jaw, One Piece Split, 10 mm × 0.5 in. - 35 mm (PN 39318)

–

1

16

Y-Axis Drag Chain Bracket^*

–

2

17

Limit Switch, Rectangular Proximity Sensor (PN 39074)

–

2

18

Y-Axis Cable Tray^*

–

1

19

Cover, XY Axis Motor Mount^*

–

1

20

Access Cover, X-Axis Ball Screw Mount^*

–

1

21

Pin, 6 mm × 28 mm, Steel, Pull-Out, M4^*

–

4

22

Screw, Socket Head Cap, M4 × 0.7 - 16

McMaster-Carr: 91290A154

28

23

Pin, 6 mm × 30 mm, Steel, Pull-Out, M4^*

–

4

24

Remote Oil Line Fitting^*

–

1

25

Screw, Button Head Cap (Flanged), M5 × 0.8 - 10, Stainless Steel

McMaster-Carr: 97654A376

29

26

Screw, Socket Head Cap, M5 × 0.8 - 20

McMaster-Carr: 91290A242

9

27

Washer, Split Lock, M5

McMaster-Carr: 91111A124

4

28

Screw, Socket Head Cap, M6 × 1 - 60

McMaster-Carr: 91290A344

4

29

Screw, Socket Head Cap, M8 × 1.25 - 30

McMaster-Carr: 91290A434

4

30

Screw, Pan Head Machine, M4 × 0.7 - 25, Stainless Steel

McMaster-Carr: 90116A221

4

31

Screw, Socket Head Cap, M8 × 1.25 - 25

McMaster-Carr: 91290A432

6

32

Screw, Socket Head Cap, M6 × 1 - 45

McMaster-Carr: 91290A338

8

33

Screw, Socket Head Cap, M5 × 0.8 - 25

McMaster-Carr: 91290A252

16

34

Drag Chain, X-Axis (PN 39061)

–

1

35

Screw, Socket Head Cap, M5 × 0.8 - 8

McMaster-Carr: 91290A222

2

36

Screw, Socket Head Cap, M6 × 1 - 20

McMaster-Carr: 91290A326

8

37

Screw, Socket Head Cap, M4 × 0.7 - 8

McMaster-Carr: 91290A140

4
