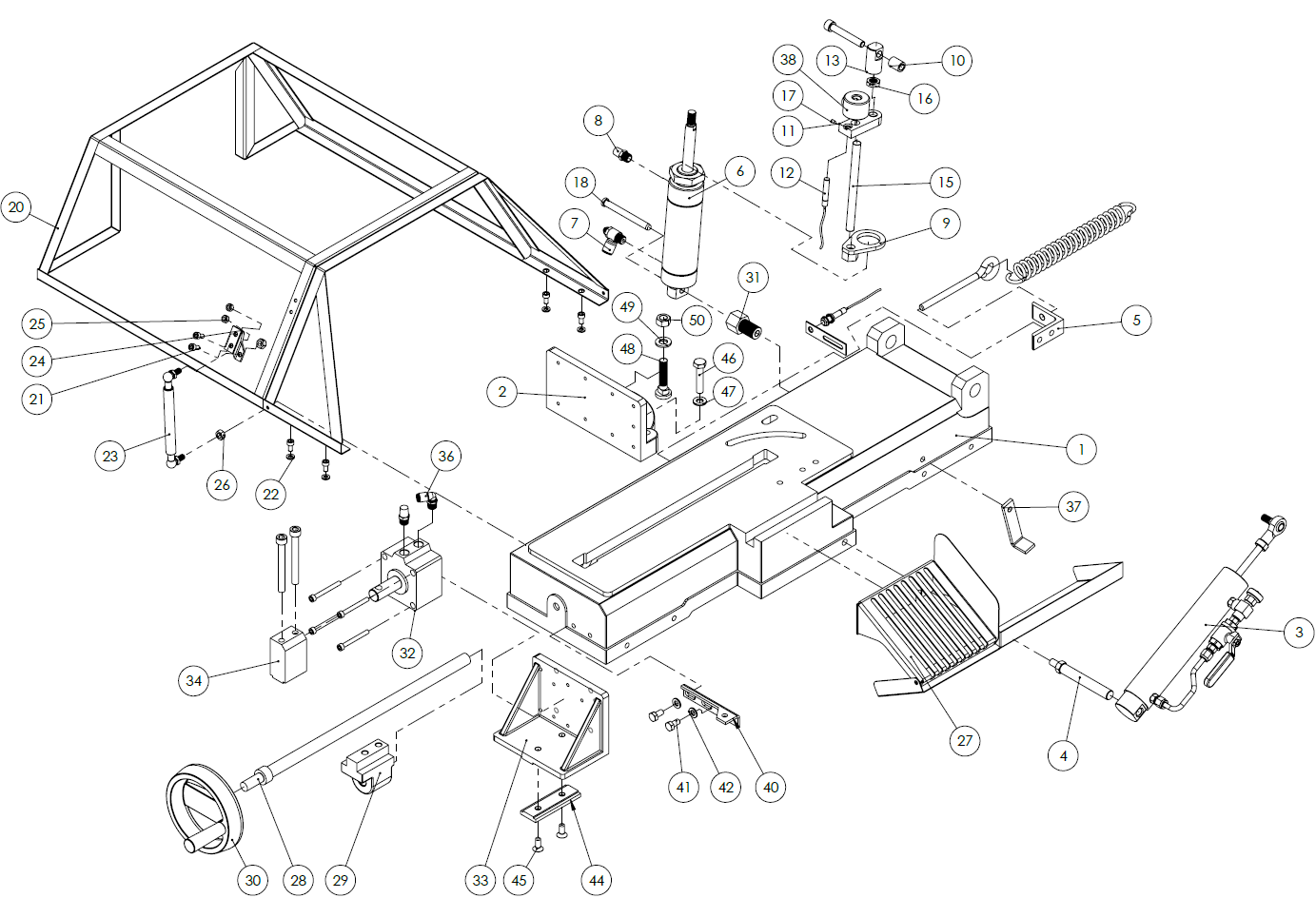

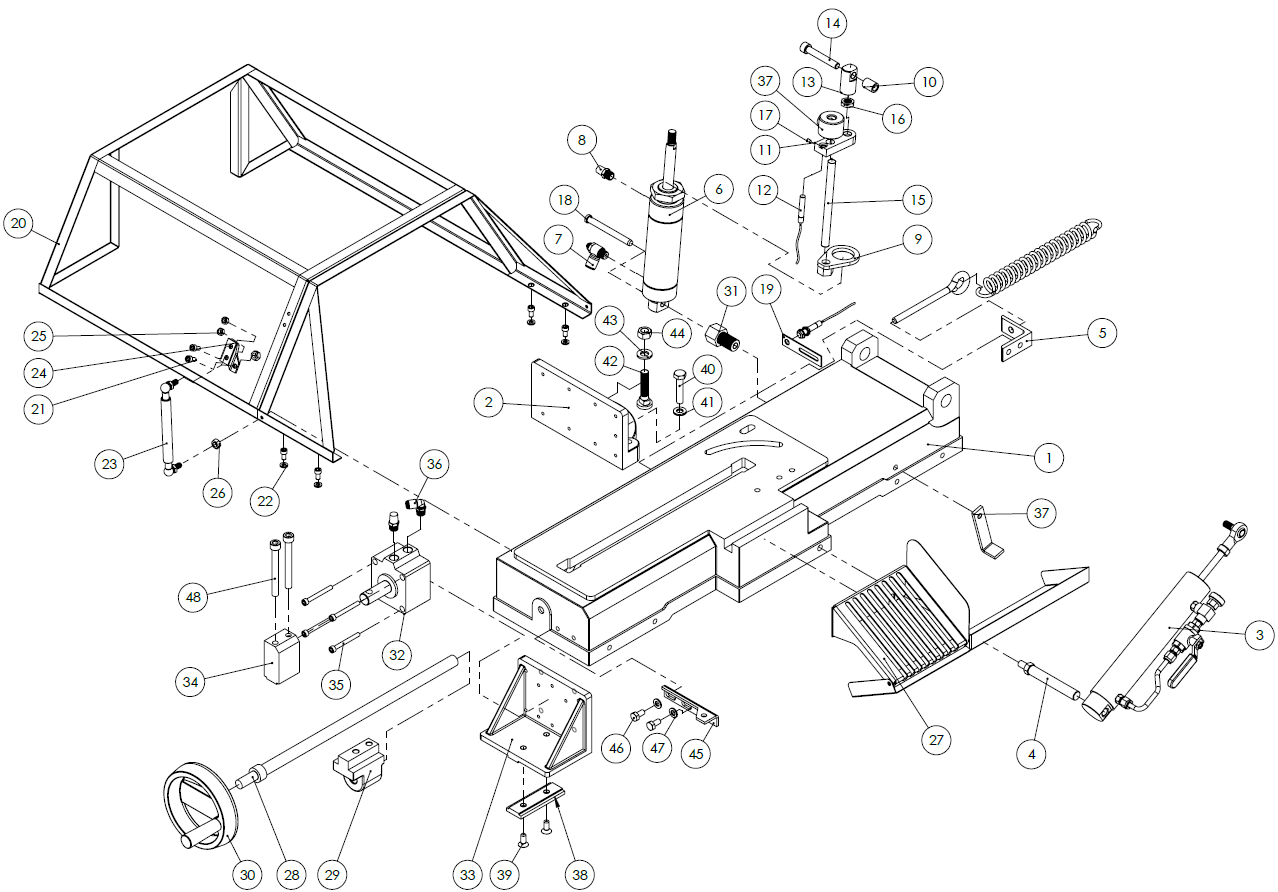

Description |
Alternative Part Number |
Quantity |
|
|---|---|---|---|
|
1 |
Base Casting (PN 38063) |
– |
1 |
|
2 |
Rear Vise Jaw (PN 38064) |
– |
1 |
|
3 |
Hydraulic Descent Cylinder (Feed) (PN 38035) |
– |
1 |
|
4 |
Feed Cylinder Axle (PN 38034) |
– |
1 |
|
5 |
Spring Handle Bracket |
– |
1 |
|
6 |
Lift Cylinder (PN 34928) |
– |
1 |
|
7 |
3/8 in. - 1/4 in. NPT Flow-Control Elbow (PN 38099) |
– |
1 |
|
8 |
1/4 in. NPT Muffler (PN 38098) |
– |
2 |
|
9 |
Lift Cylinder Stop Base (PN 38058) |
– |
1 |
|
10 |
Top Spacer Pivot — Lift Cylinder (PN 38055) |
– |
1 |
|
11 |
Lift Cylinder Stop (PN 38056) |
– |
1 |
|
12 |
Proximity Sensor (PN 38065) |
– |
2 |
|
13 |
Clevis Lift Cylinder (PN 38054) |
– |
1 |
|
14 |
Screw, Socket Head Cap, M10 × 1.5 - 65 mm (PN 36010) |
1 |
|
|
15 |
M12 × 3 - 150 mm Height Adjustment Rod (PN 38059) |
– |
1 |
|
16 |
12 mm Lift Cylinder Jam Nut (PN 38100) |
– |
1 |
|
17 |
Screw, Cone Point Set, M4 × .7 - 8, 90° |
1 |
|
|
18 |
Lift Cylinder Axle (PN 38101) |
– |
1 |
|
19 |
Proximity Bracket — Saw Down Position (PN 38061) |
– |
1 |
|
20 |
Motion Guard Lid (PN 38024) |
– |
1 |
|
21 |
Screw, Socket Head Cap, M06 × 1 - 12 mm (PN 31015) |
6 |
|
|
22 |
Washer, Flat, M6 (PN 31676) |
4 |
|
|
23 |
Gas Spring — Motion Guard (PN 38091) |
– |
1 |
|
24 |
Bracket — Nitrogen Shock (PN 38090) |
– |
1 |
|
25 |
Nut, Hex, M6 (PN 34896) |
2 |
|
|
26 |
Nut, Hex, M8 (PN 32341) |
2 |
|
|
27 |
Outfeed Slide (PN 38027) |
– |
1 |
|
28 |
Vice Lead Screw (PN 38038) |
– |
1 |
|
29 |
Vice Lead Screw Nut (PN 38039) |
– |
1 |
|
30 |
Hand Wheel (PN 38037) |
– |
1 |
|
31 |
Bottom Pivot – Lift Cylinder (PN 38057) |
– |
1 |
|
32 |
Clamp Air Cylinder (PN 39381) |
– |
1 |
|
33 |
Infeed Moveable Jaw (PN 38011) |
– |
1 |
|
34 |
AF50 Clamp Block – Saw Table (PN 38073) |
– |
1 |
|
35 |
Screw, Socket Head Cap, M06 x 1 - 55 mm (PN 32340) |
4 |
|
|
36 |
5/16 in. - 1/4 in. NPT Push-to-Connect Elbow (PN 38097) |
– |
1 |
|
37 |
M12 × 3 Acme Speed Nut Body (38092) |
– |
1 |
|
38 |
Clamp Jaw T-Nut |
– |
1 |
|
39 |
Screw, Socket Head Countersunk, M8 × 1.25 - 20 mm (PN 52222) |
2 |
|
|
40 |
Screw, Hex Head Cap, M10 × 1.5 - 50 mm |
1 |
|
|
41 |
Washer, Flat, M10 (PN 36007) |
1 |
|
|
42 |
Stud M12 — Rear Vise Jaw |
– |
1 |
|
43 |
Washer, Flat, M12 (PN 32473) |
1 |
|
|
44 |
Nut, Hex, M12 (PN 35283) |
1 |
|
|
45 |
Lower Head Bump Stop |
– |
1 |
|
46 |
Screw, Hex Head Cap, M08 x 1.25 - 16mm (PN 31681) |
2 |
|
|
47 |
Washer, Flat, M8 (PN 30531) |
2 |
|
|
48 |
Screw, Socket Head Cap, M08 × 1.25 - 90 mm |
2 |
