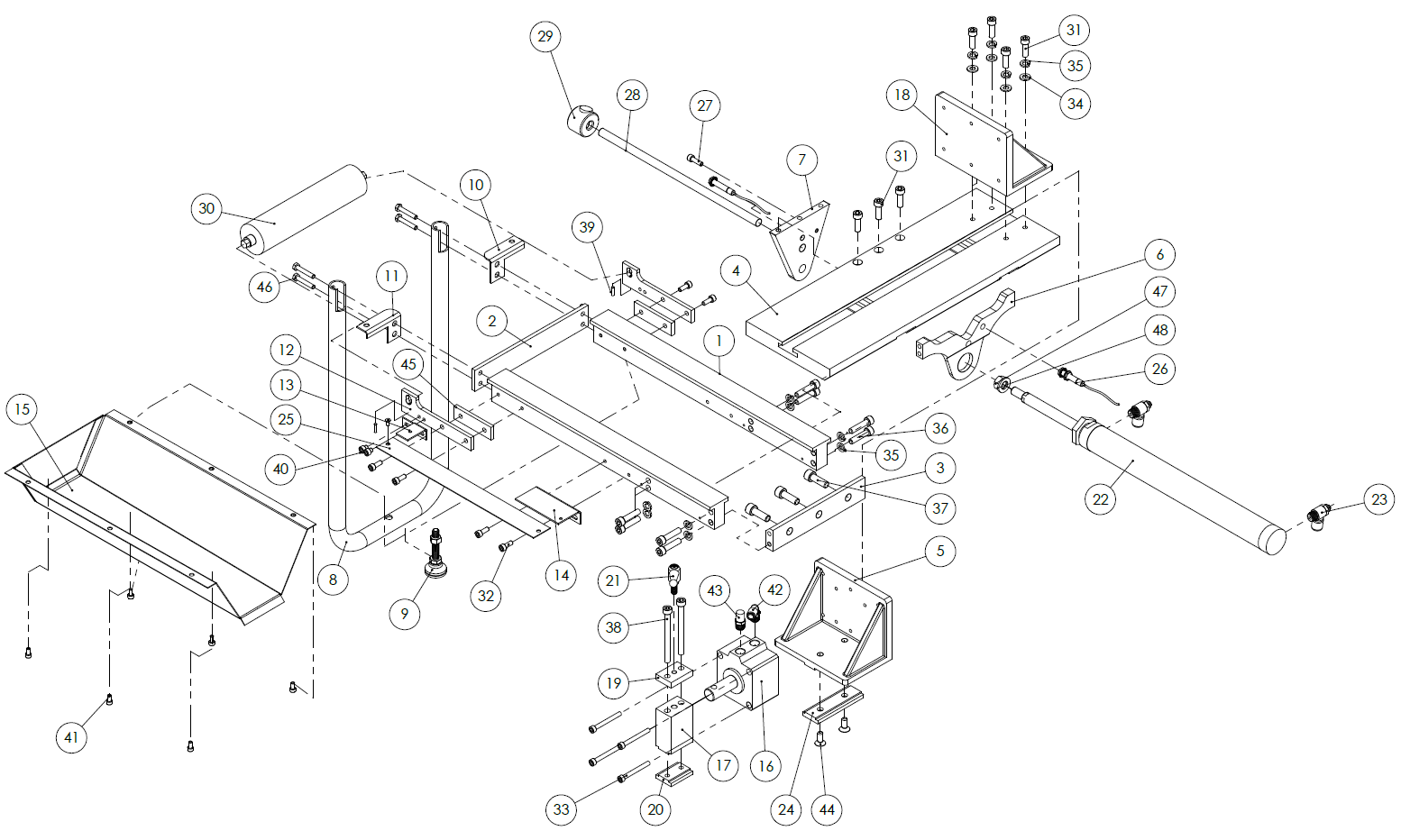

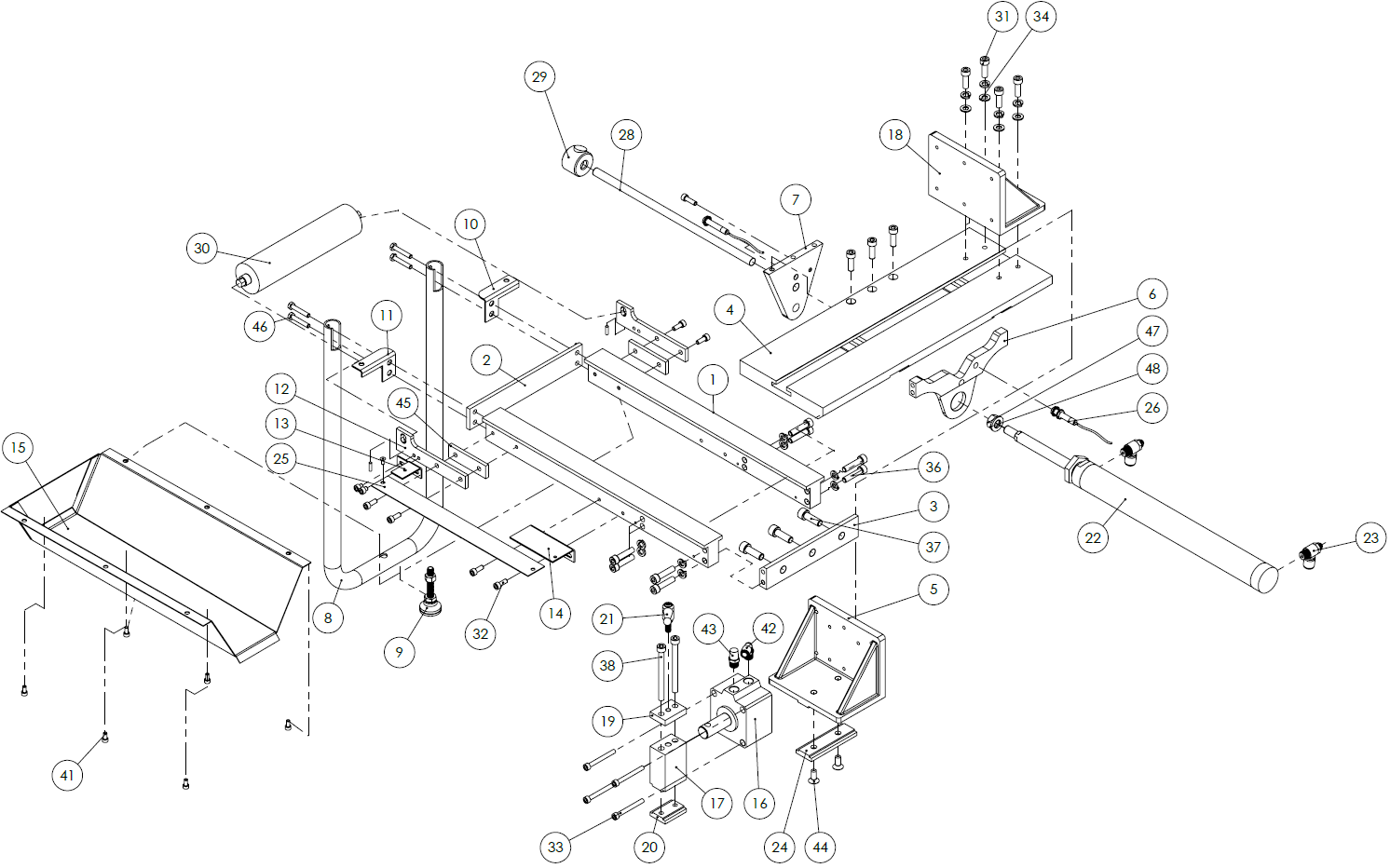

Infeed Table Exploded View - AF50

1

Infeed Guide Rail^*

–

2

2

Infeed End Plate A^*

–

1

3

Infeed End Plate B^*

–

1

4

Infeed Table^*

–

1

5

Infeed Movable Jaw^*

–

1

6

Infeed Air Cylinder Mount (PN 38007)

–

1

7

Infeed Table Bracket^*

–

1

8

Infeed Support Leg (PN 38015)

–

1

9

Infeed Leveling Foot (PN 38016)

–

1

10

Motion Guard Support — Back^*

–

1

11

Motion Guard Support — Front^*

–

1

12

Infeed Roller Bracket^*

–

2

13

Scale Mounting Bracket — Outboard^*

–

1

14

Scale Mounting Bracket — Inboard^*

–

1

15

Infeed Table Bottom Cover (PN 38020)

–

1

16

60 mm Air Cylinder (PN 38068)

–

1

17

Clamp Block — Infeed Table^*

–

1

18

Infeed Fixed Vise Jaw^*

–

1

19

Top Plate — Clamp Block^*

–

1

20

Clamp Block T-Nut^*

–

1

21

M8 × 1.25 Clamp Handle^*

–

1

22

Infeed Air Cylinder — Body (PN 38069)

–

1

23

3/8 in. - 1/4 in. NPT Flow-Control Elbow^*

–

2

24

Clamp Jaw T-Nut^*

–

1

25

Stainless Scale^*

–

1

26

Proximity Sensor (PN 38065)

–

2

27

Screw, Socket Head Cap, M06 × 1 - 20 mm (PN 53148)

McMaster-Carr: 91290A326

1

28

M12 × 3 - 330 mm Acme Length Adjustment Screw (PN 38093)

–

1

29

M12 × 3 Acme Speed Nut Body (38092)

–

1

30

Roller — Infeed Table^*

–

1

31

Screw, Socket Head Cap, M08 × 1.25 - 25 mm

McMaster-Carr: 91290A432

7

32

Screw, Socket Head Cap, M06 × 1 - 16 mm (PN 50710)

McMaster-Carr: 91290A321

6

33

Screw, Socket Head Cap, M06 × 1 - 55 mm (PN 32340)

McMaster-Carr: 91290A342

4

34

Washer, Flat, M8 (PN 30531)

McMaster-Carr: 91166A270

4

35

Washer, Split Lock, M8 (PN 32339)

McMaster-Carr: 93837A230

12

36

Screw, Socket Head Cap, M08 × 1.25 - 35 mm (PN 30529)

McMaster-Carr: 91290A438

8

37

Screw, Socket Head Cap, M10 × 1.5 - 30 mm (PN 31894)

McMaster-Carr: 91290A522

3

38

Screw, Socket Head Cap, M08 × 1.25 - 90 mm

McMaster-Carr: 91290A466

2

39

Screw, Cone Point Set, M4 × 0.7 - 16 , 90°

McMaster-Carr: 91210A117

3

40

Screw, Socket Head Cap, M06 × 1 - 6 mm

McMaster-Carr: 91290A310

2

41

Screw, Socket Head Cap, M05 × 0.8 - 10 mm (PN 51878)

McMaster-Carr: 91290A224

6

42

5/16 in. - 1/4 in. NPT Push-to-Connect Elbow (PN 38097)

–

1

43

1/4 in. NPT Muffler (PN 38098)

–

1

44

Screw, Socket Head Countersunk, M8 × 1.25 - 20 mm (PN 52222)

McMaster-Carr: 91294A284

2

45

Infeed Roller Spacer Plate^*

–

2

46

Screw, Hex Head Cap, M06 ×1 - 35 mm (PN 39249)

McMaster-Carr: 91310A341

4

47

Nut, Hex, M12 (PN 35283)

McMaster-Carr: 90591A181

1

48

Washer, Flat, M12 (PN 32473)

McMaster-Carr: 91166A290

1
