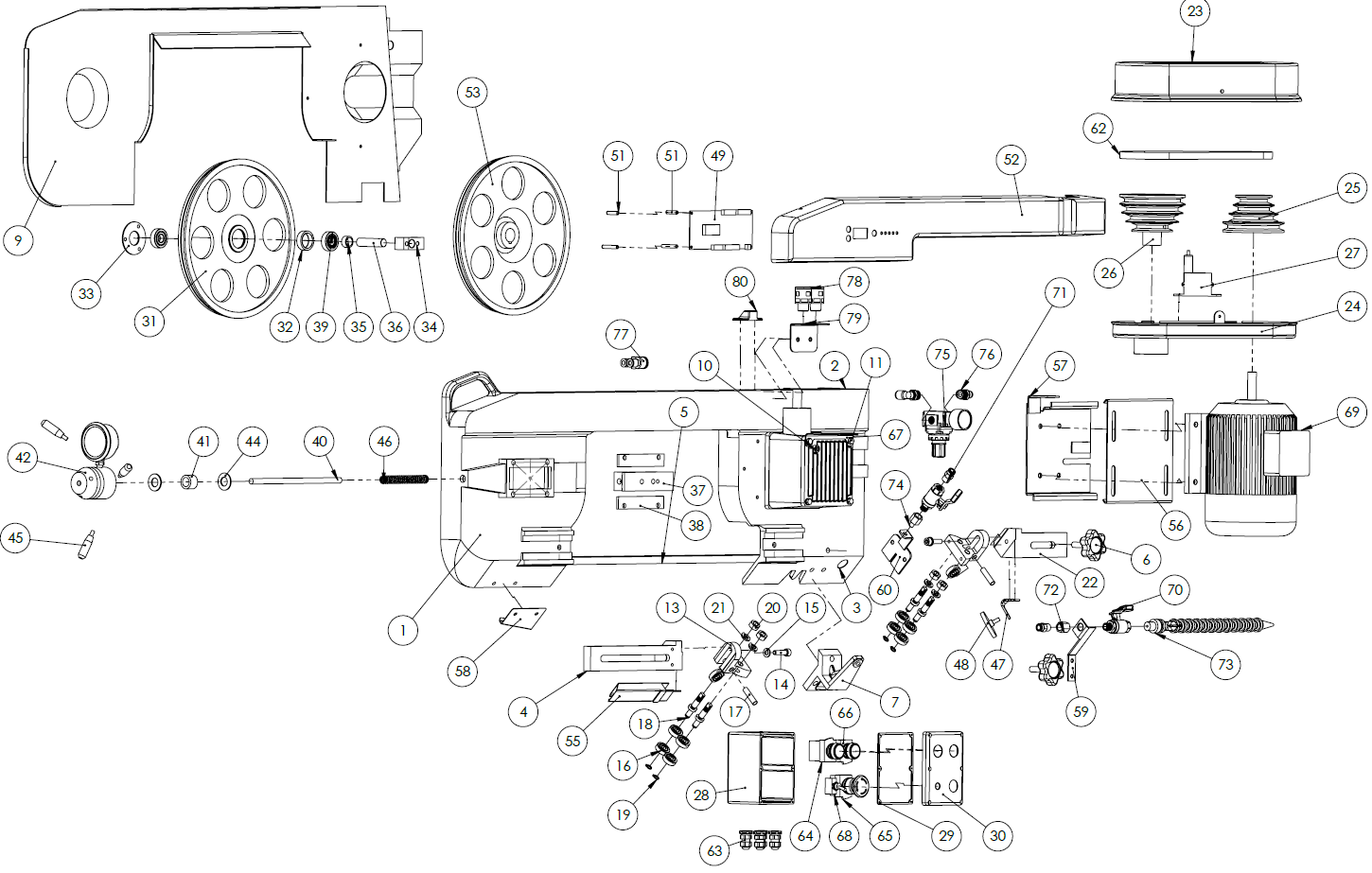

Head Casting Exploded View - AF50

1

Saw Head Casting (PN 38049)

–

1

2

Rear Pivot Casting (PN 38050)

–

1

3

Saw Head Pivot Rod (PN 38043)

–

1

4

Front Blade Guide (PN 38048)

–

1

5

Saw Blade Section

–

1

6

Blade Guide Knob (PN 38051)

–

2

7

Hydraulic Pivot Arm Casting (PN 38052)

–

1

8

Blade Cover (PN 38103)

–

1

9

M8 × 10 Vent Screw (PN 38105)

McMaster-Carr: 93235A351

1

10

Screw, Hex Head Cap, M06 × 1 - 20 mm

McMaster-Carr: 96364A201

4

11

Washer, Flat, M6 (PN 31676)

McMaster-Carr: 91455A120

4

12

Blade Guide Head (PN 38106)

–

2

13

Screw, Socket Head Cap, M08 × 1.25 - 30 mm

McMaster-Carr: 90348A036

2

14

Washer, Flat, M8 (PN 30531)

McMaster-Carr: 91166A270

2

15

Blade Guide Bearing (PN 38107)

–

10

16

Axle – Blade Bearing (PN 38108)

–

2

17

Blade Guide Cam (PN 38109)

–

4

18

Snap Ring (PN 38110)

McMaster-Carr: 98541A116

4

19

Nut, Hex, M10 (PN 31673)

McMaster-Carr: 90695A041

4

20

Washer, Split Lock, M10 (PN 31684)

McMaster-Carr: 91202A242

4

21

Rear Blade Guide (PN 38047)

–

1

22

Belt Cover Assembly (PN 38045)

• Belt Cover Top

–

1

23

• Belt Cover Bottom

–

1

24

Motor Pulley (PN 38130)

–

1

25

Drive Wheel Pulley (PN 38131)

–

1

26

Pulley Door Switch (PN 38081)

–

1

27

(Control Box Assembly (PN 38132))

• Control Box

–

–

1

28

• Control Box Gasket

–

1

29

• Control Box Top

–

1

30

Blade Wheel (PN 38112)

^*Sold as PN 51806 (Wheel Assembly includes #31-36)

–

1

31

Bearing Spacer (PN 38118)

–

1

32

Blade Wheel Bearing Cover (PN 38113)

–

1

33

Wheel Axle Mount (PN 38114)

–

1

34

Axle Spacer (PN 38116)

–

1

35

Blade Wheel Axle (PN 38117)

–

1

36

Blade Wheel Sliding Mount (PN 38119)

–

1

37

Wheel Adjustment Guide (PN 38115)

–

2

38

Bearing (PN 38120)

–

2

39

Tension Rod (PN 38121)

–

1

40

Spacer (Pressure Gauge) (PN 38122)

–

1

41

Tension Handle Hub (PN 38123)

–

1

42

Pressure Gauge (PN 38124)

–

1

43

Belleville Washer 16 mm Shaft Diameter, 16.3 mm ID, 31.5 mm OD, 2 mm Thick (PN 38136)

–

2

44

Tension Handles (PN 38145)

–

3

45

Blade Tension Spring (PN 38149)

–

1

46

Angled Brush Bracket (PN 38032)

–

1

47

Blade Brush (PN 38033)

–

1

48

Control Board (PN 34924)

–

1

49

Control Board Long Spacer (PN 38126)

–

2

50

Control Board Short Spacer (PN 38127)

–

2

51

Molded Saw Cover (PN 35704)

–

1

52

Lower Blade Guide Wheel (PN 38143)

–

1

53

Upper Blade Guard (PN 38146)

–

1

54

Lower Motor Mount (PN 38147)

–

1

55

Upper Motor Mount (PN 38148)

–

1

56

Drip Guard (PN 38076)

–

1

57

Upper Coolant Bracket (PN 38150)

–

1

58

Lower Coolant Bracket (PN 39335)

–

1

59

Motor Belt (PN 38046)

–

1

60

Cord Grip, M16 × 1.5 (PN 31376)

–

4

61

Pushbutton, 22 mm, Green (PN 30463)

–

1

62

Emergency Stop Switch (PN 30462)

–

1

63

Pushbutton, 22 mm, Yellow (PN 38088)

–

1

64

Bracket – Clamp Pressure Regulator (PN 38066)

–

1

65

Coolant Switch (PN 38085)

–

1

66

AF50 Motor (PN 38084)

–

1

67

Ball Valve, 1/4 in. NPT Male and 1/4 in. NPT Female (PN 39352)

–

2

68

Push-to-Connect, 8 mm OD to 1/4 in. Male NPT (PN 39353)

–

2

69

Straight 1/4 in. Female Coupler (PN 39354)

–

1

70

1/4 in. Coolant Hose (PN 32833)

–

1

71

Reducer, 1/4 in. Female to M8 x 1.25 in. (PN 39355)

–

1

72

Pressure Regulator, 1/4 n. NPT × 1/4 in. NPT, 1/8 in. NPT Gauge Port, 7-125 psi, 150 psi (PN 39356)

–

1

73

3/8 in. tube OD to 3/8 in. NPT (PN 39349)

–

2

74

Push-to-Connect, 12 mm to 8 mm Y Reducer (PN 39357)

–

1

75

Flexible Plastic Conduit End (PN 39382)

–

2

76

Saw Head Conduit Mounting Bracket (PN 39383)

–

1

77

Top Pivot Mount – Lift Cylinder (PN 38060)

–

1

78

Gearbox (PN 51101)

–

1
