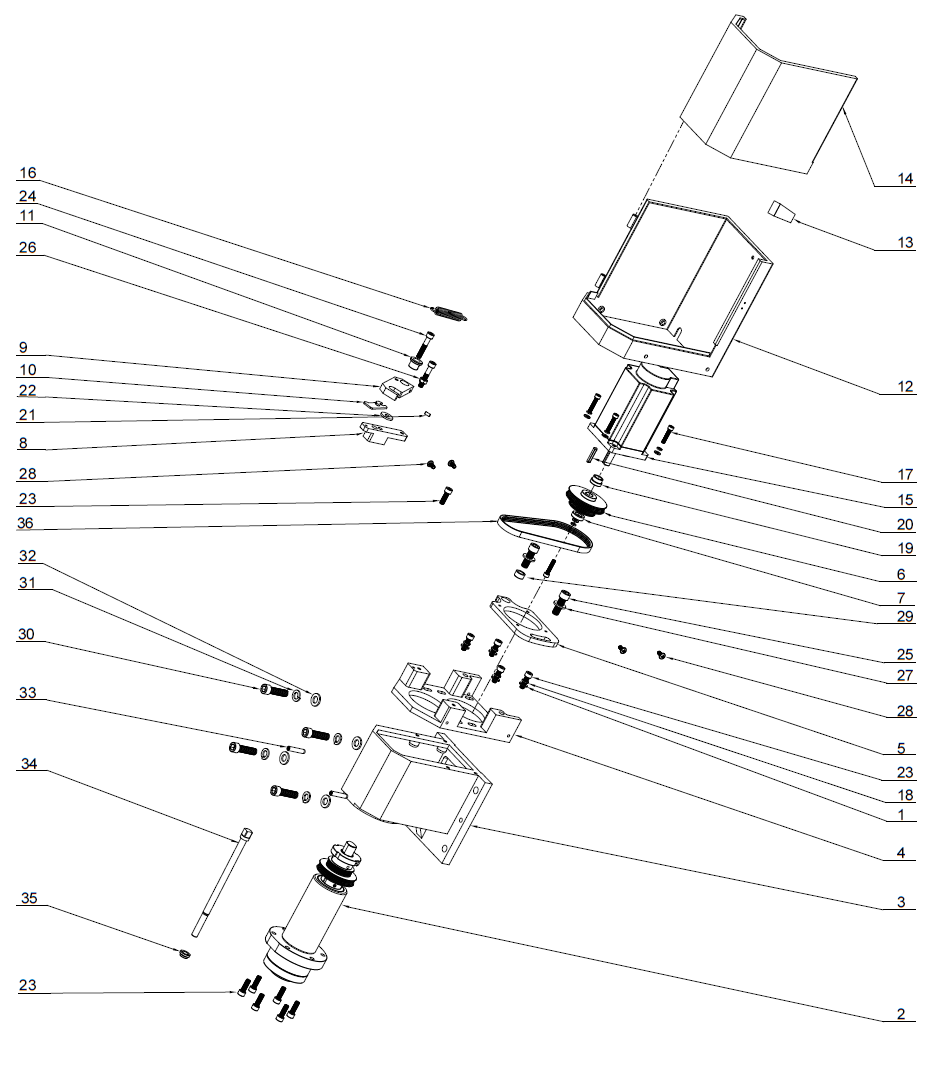

Spindle Head - PCNC 440

1

M8 Flat Washer

McMaster-Carr: 91166A270

2

PCNC 440 Spindle Cartridge (PN 33163)

–

3

Spindle Head^*

–

4

Spindle Motor Mount^*

–

5

Motor Pivot Plate^*

–

6

Spindle Motor Pulley (PN 35744)

–

7

Pulley Washer^*

–

8

Spindle Lock Block (PN 35746)

–

9

Spindle Lock, PCNC 440 (PN 35747)

–

10

Door Jamb^*

–

11

Jamb Bushing^*

–

12

Spindle Motor Cover (PN 35750)

–

13

Spindle Cover Latch (PN 37312)

–

14

Motor Cover Door (PN 35751)

–

15

Spindle Motor (PN 35422)

–

16

Spindle Lock Spring^*

–

17

Screw, Socket Head Cap, M6 × 30 mm

McMaster-Carr: 91290A332

18

Lock Washer

McMaster-Carr: 91169A180

19

Spindle Motor Pulley Bushing (PN 35756)

–

20

Spindle Motor Key^*

–

21

Dowel, M5 × 10 mm^*

–

22

Plastic Washer^*

–

23

Screw, Socket Head Cap, M8 × 25 mm

McMaster-Carr: 91290A432

24

Screw, Socket Head Cap, M8 × 45 mm

McMaster-Carr: 91290A446

25

Screw, Socket Head Cap, M12 × 1.75 × 35

McMaster-Carr: 91290A620

26

Nut, Hex, M8

McMaster-Carr: 90591A161

27

Washer, Flat, M12

McMaster-Carr: 91166A290

28

Screw, Phillips Head Machine, M6 × 12 mm

McMaster-Carr: 92005A422

29

Spindle Motor Plate Bushing^*

–

30

Screw, Socket Head Cap, M12 × 45 mm

McMaster-Carr: 91290A624

31

Washer, Split Lock, M12

McMaster-Carr: 91202A246

32

Washer, Flat, M12

McMaster-Carr: 91166A290

33

Pull Dowel, M8 × 40 mm^*

–

34

Drawbar for PCNC 440 (PN 33014)

–

35

Drawbar Bushing (PN 33168)

–

36

Belt: PCNC 440 Spindle (PN 35799)

–
