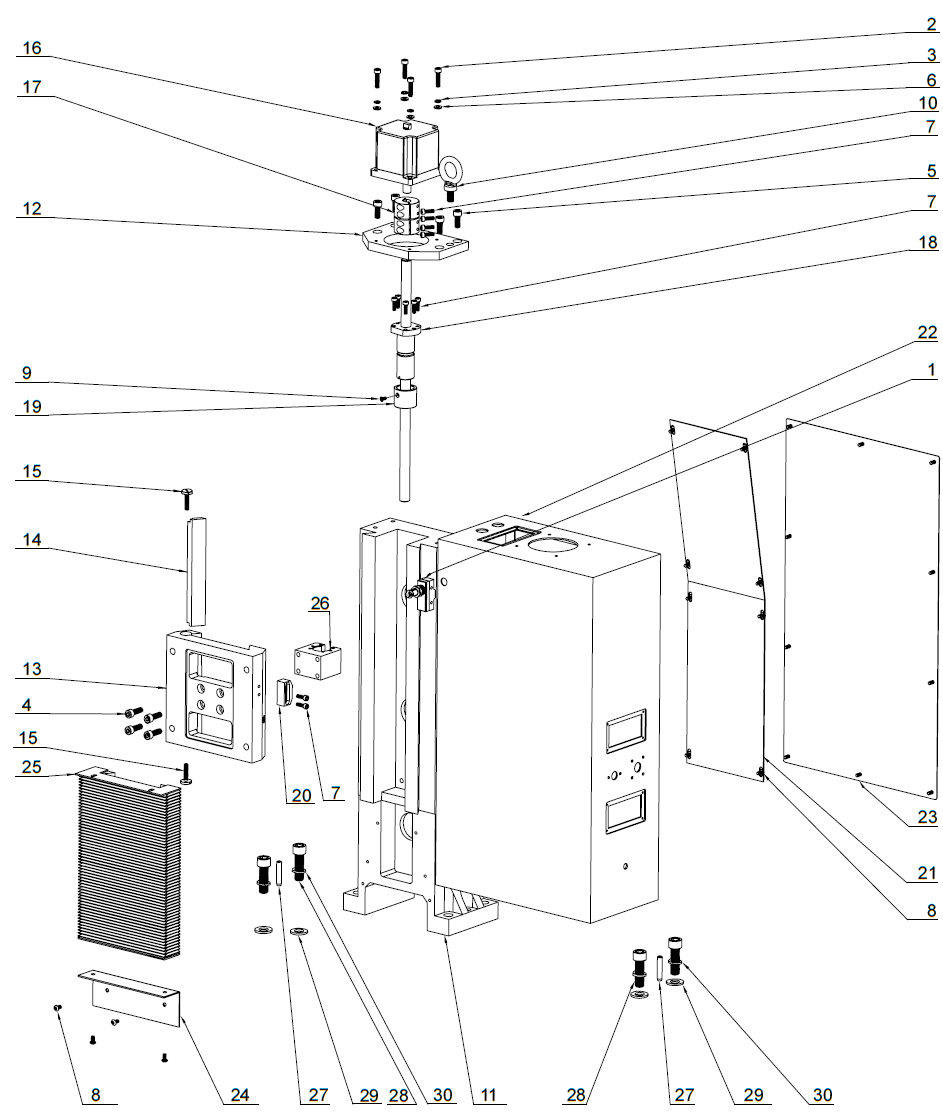

Z-Axis Column - PCNC 440

1

X-/Z-Axis Limit Switch (PN 31860)

–

2

Screw, Socket Head Cap, M6 × 1 - 25

McMaster-Carr: 91290A330

3

Lock Washer

McMaster-Carr: 91169A180

4

Screw, Socket Head Cap, M8 × 25 mm

McMaster-Carr: 91290A432

5

Screw, Socket Head Cap, M8 × 20 mm

McMaster-Carr: 91290A426

6

Washer, Flat, M6

McMaster-Carr: 91455A120

7

Screw, Socket Head Cap, M5 × 16 mm

McMaster-Carr: 91290A232

8

Screw, Button Head Cap, M5 × 0.8 - 10

McMaster-Carr: 91239A224

9

Screw, Flat Head Cap, M3 × 6 mm

McMaster-Carr: 91420A116

10

Eyebolt, M10

McMaster-Carr: 3040T140

11

Z-column^*

–

12

Z-motor Plate^*

–

13

Z-saddle^*

–

14

Z-gib^*

–

15

Gib Screw, PCNC 440 (PN 35781)

–

16

Z-Axis Stepper Motor Assembly, PCNC 440 (PN 35782)

–

17

Z-coupling 0.5 in.-16 mm (PN 35783)

–

18

Z-axis 16 mm Ballscrew and Nut (PN 35784)

–

19

Z-ballscrew Bumper (PN 35785)

–

20

Z-switch Dog^*

–

21

Z-column Cover^*

–

22

Electrical Cabinet^*

–

23

Electrical Cabinet Cover^*

–

24

Z-Bellows Bracket (PN 35790)

–

25

Z-Axis Bellows Cover, PCNC 440 (PN 35791)

–

26

Z-ballnut Bracket^*

–

27

Pull Dowel, M8 × 40 mm^*

–

28

Screw, Socket Head Cap, M14 × 45 mm

McMaster-Carr: 91290A727

29

Washer, Flat, M14

McMaster-Carr: 91455A160

30

Washer, Split Lock, M14

McMaster-Carr: 91190A580
