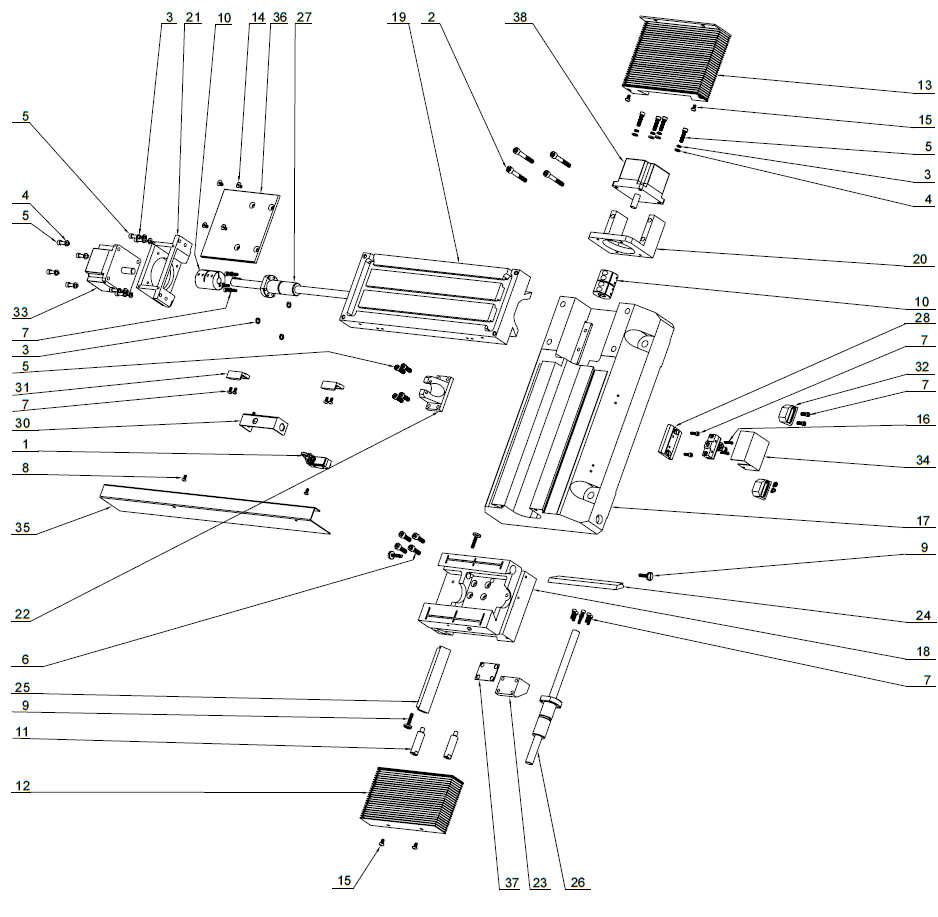

X-Y Axis - PCNC 440

1

X-/Z-Axis Limit Switch (PN 31860)

–

2

Screw, Socket Head Cap, M8 × 55 mm

McMaster-Carr: 91290A452

3

Washer, Split Lock, M6

McMaster-Carr: 91169A180

4

Washer, Flat, M6

McMaster-Carr: 91455A120

5

Screw, Socket Head Cap, M6 × 1 - 25

McMaster-Carr: 91290A330

6

Screw, Socket Head Cap, M8 × 25 mm

McMaster-Carr: 91290A432

7

Screw, Socket Head Cap, M5 × 16 mm

McMaster-Carr: 91290A232

8

Screw, Button Head Cap, M5 × 10 mm

McMaster-Carr: 91239A224

9

Gib Screw, PCNC 440 (PN 35781)

–

10

Coupling 0.5 in.-16 mm (PN 35783)

–

11

Bellows Stand Off (PN 35793)

–

12

Y-Axis Front Bellows Cover, PCNC 440 (PN 35794)

–

13

Y-Axis Rear Bellows Cover, PCNC 440 (PN 35795)

–

14

Screw, Flat Head, M6 × 10 mm

McMaster-Carr: 91294A234

15

Screw, Button Head Cap, M6 × 10 mm

McMaster-Carr: 91239A316

16

Screw, Pan Head Machine, M3 × 20 mm

McMaster-Carr: 92005A128

17

Machine Base^*

–

18

X-Y Saddle^*

–

19

Machine Table^*

–

20

Y-Motor Mount^*

–

21

X-Motor Mount (PN 35812)

–

22

X-Ball Nut Bracket^*

–

23

Y-Ball Nut Bracket^*

–

24

X-Gib (PN 35815)

–

25

Y-Gib (PN 35816)

–

26

Y-Axis 16 mm Ballscrew and Nut (PN 35818)

–

27

X-Axis 16 mm Ballscrew and Nut (PN 35817)

–

28

Y-Switch Plate (PN 35819)

–

29

Y-Switch Bracket (PN 35820)

–

30

X-Switch Bracket (PN 35821)

–

31

X-Switch Dog (PN 35822)

–

32

Y-Switch Dog (PN 35823)

–

33

X-Axis Stepper Motor Assembly, PCNC 440 (PN 52930)

–

34

Y-switch Cover (PN 35825)

–

35

Front Drip Guard (PN 35826)

–

36

Table Tray (PN 35827)

–

37

Y-Ball Nut Shim^*

–

38

Y-Axis Stepper Motor Assembly, PCNC 440 (PN 52929)

–
