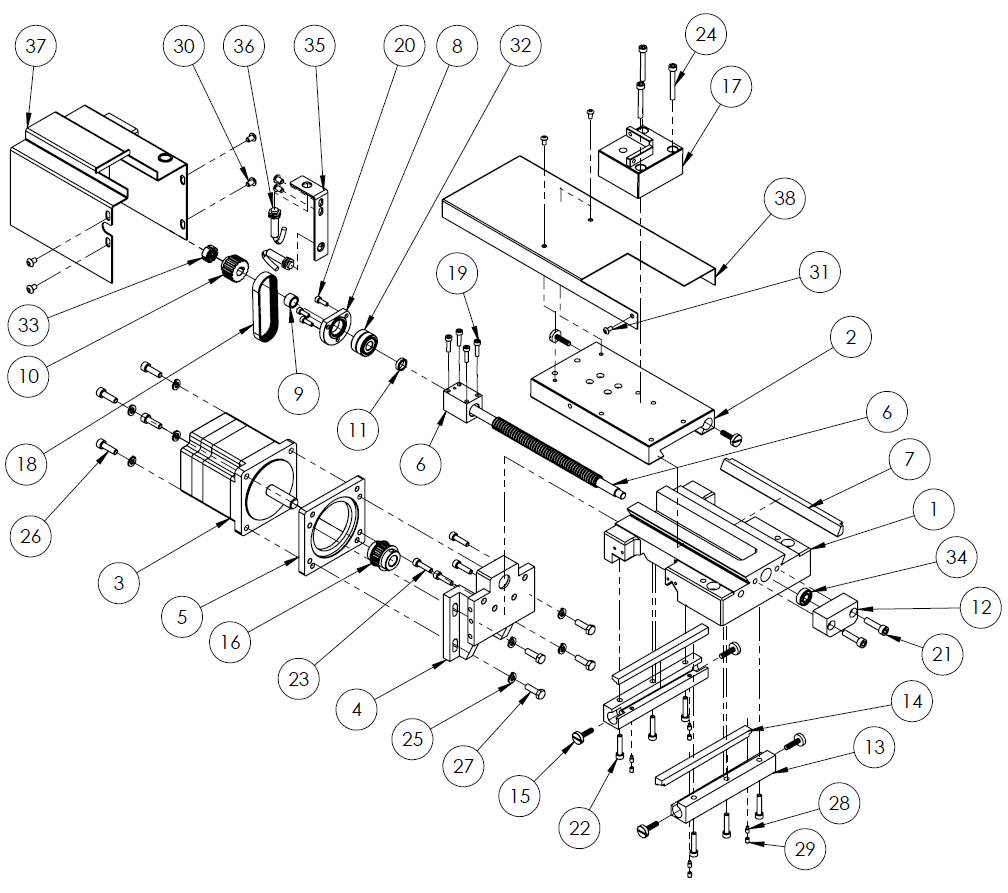

X-Axis - 8L

1

X-Axis Base^*

–

1

2

X-Axis Slide^*

–

1

3

Stepper Motor (PN 39533)

–

1

4

X-Axis Motor Mount^*

–

1

5

X-Axis Motor Adjustment Plate^*

–

1

6

Ball Screw Assembly, 14 mm OD, 4 mm Pitch, 160 mm Threaded Length (PN 53414)

X-Axis Ball Screw, 160 mm Long

X-Axis Ball Screw Nut

–

–

–

1

1

1

7

X-Axis Gib (PN 37787)

–

1

8

X-Axis Ball Screw Retainer^*

–

1

9

Spacer, 7.5 THK, 10 ID × 14.5 OD (PN 37797)

–

1

10

X-Axis Ball Screw Pulley (PN 37790)

–

1

11

Spacer, 3.5 THK, 10 ID × 14 OD (PN 37795)

–

1

12

X-Axis Ball Screw Support^*

–

1

13

Gib Retainer, Z-Axis, 8L Lathe (PN 37785)

–

2

14

Gib, Z-Axis, 8L Lathe (PN 37786)

–

2

15

Gib Adjustment Screw, Z-Axis, 8L Lathe (PN 37799)

–

6

16

X-Axis Motor Pulley (PN 37849)

–

1

17

Quick Change Tool Post Riser (PN 50603)

–

1

18

X-Axis Motor Belt, 8L (PN 53687)

–

1

19

Screw, Socket Head Cap, M4 × 0.7 - 16

McMaster-Carr: 91290A154

4

20

Screw, Socket Head Cap, M4 × 0.7 - 12

McMaster-Carr: 91290A148

3

21

Screw, Socket Head Cap, M6 × 1 - 25

McMaster-Carr: 91290A330

2

22

Screw, Socket Head Cap, M5 × 0.8 - 25

McMaster-Carr: 91290A252

6

23

Screw, Socket Head Cap, M5 × 0.8 - 20

McMaster-Carr: 91290A242

4

24

Screw, Socket Head Cap, M5 × 0.8 - 40

McMaster-Carr: 91290A196

3

25

Washer, Split Lock, M6

McMaster-Carr: 91169A180

8

26

Screw, Socket Head Cap, M6 × 1 - 20

McMaster-Carr: 91290A326

4

27

Screw, Hex Head Cap, M6 × 1 - 20

McMaster-Carr: 91280A330

4

28

Screw, Extended Tip Set, M4 × 0.7 - 8, (2.25 mm × 2.5 mm Dia Tip) Black Oxide Steel

McMaster-Carr: 92905A087

4

29

Screw, Flat Point Set, M4 × 0.7 - 6

McMaster-Carr: 93245A112

4

30

Screw, Button Head Cap, M5 × 0.8 - 8, Stainless Steel

McMaster-Carr: 92095A207

6

31

Screw, Button Head Cap, M4 × 0.7 - 8, Stainless Steel

McMaster-Carr: 92095A189

3

32

Bearing, 15 Degree Angular Contact, 7000C, 10 mm ID × 26 mm OD, 8 mm Wide, Sealed, Matched Set of 2 (PN 53685)

–

2

33

Lock Nut, M10, 8L (PN 51027)

–

1

34

Bearing, Deep Groove, 698, 8 mm × 19 mm × 6 mm (PN 51037)

–

1

35

Bracket, X-Axis Motor Cover, 8L (PN 54780)

–

1

36

N/C Inductive Proximity Sensor (PN 33334)

–

2

37

X-Axis Motor Cover (PN 50522)

–

1

38

X-Axis Table Cover (PN 50523)

–

1
