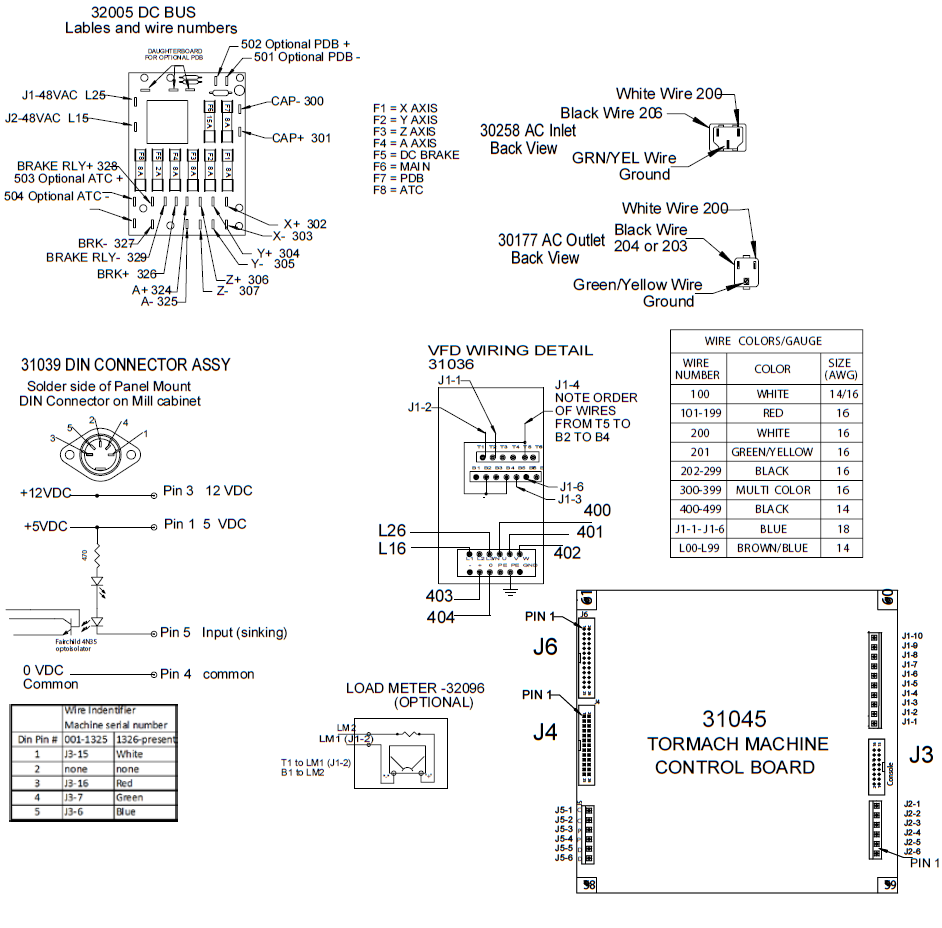

Connections - PCNC 1100

To order part numbers not listed on http://Tormach.com , email orders@tormach.com!
