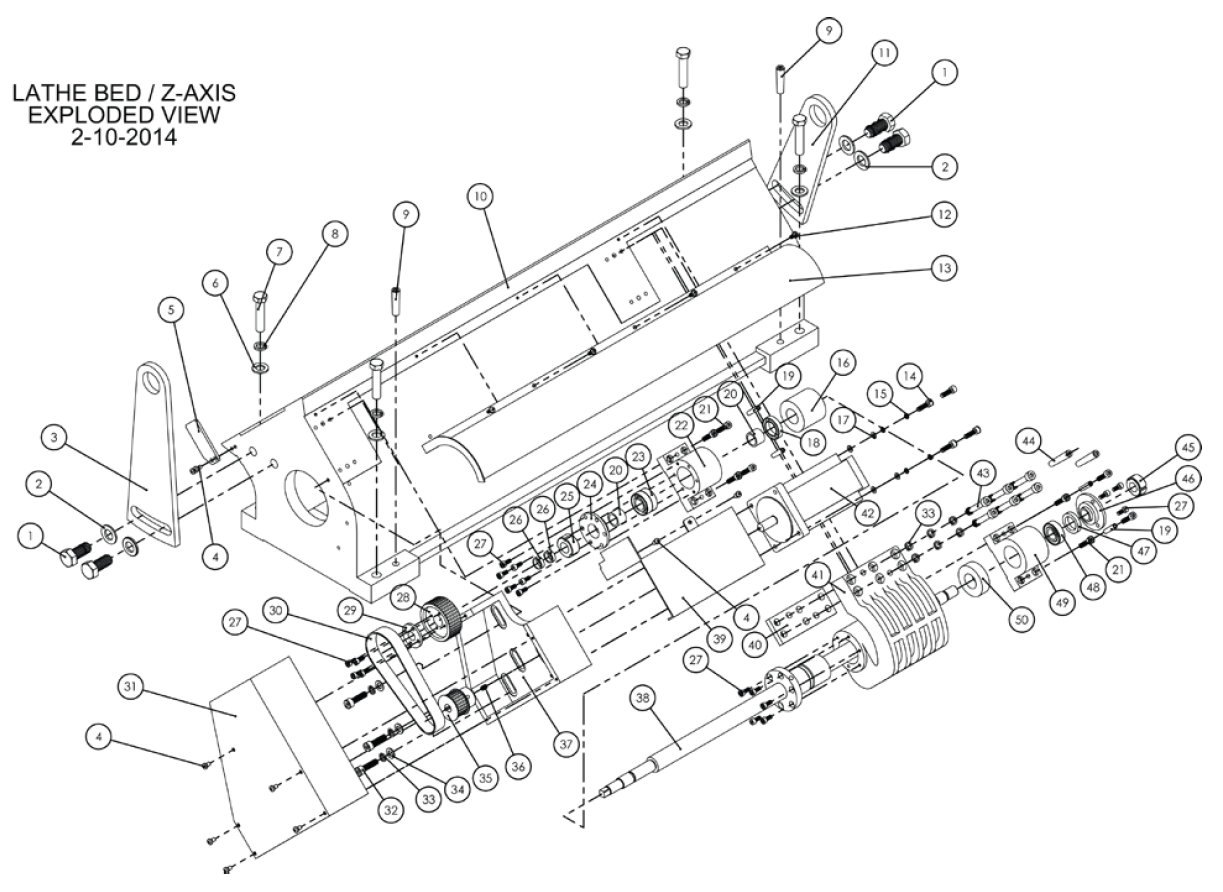

Lathe Bed Z-Axis - 15L

1

Bolt, M16 x 35

McMaster-Carr: 91280A839

2

Washer, Lock M16

McMaster-Carr: 92148A241

3

Lifting Hanger RH^*

–

4

Screw, M8 x 8

McMaster-Carr: 92095A493

5

Z Limit Switch Stop^*

–

6

Washer, Flat M12

McMaster-Carr: 93475A290

7

Bolt, M12 x 55

McMaster-Carr: 95327A684

8

Washer, Lock M12

McMaster-Carr: 92148A214

9

Pin, M10 x 45^*

–

10

Bed Casting^*

–

11

Lifting Hanger LH^*

–

12

Screw, M5 x 10

McMaster-Carr: 92095A208

13

Ballscrew Cover, Z-axis^*

–

14

Screw, M5 x 20

McMaster-Carr: 91290A370

15

Washer, Lock M5

McMaster-Carr: 92148A170

16

Bumper, Z-axis RH (PN 34170)

–

17

Washer, Flat M5

McMaster-Carr: 93475A240

18

Seal, Z-Axis Ballscrew (PN 34172)

–

19

Pin, M6 x 30 (PN 34173)

–

20

Spacer, Z Screw Bearing^*

–

21

Screw, M6 x 25

McMaster-Carr: 96144A125

22

Bearing Mount Block RH (PN 34176)

–

23

Bearing, Z Ballscrew Mount RH (PN 34177)

ABEC Identification: 7003B/DB/P5 (1 unit includes a bearing pair)

24

Bearing Cap^*

–

25

Spanner Nut, M17 x 1 (PN 34179)

–

26

Spacer, Z Pulley^*

–

27

Screw, M5 x 12

McMaster-Carr: 91290A228

28

Pulley, Z Ball Screw^*

–

29

Pulley Mount Flange Z Screw^*

–

30

Belt, Z-axis Drive (PN 34184)

–

31

Belt Cover, Z-axis (PN 34185)

–

32

Screw, M8 x 30

McMaster-Carr: 96144A219

33

Washer, Lock M8

McMaster-Carr: 92148A200

34

Washer, Flat M8

McMaster-Carr: 93475A270

35

Pulley, Z Motor (PN 34189)

–

36

Set Screw, M6 x 10

McMaster-Carr: 91390A128

37

Z Motor Mount^*

–

38

Ball Screw, Z-axis Lathe (PN 33224)

–

39

Motor Cover^*

–

40

Mount Pad, Z Carrier^*

–

41

Carrier, Z Ballscrew^*

–

42

Z-axis Stepper Motor (PN 33066)

–

43

Screw, M8 x 50

McMaster-Carr: 96144A231

44

Pin, M8 x 65^*

–

45

Spanner Nut, M15 x 1 (PN 34197)

–

46

Bearing Cap (PN 34198)

–

47

Felt Washer^*

–

48

Bearing, Z Ballscrew Mount LH (PN 34200)

ABEC Identification: 6003-22

49

Bearing Mount Block LH (PN 34201)

–

50

Bumper, Z-axis LH (PN 34202)

–
