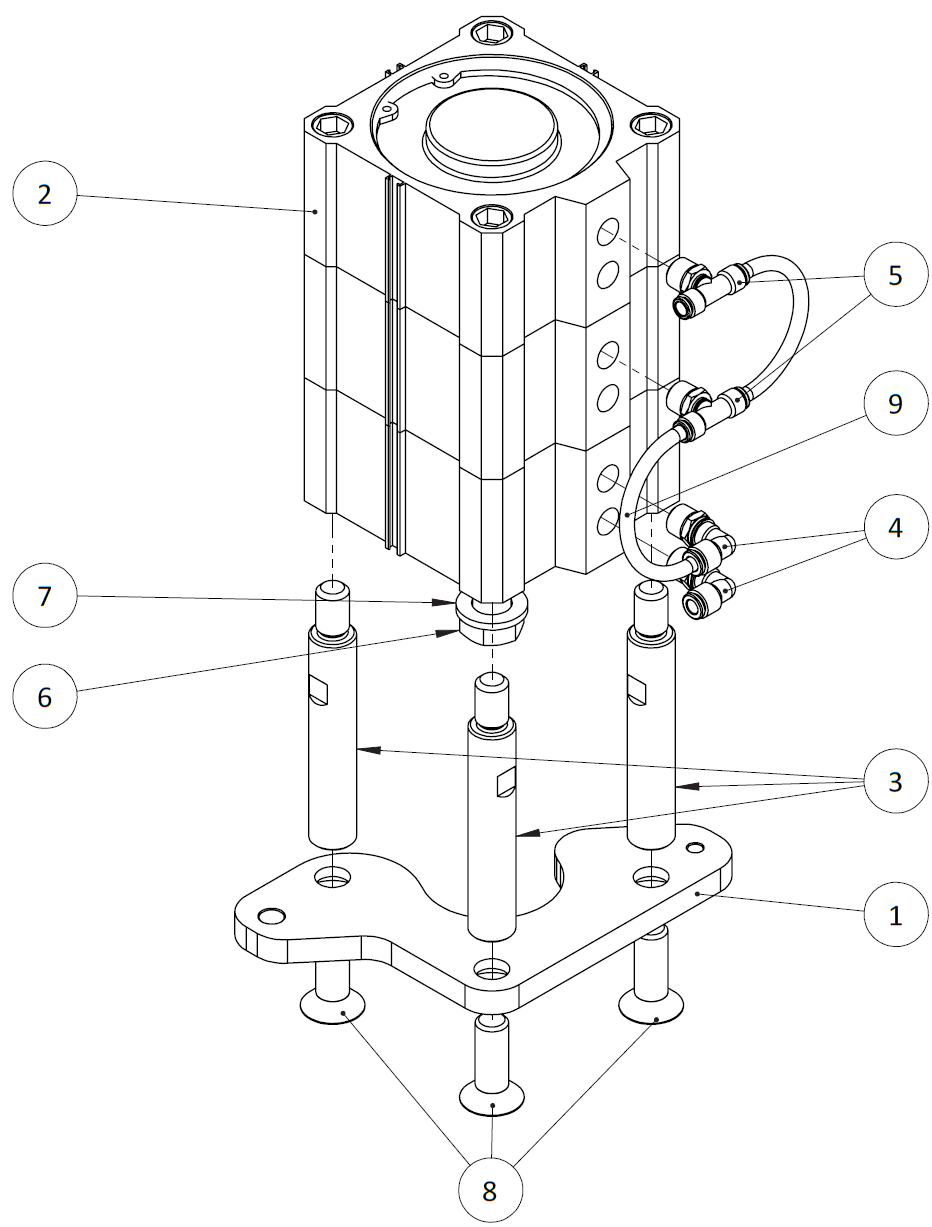

TTS Power Drawbar Cylinder - 1100M

1

Power Drawbar Mount Plate (PN 37747)

–

1

2

Pneumatic Cylinder, Double Acting, 100 mm Bore, 12 mm Stroke, 3-Stack (PN 31313)

–

1

3

Power Drawbar Standoff, M14 × 2 (PN 38282)

–

3

4

Fitting, Elbow, 1/4 NPT to 1/4 in. PTC (Male) (PN 31324)

–

2

5

Fitting, Branch Tee, 1/4 NPT to 1/4 OD Tube (PN 31325)

–

2

6

Screw, Hex Head Cap, M16 × 1.5 - 25

McMaster-Carr: 91180A913

1

7

Washer, Flat, M16

McMaster-Carr: 91166A310

1

8

Screw, Flat-Head Cap, M14 × 2 - 40

McMaster-Carr: 91294A414

3

9

Tube, 1/4 in. OD, Plastic (Red) - 125 mm (PN 38408)

–

2
