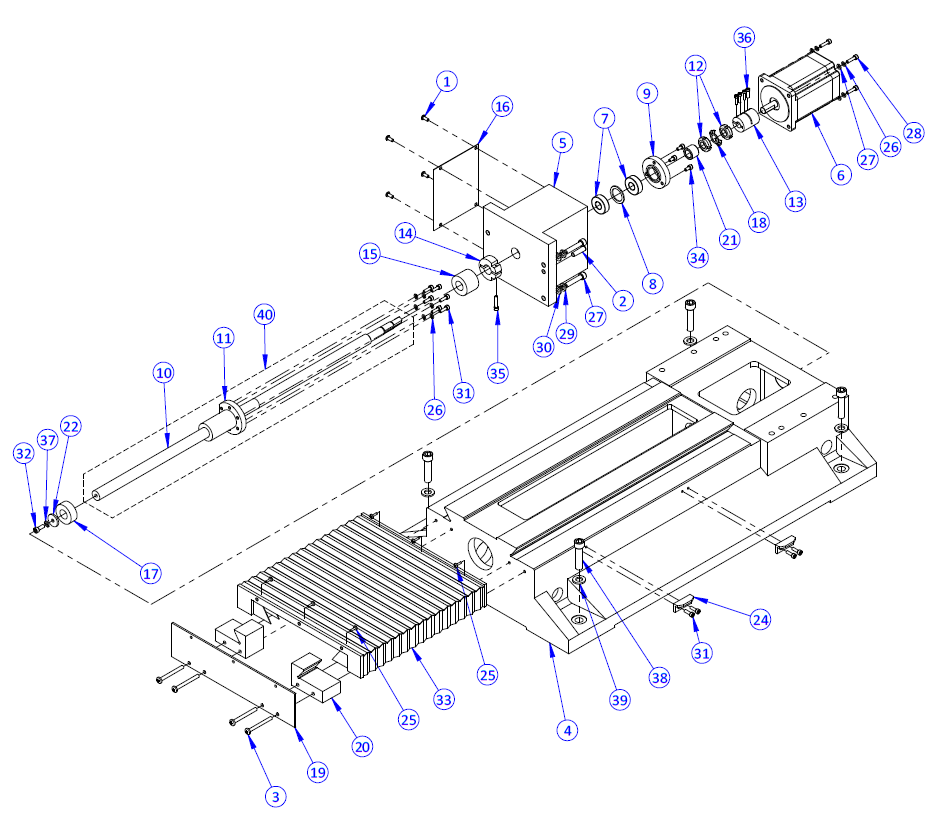

Y-Axis Assembly - 1100M

1

Screw, Button Head Cap, M5 × 0.8 - 12, Stainless Steel (PN 37716)

McMaster-Carr: 92095A210

4

2

Taper Pin, 8 mm × 30 mm (PN 30428)

–

2

3

Screw, Pan Head Machine, M6 × 1 - 40 (PN 30405)

McMaster-Carr: 92005A442

4

4

1100 Machine Base (PN 30399)

–

1

5

Y-Axis Motor Mount (PN 30445)

–

1

6

X-/Y-Axis Motor, 1100 (PN 32001)

–

1

7

Bearing, Angular Contact, 7202B (P6), 15 mm × 35 mm × 11 mm (PN 30373)

–

2

8

X-Y Ball Screw Bearing Spacer (PN 30429)

–

1

9

X-Y Ball Screw Bearing Cover Plate (PN 30423)

–

1

10

1100 Y-Axis Ball Screw (PN 37951)¹

–

1

11

1100 X-Y Ball Nut (PN 37952)¹

–

1

12

Bearing Nut, M14 × 1.5, Tab Lock (PN 30363)

–

2

13

Ball Screw Coupler (PN 30362)

–

1

14

Ball Screw End Stop Clamp (PN 30433)

–

1

15

Y-Axis Ball Screw Back Bumper, 1100 (PN 30446)

–

1

16

Motor Mount Cover Plate (PN 30418)

–

1

17

X-/Y-Axis Ball Screw End Bumper, 1100 (PN 30400)

–

1

18

Bearing Nut Lock Washer, M14 (PN 30364)

–

1

19

Y-Axis Cover Plate (PN 30406)

–

1

20

Y-Axis Bellows Spacer (PN 30404)

–

2

21

X-Y Bearing Nut Sleeve (PN 30444)

–

1

22

X-Y End Bumper Washer (PN 30401)

–

1

23

Fitting, Oil, Tee (PN 30398)

–

1

24

Y-Axis Limit Switch Flag (PN 30450)

–

2

25

Screw, Pan Head Machine, M4 × 0.7 - 12 (PN 30403)

McMaster-Carr: 92005A222

6

26

Washer, Split Lock, M5 (PN 31572)

McMaster-Carr: 91111A124

10

27

Washer, Flat, M5 (PN 39305)

McMaster-Carr: 93475A240

8

28

Screw, Socket Head Cap, M5 × 0.8 - 20 (PN 30357)

McMaster-Carr: 91290A242

4

29

Washer, Split Lock, M8 (PN 32339)

McMaster-Carr: 91202A238

4

30

Washer, Flat, M8 (PN 30531)

McMaster-Carr: 91166A270

4

31

Screw, Socket Head Cap, M5 × 0.8 - 16 (PN 30546)

McMaster-Carr: 91290A232

10

32

Screw, Socket Head Cap, M6 × 1 - 16 (PN 33117)

McMaster-Carr: 91290A321

2

33

Y-Axis Way Cover, 1100 (PN 30578)

–

1

34

Screw, Socket Head Cap, M5 × 0.8 - 10 (PN 31641)

McMaster-Carr: 91290A224

3

35

Screw, Socket Head Cap, M5 × 0.8 - 25 (PN 30530)

McMaster-Carr: 91290A252

1

36

Screw, Socket Head Cap, M4 × 0.7 - 16 (PN 37751)

McMaster-Carr: 91290A154

4

37

Washer, Split Lock, M6 (PN 31379)

McMaster-Carr: 91169A180

1

38

Screw, Socket Head Cap, M12 × 1.75 - 50 (PN 32476)

McMaster-Carr: 91290A626

4

39

Washer, Flat, M12 (PN 32473)

McMaster-Carr: 91166A290

4

40

Y-Axis Ball Screw Assembly, 1100 (PN 38800)¹

–

1
