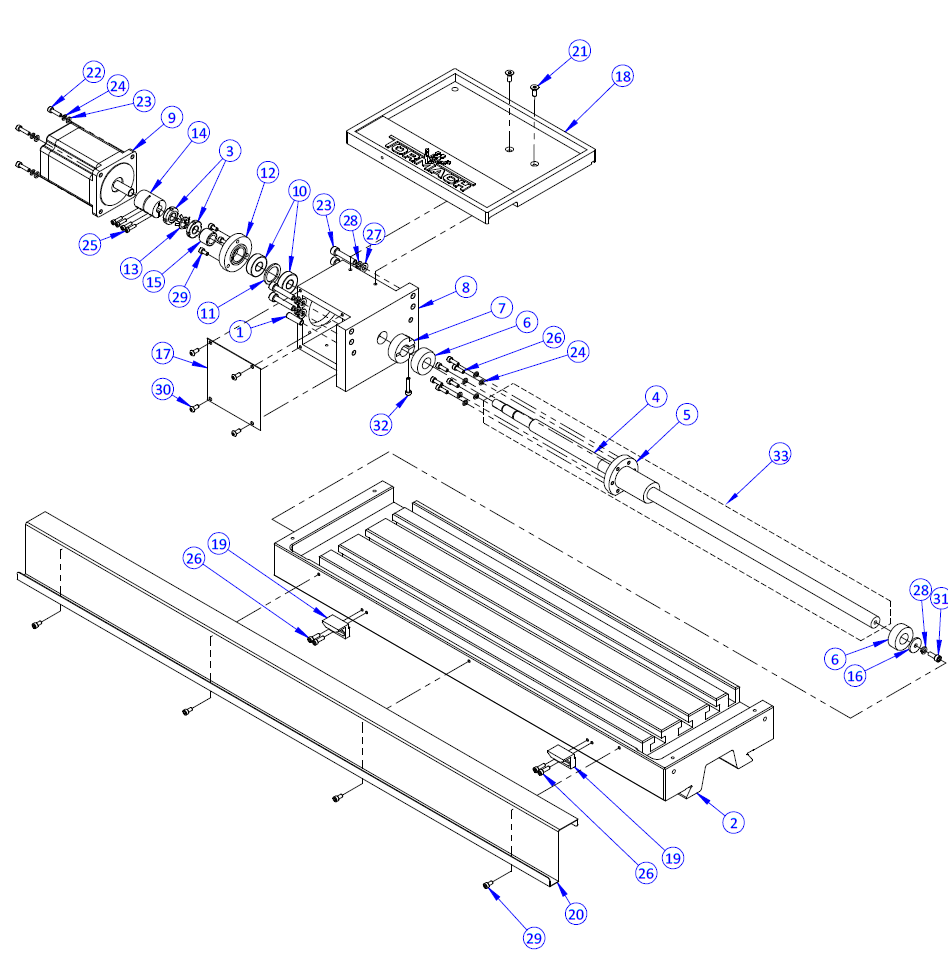

X-Axis Assembly - 1100M

1

Taper Pin, 8 mm × 30 mm (PN 30428)

–

2

2

1100 Machine Table (PN 30436)

–

1

3

Bearing Nut, M14 × 1.5, Tab Lock (PN 30363)

–

2

4

1100 X-Axis Ball Screw (PN 37953)¹

–

1

5

1100 X-Y Ball Nut (PN 37952)¹

–

1

6

X-/Y-Axis Ball Screw End Bumper, 1100 (PN 30400)

–

2

7

Ball Screw End Stop Clamp (PN 30433)

–

1

8

X-Axis Motor Mount (PN 32401)

–

1

9

X-/Y-Axis Motor, 1100 (PN 32001)

–

1

10

Bearing, Angular Contact, 7202B (P6), 15 mm × 35 mm × 11 mm (PN 30373)

–

2

11

X-Y Ball Screw Bearing Spacer (PN 30429)

–

1

12

X-Y Ball Screw Bearing Cover Plate (PN 30423)

–

1

13

Bearing Nut Lock Washer, M14 (PN 30364)

–

1

14

Ball Screw Coupler (PN 30362)

–

1

15

X-Y Bearing Nut Sleeve (PN 30444)

–

1

16

X-Y End Bumper Washer (PN 30401)

–

1

17

1100 X-Axis Motor Mount Cover Plate (PN 37954)

–

1

18

Tool Tray, 1100 (PN 31630)

–

1

19

X-Axis Limit Switch Flag (PN 31208)

–

2

20

Table Drip Guard, 1100 (PN 32753)

–

1

21

Screw, Flat Head Cap, M6 × 1 - 16 (PN 31633)

McMaster-Carr: 91294A238

2

22

Screw, Socket Head Cap, M5 × 0.8 - 20 (PN 30357)

McMaster-Carr: 91290A242

4

23

Washer, Flat, M5 (PN 39305)

McMaster-Carr: 93475A240

8

24

Washer, Split Lock, M5 (PN 31572)

McMaster-Carr: 91111A124

10

25

Screw, Socket Head Cap, M4 × 0.7 - 16 (PN 37751)

McMaster-Carr: 91290A154

4

26

Screw, Socket Head Cap, M5 × 0.8 - 16 (PN 30546)

McMaster-Carr: 91290A232

10

27

Washer, Flat, M8 (PN 30531)

McMaster-Carr: 91166A270

4

28

Washer, Split Lock, M6 (PN 31379)

McMaster-Carr: 91169A180

5

29

Screw, Socket Head Cap, M5 × 0.8 - 10 (PN 31641)

McMaster-Carr: 91290A224

7

30

Screw, Button Head Cap, M5 × 0.8 - 12, Stainless Steel (PN 37716)

McMaster-Carr: 92095A210

4

31

Screw, Socket Head Cap, M6 × 1 - 16 (PN 33117)

McMaster-Carr: 91290A321

1

32

Screw, Socket Head Cap, M5 × 0.8 - 25 (PN 30530)

McMaster-Carr: 91290A252

1

33

X-Axis Ball Screw Assembly (PN 30483)¹

–

1
