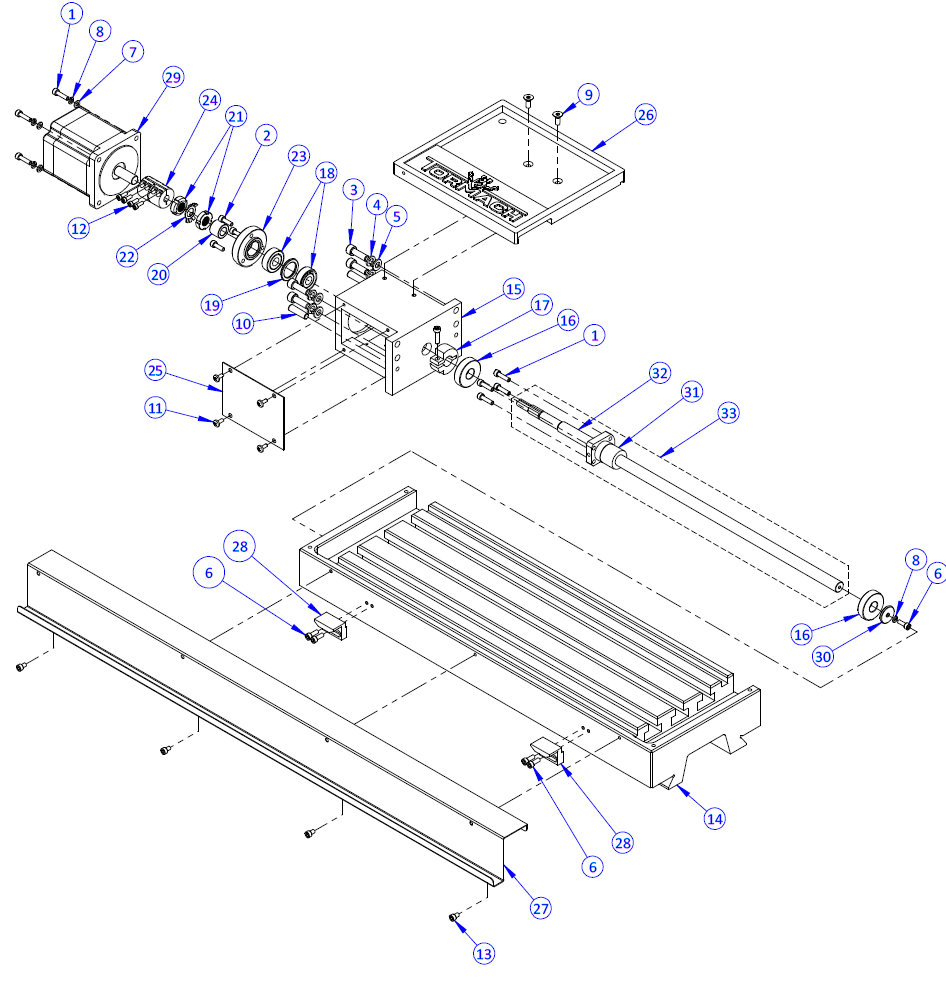

X-Axis Assembly - 770M

1

Screw, Socket Head Cap, M5 × 0.8 - 20 (PN 30357)

McMaster-Carr: 91290A242

9

2

Screw, Socket Head Cap, M5 × 0.8 - 16 (PN 30546)

McMaster-Carr: 91290A232

3

3

Screw, Socket Head Cap, M8 × 1.25 - 25 (PN 31618)

McMaster-Carr: 91290A432

4

4

Washer, Split Lock, M8 (PN 32339)

McMaster-Carr: 91202A238

4

5

Washer, Flat, M8 (PN 30531)

McMaster-Carr: 91166A270

4

6

Screw, Socket Head Cap, M5 × 0.8 - 14 (PN 31563)

McMaster-Carr: 91290A230

5

7

Washer, Flat, M5 (PN 39305)

McMaster-Carr: 93475A240

4

8

Washer, Split Lock, M5 (PN 31572)

McMaster-Carr: 91111A124

5

9

Screw, Flat Head Cap, M6 × 1 - 16 (PN 31633)

McMaster-Carr: 91294A238

2

10

Pin, Taper, 8 × 30, M5 Thread (PN 31620)

–

2

11

Screw, Pan Head Machine, M5 × 0.8 - 10 (PN 30417)

McMaster-Carr: 92000A320

4

12

Screw, Socket Head Cap, M4 × 0.7 - 12 (PN 31360)

McMaster-Carr: 91290A154

4

13

Screw, Socket Head Cap, M5 × 0.8 - 8 (PN 30844)

McMaster-Carr: 91290A224

4

14

770 Machine Table (PN 31625)

–

1

15

770 X-Axis Motor Mount (PN 31626)

–

1

16

X/Y-Axis Ball Screw End Bumper, 770 (PN 31613)

–

2

17

770 Ball Screw End Stop Clamp (PN 31614)

–

1

18

X-/Y-Axis Ball Screw Angular Contact Bearing (PN 31432)

–

2

19

770 X-Y Ball Screw Bearing Spacer (PN 31615)

–

1

20

Sleeve (PN 31537)

–

1

21

770 X and Y Ball Screw Preload Nut (PN 31616)

–

2

22

770 Tab Washer for Preload Nut (PN 31542)

–

1

23

Bearing Cap (PN 31530)

–

1

24

Ball Screw Coupler (PN 31421)

–

1

25

770 X-Y Motor Mount Cover Plate (PN 31621)

–

1

26

Tool Tray, 770 (PN 38868)

–

1

27

Table Drip Guard, 770 (PN 31420)

–

1

28

X-Axis Limit Switch Flag (PN 31208)

–

2

29

X-Axis Motor, 770M (PN 39413)

–

1

30

Washer, Flat, 5 × 25, 3 mm Thick (PN 31532)

–

1

31

770 X-Y Ball Nut (PN 38871)¹

–

1

32

770 X-Axis Ball Screw (PN 38869)¹

–

1

33

770 X-Axis Ball Screw Assembly (PN 31423)¹

–

1
