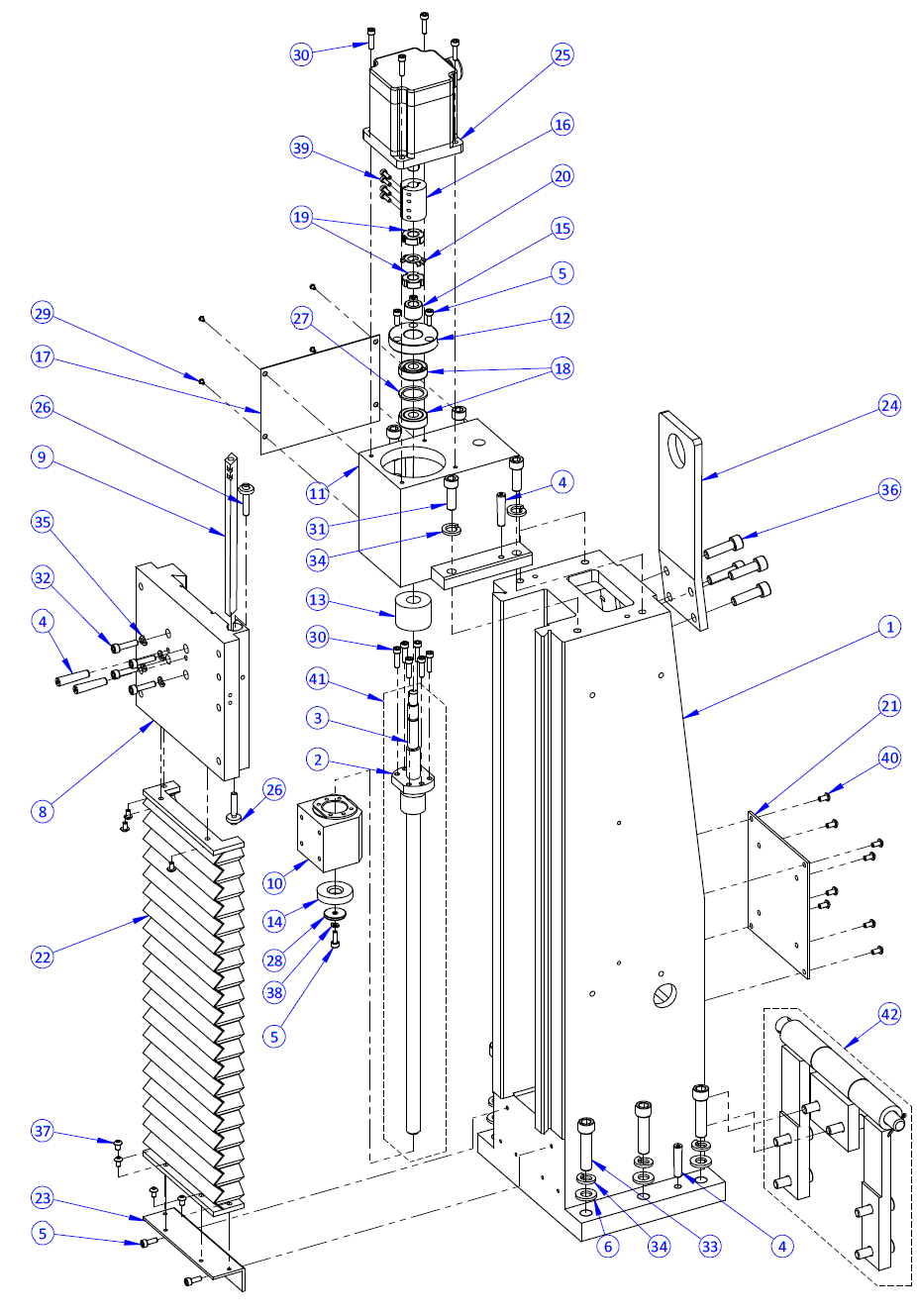

Z-Axis Assembly - 770M

1

770 Column (PN 31521)

–

1

2

770 Z-Axis Ball Nut (PN 38862)¹

–

1

3

770 Z-Axis Ball Screw (PN 38863)¹

–

1

4

Tapered Dowel Pin, 8 × 40 mm (PN 31544)

–

6

5

Screw, Socket Head Cap, M5 × 0.8 - 14 (PN 31563)

McMaster-Carr: 91290A230

6

6

Washer, Flat, M12 (PN 32473)

McMaster-Carr: 91166A290

6

7

Washer, Flat, M10 (PN 30919)

McMaster-Carr: 93475A280

6

8

Z-Axis Slide (PN 31523)

–

1

9

Z-Axis Gib (PN 31524)

–

1

10

770 Z Ball Nut Carrier (PN 38864)

–

1

11

Z-Axis Motor Base (PN 31528)

–

1

12

Bearing Cap (PN 31530)

–

1

13

Z-Axis Ball Screw Upper Bumper, 770 (PN 31531)

–

1

14

Z-Axis Ball Screw Lower Bumper, 770 (PN 31533)

–

1

15

Sleeve (PN 31537)

–

1

16

Ball Screw Coupler (PN 31421)

–

1

17

Side Mounting Plate (PN 31538)

–

1

18

X-/Y-Axis Ball Screw Angular Contact Bearing (PN 31432)

–

2

19

Z-Axis Ball Screw Preload Nut for 770 (PN 31541)

–

2

20

770 Tab Washer for Preload Nut (PN 31542)

–

1

21

Column Cover Plate (PN 31583)

–

1

22

Z-axis Way Cover (PN 31433)

–

1

23

Lower Bellows Mounting Plate (PN 31584)

–

1

24

770 Lifting Bracket (PN 31591)

–

1

25

Z-Axis Motor, 770M (PN 38403)

–

1

26

Adjustment Screw (PN 31525)

–

2

27

Bearing Spacer (PN 31529)

–

1

28

Washer, Flat, 5 × 25, 3 mm Thick (PN 31532)

–

1

29

Screw, Button Head Cap, M3 × 0.5 - 5 (PN 38737)

McMaster-Carr: 92095A177

4

30

Screw, Socket Head Cap, M5 × 0.8 - 20 (PN 30357)

McMaster-Carr: 91290A242

10

31

Screw, Socket Head Cap, M10 × 1.5 - 30 (PN 31894)

McMaster-Carr: 91290A522

4

32

Screw, Socket Head Cap, M6 × 1 - 25 (PN 31685)

McMaster-Carr: 91290A330

4

33

Screw, Socket Head Cap, M12 × 1.75 - 50 (PN 32476)

McMaster-Carr: 91290A626

6

34

Washer, Split Lock, M12 (PN 30321)

McMaster-Carr: 91202A246

10

35

Washer, Split Lock, M6 (PN 31379)

McMaster-Carr: 91169A180

4

36

Screw, Socket Head Cap, M10 × 1.5 - 35 (PN 31592)

McMaster-Carr: 91290A526

10

37

Screw, Button Head Cap, M5 × 0.8 - 8 (PN 34636)

McMaster-Carr: 92095A207

7

38

Washer, Split Lock, M5 (PN 31572)

McMaster-Carr: 91111A124

1

39

Screw, Socket Head Cap, M4 × 0.7 - 12 (PN 31360)

McMaster-Carr: 91290A148

4

40

Screw, Button Head Cap, M5 × 0.8 - 10 (PN 35774)

McMaster-Carr: 91239A224

8

41

Z-Axis Ball Screw Assembly, 770 (PN 31434)

–

1

42

770M Moving Kit (PN 31333)

–
