Base Machine - 770MX

1

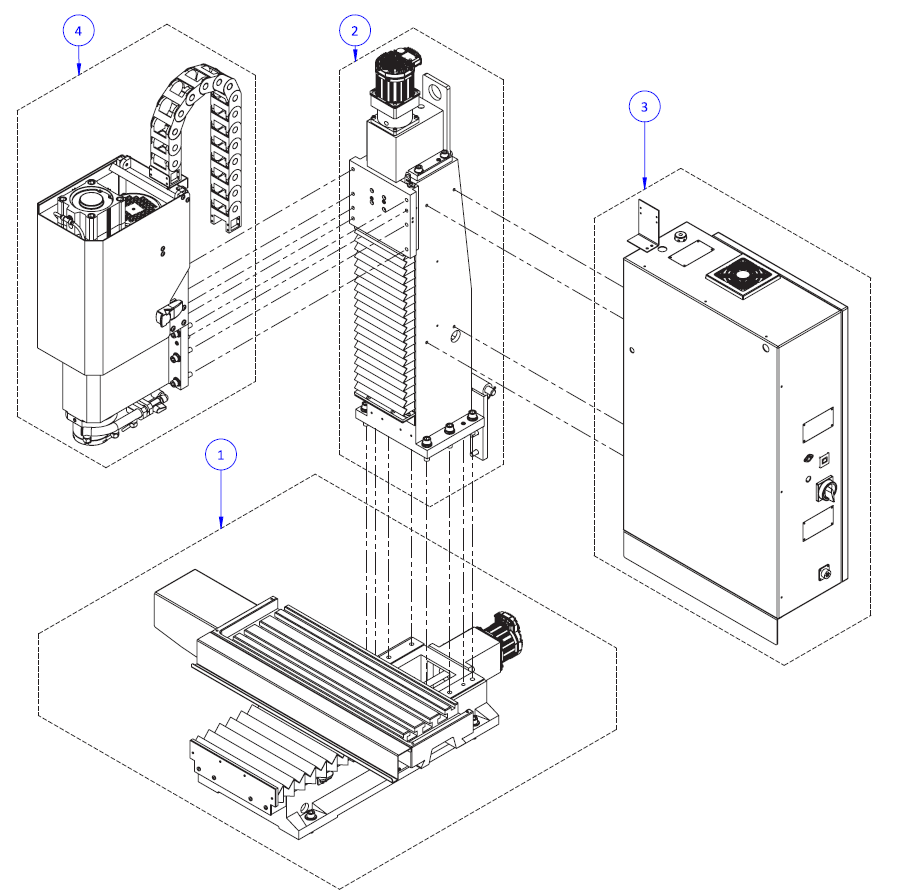

X-Y Axis Assembly Exploded View

1

2

Z-Axis Assembly Exploded View

1

3

Electrical Cabinet

• Fan Guard Filter, 120 mm (PN 37948)

• Fan Guard, 120 mm (PN 37947)

1

1
1

4

Spindle Head Exploded View

1
