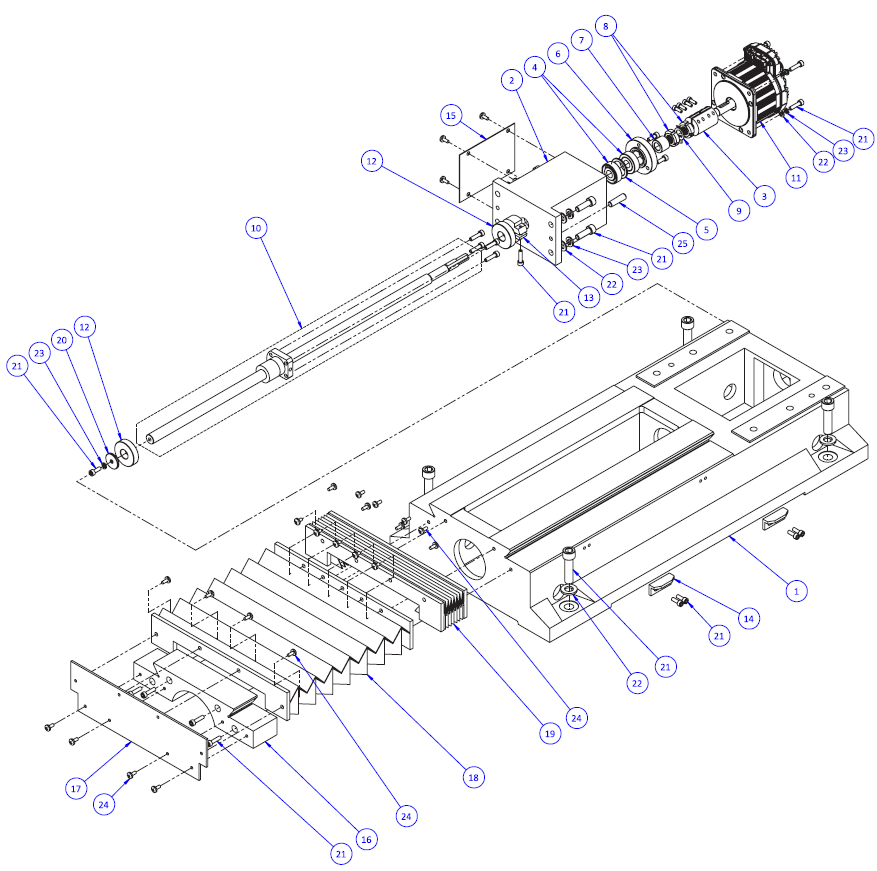

Y-Axis Assembly - 770MX

1

770 Machine Base (PN 31606)

–

1

2

770 Y-Axis Motor Mount (PN 31617)

–

1

3

Ball Screw Coupler (PN 31421)

–

1

4

X-/Y-Axis Ball Screw Support Bearing (PN 31432)

–

2

5

770 X-Y Ball Screw Bearing Spacer (PN 31615)

–

1

6

Bearing Cap (PN 31530)

–

1

7

Sleeve (PN 31537)

–

1

8

770 X and Y Ball Screw Preload Nut (PN 31616)

–

1

9

770 Tab Washer for Preload Nut (PN 31542)

–

1

10

Y-Axis Ball Screw Assembly, 770 (PN 31425)

–

1

11

Y-Axis Servo Motor, 770 (PN 38702)

–

1

12

X/Y-Axis Ball Screw End Bumper, 770 (PN 31613)

–

2

13

770 Ball Screw End Stop Clamp (PN 31614)

–

1

14

Y-Axis Limit Switch Flag (PN 30450)

–

2

15

770 X-Y Motor Mount Cover Plate (PN 31621)

–

1

16

770 Y-Axis Bellows Holder (PN 31627)

–

1

17

Y Cover Mounting Plate (PN 31628)

–

1

18

Y-axis Front Way Cover, 770 (PN 31419)

–

1

19

Y-axis Rear Way Cover, 770 (PN 31437)

–

1

20

Washer, Flat, 5 × 25, 3 mm Thick (PN 31532)

–

1

21

Screw, Socket Head Cap, M12 × 1.75 - 45 (PN 30349)

McMaster-Carr: 91290A624

33

22

Washer, Flat, M12 (PN 32473)

McMaster-Carr: 91166A290

12

23

Washer, Split Lock, M8 (PN 32339)

McMaster-Carr: 91202A238

9

24

Screw, Pan Head Machine, M5 × 0.8 - 10 (PN 30417)

McMaster-Carr: 92095A208

20

25

Pin, Taper, 8 × 30, M5 Thread (PN 31620)

–

2

26

Screw, Pan Head Machine, M5 × 0.8 - 8 (PN 31599)

–

5
