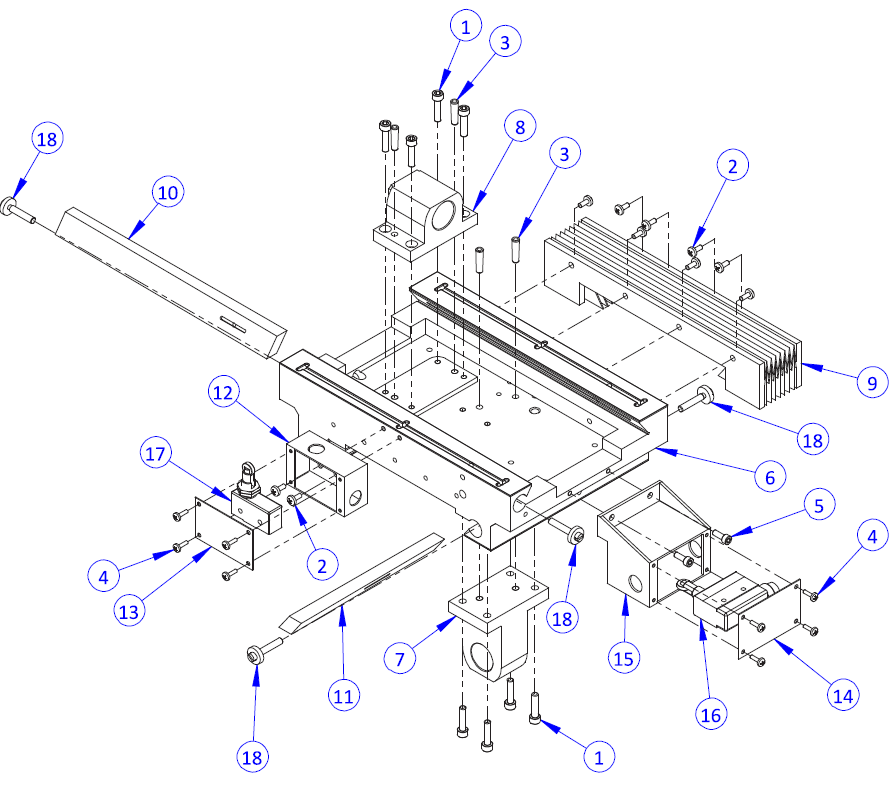

Y-Axis Saddle - 770MX

1

Screw, Socket Head Cap, M6 × 1 - 25

McMaster-Carr: 91290A330

8

2

Screw, Pan Head Machine, M5 × 0.8 - 10

McMaster-Carr: 92095A182

10

3

6 - 25 Taper Pin (PN 30439)

–

4

4

Screw, Pan Head Machine, M4 × 0.7 - 12

McMaster-Carr: 92005A222

8

5

Screw, Socket Head Cap, M5 × 0.8 - 14

McMaster-Carr: 91290A230

2

6

770 Y-Axis Saddle^*

–

1

7

Y Ball Nut Carrier^*

–

1

8

X Ball Nut Carrier^*

–

1

9

Y-axis Rear Way Cover, 770 (PN 31437)

–

1

10

770 X-Axis Gib^*

–

1

11

770 Y-Axis Gib^*

–

1

12

X-Axis Limit Switch Box^*

–

1

13

X-Axis Limit Switch Box Cap^*

–

1

14

Y-Axis Limit Switch Box Cap^*

–

1

15

Y-Axis Limit Switch Box^*

–

1

16

Y-Axis Limit Switch (PN 30461)

–

1

17

X-/Z-Axis Limit Switch (PN 31860)

–

1

18

Adjustment Screw (PN 31525)

–

4
