Breadcrumbs
Home
1300PL Knowledge Base
Electrical Schematics
Terminal Strips (Sheets 11-16) - 1300PL
On this Page

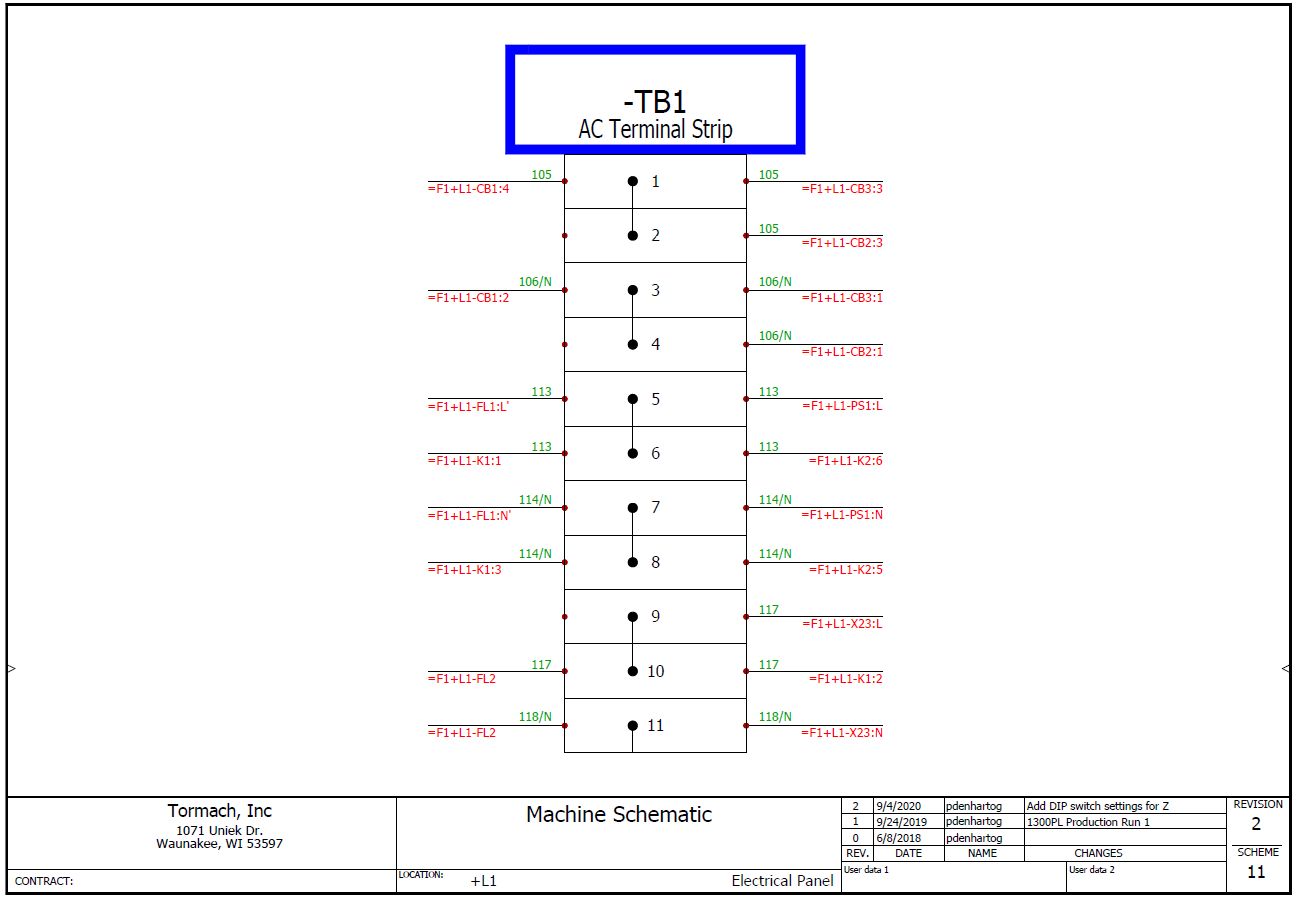

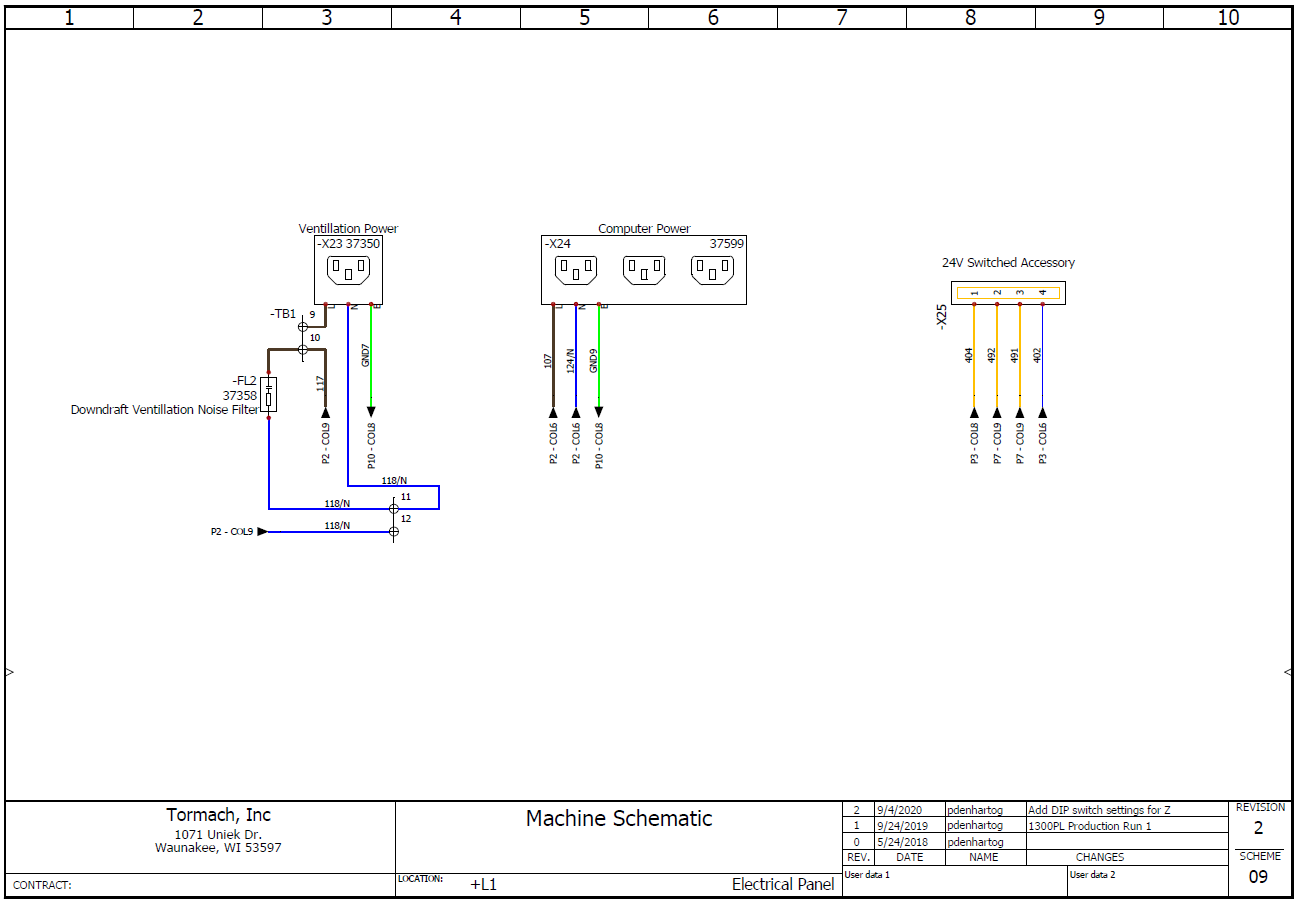

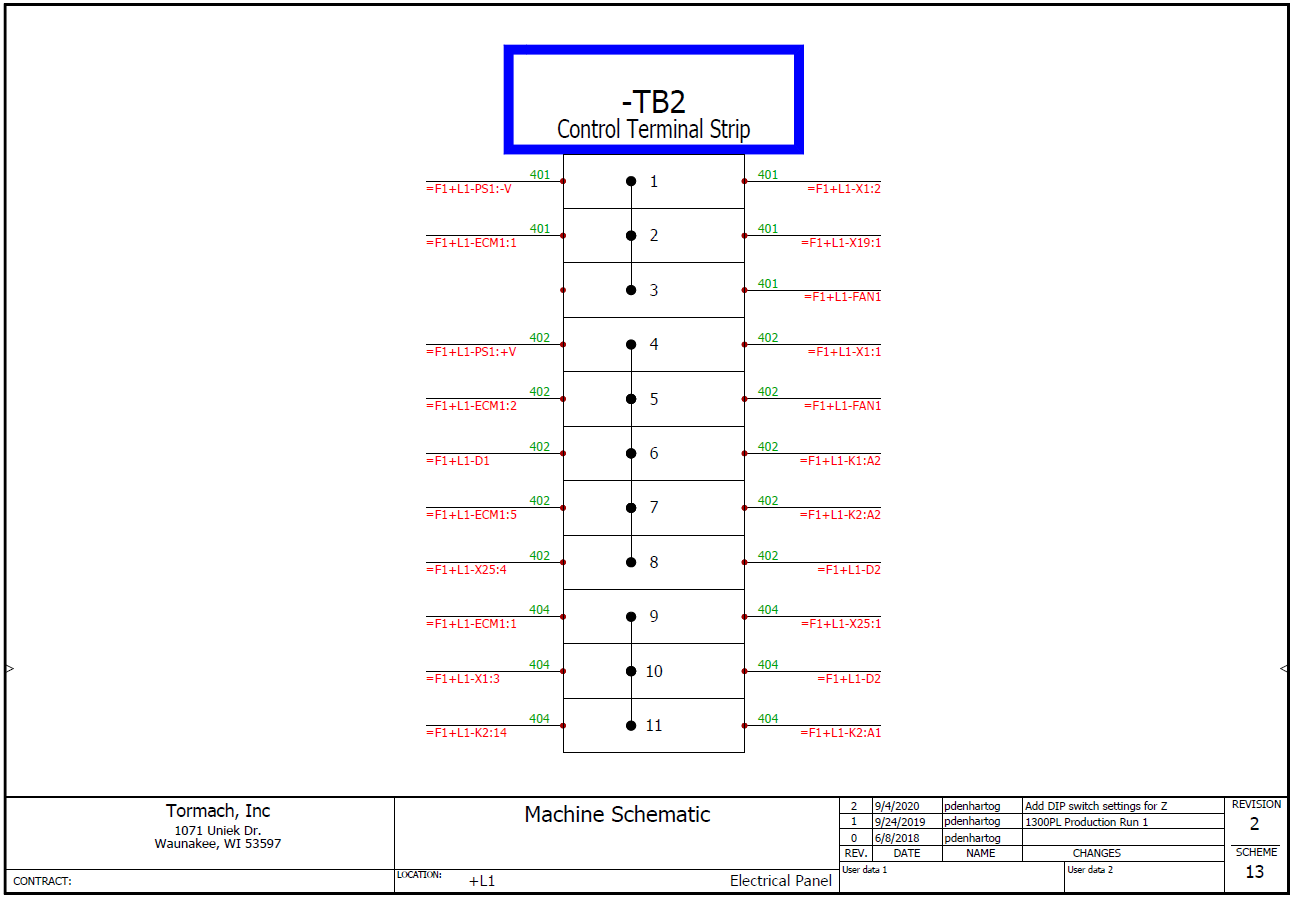

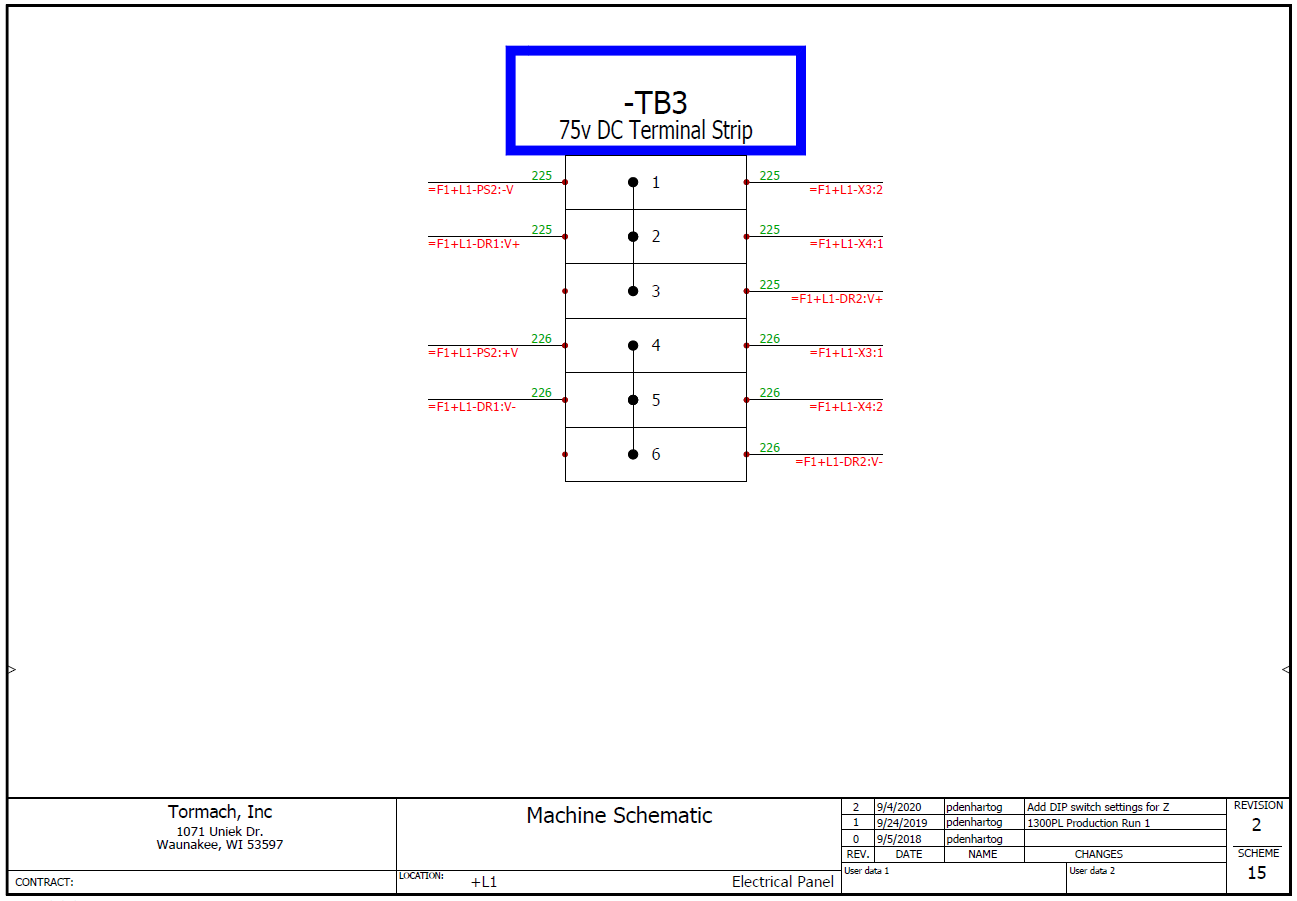

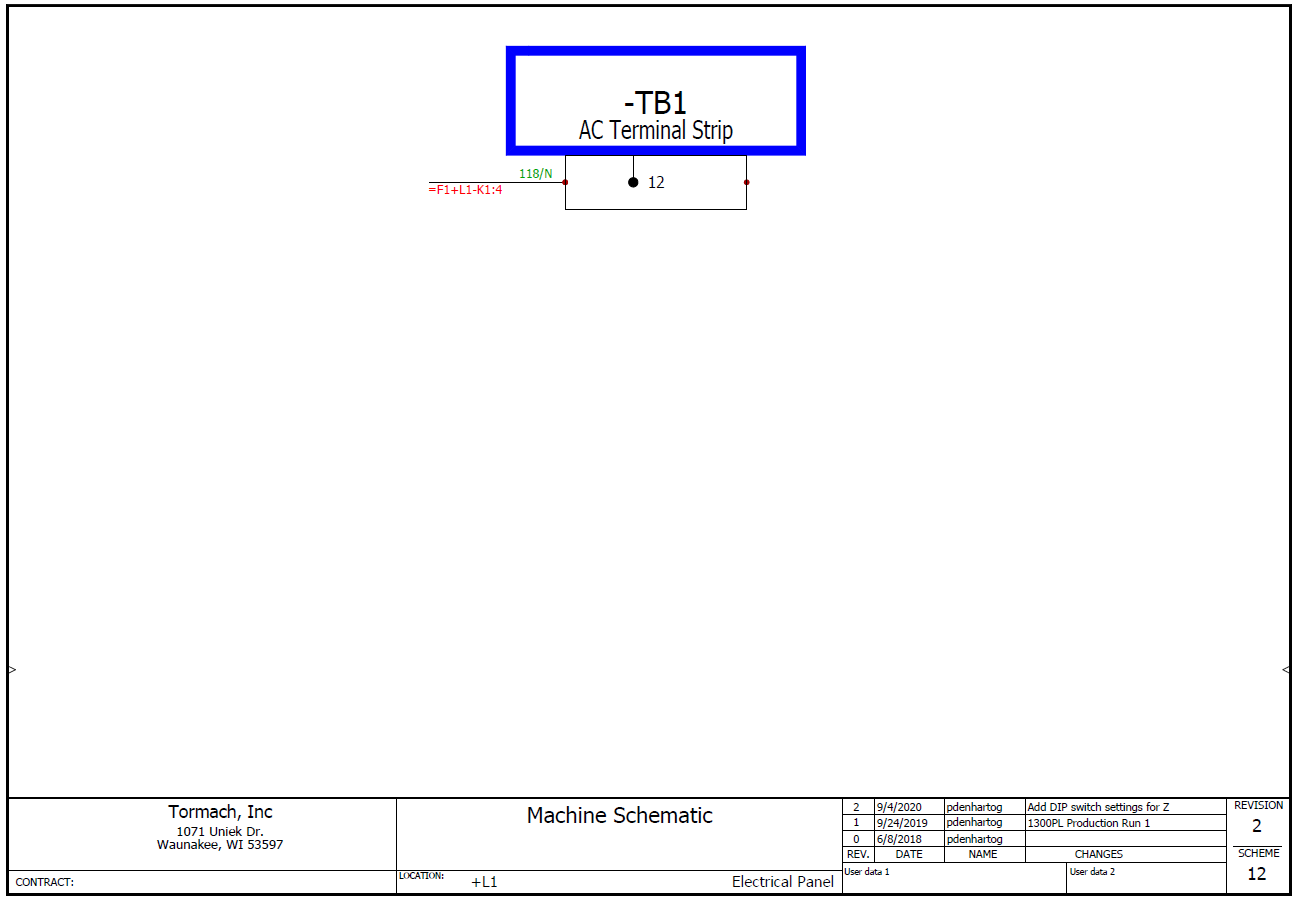

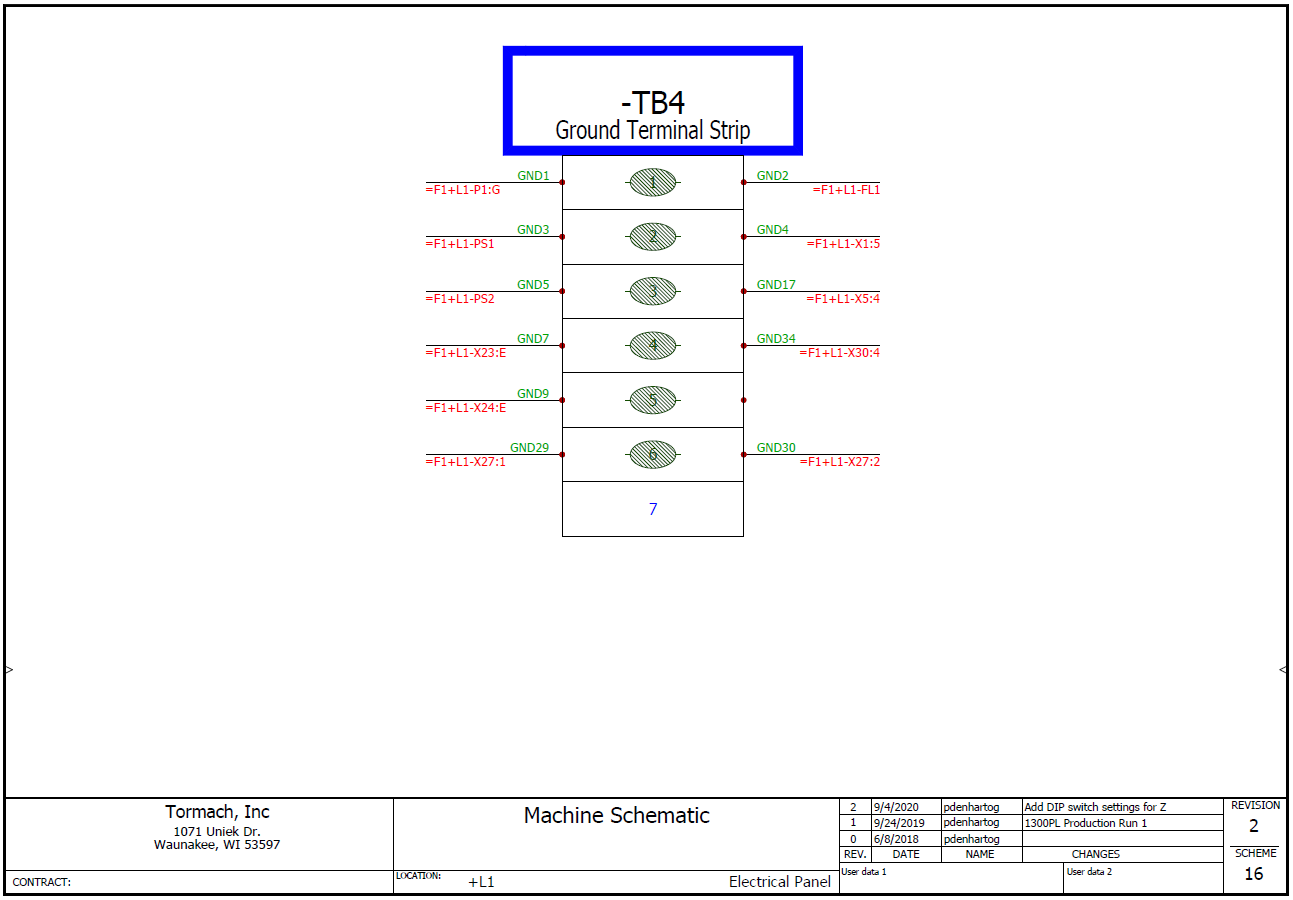

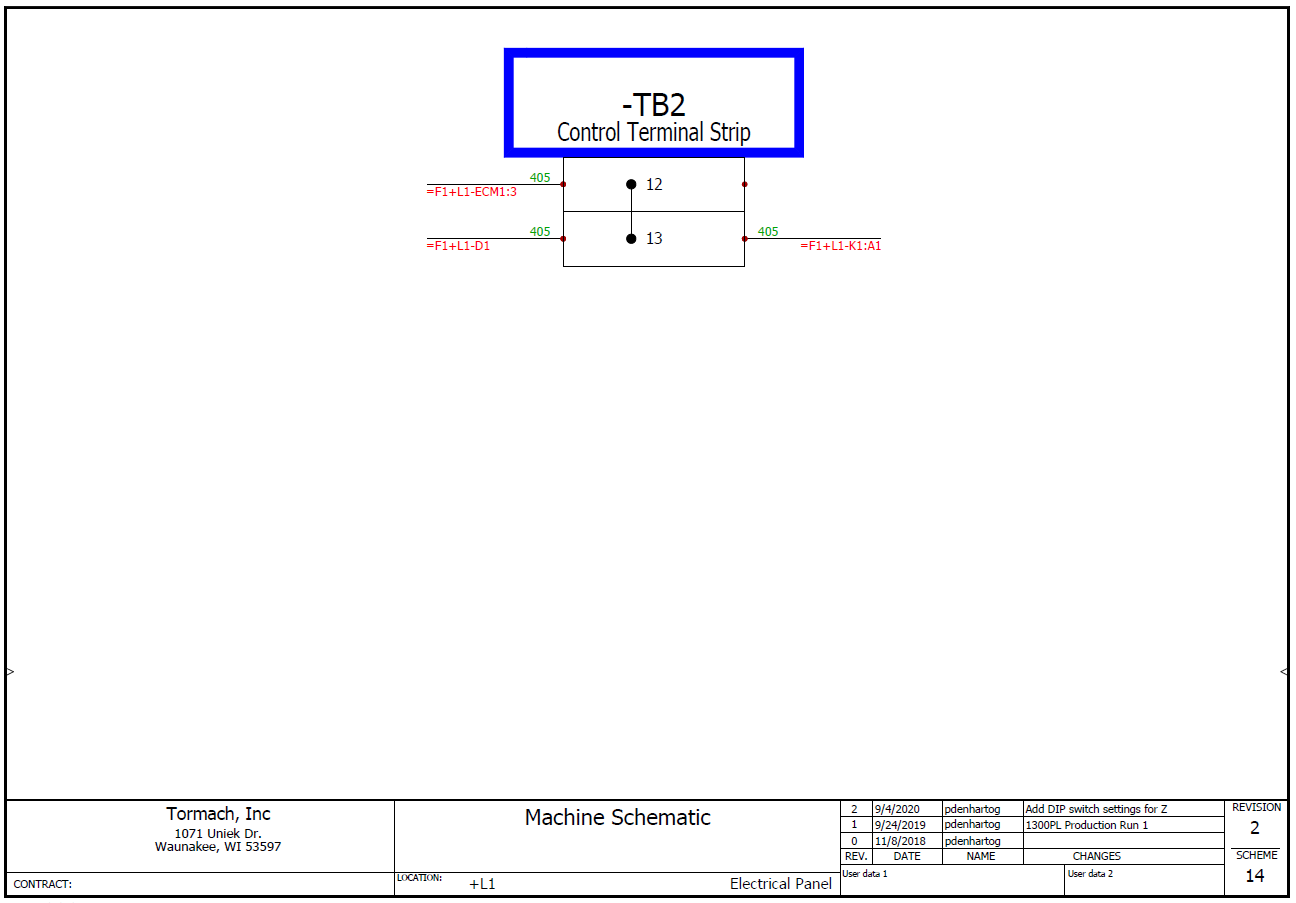

TB2: Control Terminal Strip (Sheet 13)
