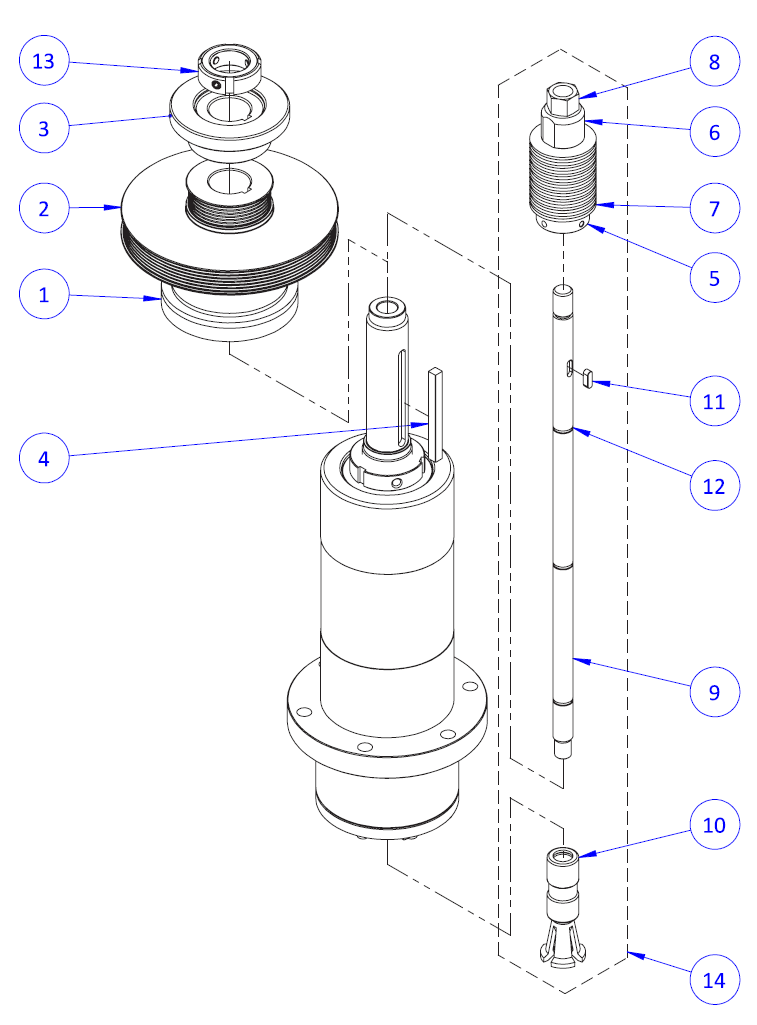

Spindle Cartridge - 1100MX

1

Magnetic Encoder, Spindle Ring (PN 38298)

1

2

Spindle Pulley, 1100MX (PN 39576)

1

3

Flange, BT30 Power Drawbar (PN 39577)

1

4

Key, Straight, 6 mm × 6 mm - 64 mm (PN 39579)

1

5

Disc Spring Guide, MX BT30 Spindle (PN 39597)

1

6

Disc Spring Compression Nut, MX BT30 Spindle (PN 39598)

1

7

Disc Spring, 40 mm × 20.4 mm × 2.0 mm × 3.10 mm (PN 39689)

16

8

Nut, Jam, M12 × 1.75 (PN 39602)

1

9

Drawbar, BT30 Spindle (PN 39574)

1

10

Clamping Unit, BT30 (PN 39690)

1

11

Key, Straight, 4 mm × 4 mm - 12 mm (PN 39601)

1

12

O-Ring, 9 mm × 12 mm × 1.5 mm, Buna-N (PN 39584)

3

13

Nut, Bearing, M25 × 1.5 (PN 39589)

1

14

Drawbar Core Assembly, MX BT30 Spindle (PN 39599)

–
