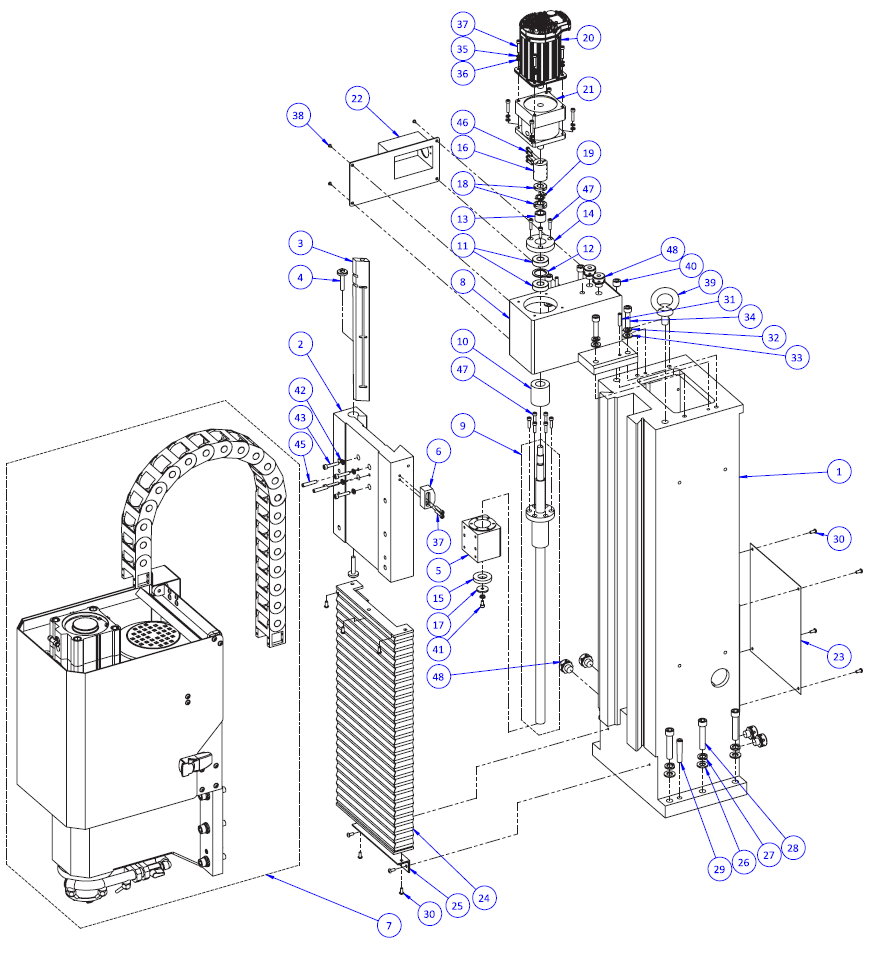

Z-Axis Assembly - 1100MX

1

1100 Column (PN 30379)

–

1

2

1100 Z-Axis Saddle (PN 30386)

–

1

3

Z-Axis Gib (PN 30384)

–

1

4

Z-Axis Gib Screw (PN 30385)

–

2

5

Z-Axis Ball Nut Carrier (PN 30387)

–

1

6

Z-Axis Limit Switch Flag (PN 37749)

–

1

7

1100MX Spindle Head Assembly (PN 50432)

–

1

8

Z-Axis Motor Mount (PN 30367)

–

1

9

Z-Axis Ball Screw Assembly, 1100 (PN 30382)

–

1

10

Z-axis Ball Screw Upper Bumper, 1100 (PN 30375)

–

1

11

Bearing, Angular Contact, 7202B (P6), 15 mm × 35 mm × 11 mm (PN 30373)

–

2

12

Bearing Spacer (PN 30374)

–

1

13

Bearing Nut Sleeve (PN 30371)

–

1

14

Z-Axis Bearing Retainer (PN 30372)

–

1

15

Z-Axis Ball Screw Lower Bumper, 1100 (PN 30388)

–

1

16

Ball Screw Coupler (PN 30362)

–

1

17

Lower Bumper Washer (PN 30390)

–

1

18

Bearing Nut, M14 × 1.5, Tab Lock (PN 30363)

–

2

19

Bearing Nut Lock Washer, M14 (PN 30364)

–

1

20

Z-Axis Servo Motor, 1100 (PN 38405)

–

1

21

Brake, NEMA 34 Inline, 24 Vdc (PN 38399)

–

1

22

Z-Axis Drag Chain Box (PN 38449)

–

1

23

Column Cover Plate (PN 30376)

–

1

24

Z-axis Way Cover (PN 30378)

–

1

25

Z-Axis Way Cover Bracket (PN 31204)

–

1

26

Washer, Flat, M12 (PN 32473)

McMaster-Carr: 91166A290

6

27

Washer, Split Lock, M12 (PN 30321)

McMaster-Carr: 91202A246

6

28

Screw, Socket Head Cap, M12 × 1.75 - 60 (PN 30380)

McMaster-Carr: 91290A234

6

29

Taper Pin, 10 mm - 55 mm (PN 30381)

–

2

30

Screw, Button Head Cap, M5 × 0.8 - 12, Stainless Steel (PN 37716)

McMaster-Carr: 92095A210

11

31

Taper Pin, 6 - 30 (PN 30368)

–

2

32

Washer, Split Lock, M10 (PN 31684)

McMaster-Carr: 91290A234

4

33

Washer, Flat, M10 (PN 30919)

McMaster-Carr: 93475A280

4

34

Screw, Socket Head Cap, M10 × 1.5 - 40 (PN 30366)

McMaster-Carr: 91290A528

4

35

Washer, Split Lock, M5 (PN 31572)

McMaster-Carr: 91111A124

8

36

Washer, Flat, M5 (PN 39305)

McMaster-Carr: 93475A240

8

37

Screw, Socket Head Cap, M5 × 0.8 - 25 (PN 30530)

McMaster-Carr: 91290A252

10

38

Screw, Button Head Cap (Flanged) M3 × 0.5 - 6 (PN 38880)

McMaster-Carr: 97654A674

4

39

Eye Bolt, M16 × 2 - 28 (PN 30370)

McMaster-Carr: 97654A674

1

40

Screw, Flat Point Set, M16 × 2 - 12 (PN 30369)

McMaster-Carr: 93245A457

1

41

Screw, Socket Head Cap, M5 × 0.8 - 10 (PN 31641)

McMaster-Carr: 91290A224

1

42

M6 Lock Washer (PN 31379)

McMaster-Carr: 91169A180

5

43

Screw, Socket Head Cap, M6 × 1 - 30 (PN 30353)

McMaster-Carr: 91290A332

4

44

Nut, Hex, M5 × 0.8 (PN 31201)

McMaster-Carr: 90591A260

2

45

Taper Pin, 6 - 35 (PN 31205)

–

2

46

Screw, Socket Head Cap, M4 × 0.7 - 16 (PN 37751)

McMaster-Carr: 91290A154

4

47

Screw, Socket Head Cap, M5 × 0.8 - 20 (PN 30357)

McMaster-Carr: 91290A242

9

48

Flex Conduit Fitting, 13 mm ID × 16 mm OD (PN 30628)

–

9
