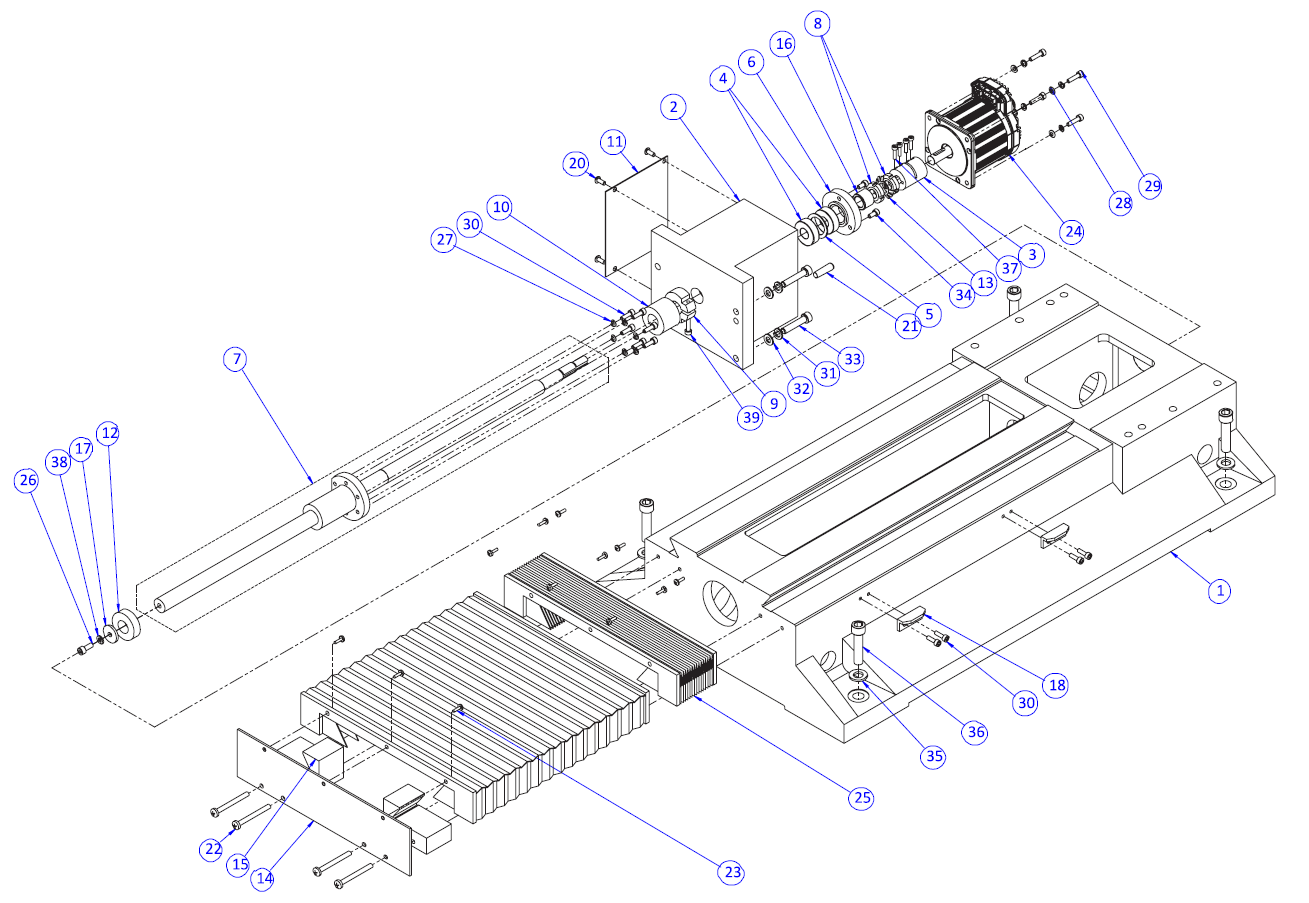

Y-Axis Assembly - 1100MX

1

1100 Machine Base^*

–

1

2

Y-Axis Motor Mount^*

–

1

3

Ball Screw Coupler (PN 30362)

–

1

4

Bearing, Angular Contact, 7202B (P6), 15 mm × 35 mm × 11 mm (PN 30373)

–

2

5

X-Y Ball Screw Bearing Spacer (PN 30429)

–

1

6

X-Y Ball Screw Bearing Cover Plate^*

–

1

7

Y-Axis Ball Screw Assembly, 1100 (PN 38800)

–

1

8

Bearing Nut, M14 × 1.5, Tab Lock (PN 30363)

–

2

9

Ball Screw End Stop Clamp (PN 30433)

–

1

10

Y-Axis Ball Screw Back Bumper, 1100 (PN 30446)

–

1

11

Motor Mount Cover Plate^*

–

1

12

X-/Y-Axis Ball Screw End Bumper, 1100 (PN 30400)

–

1

13

Bearing Nut Lock Washer, M14 (PN 30364)

–

1

14

Y-Axis Cover Plate (PN 30406)

–

1

15

Y-Axis Bellows Spacer^*

–

2

16

X-Y Bearing Nut Sleeve (PN 30444)

–

1

17

X-Y End Bumper Washer (PN 30401)

–

1

18

Y-Axis Limit Switch Flag (PN 30450)

–

2

19

Fitting, Oil, Tee (PN 32354)

–

1

20

Screw, Button Head Cap, M5 × 0.8 - 12, Stainless Steel

McMaster-Carr: 92095A210

4

21

Taper Pin, 8 mm × 30 mm (PN 30428)

–

2

22

Screw, Pan Head Machine, M6 × 1 - 40

McMaster-Carr: 92005A442

4

23

Screw, Pan Head Machine, M4 × 0.7 - 12

McMaster-Carr: 92005A222

12

24

Y-Axis Servo Motor, 1100 (PN 38701)

–

1

25

Y-Axis Way Cover, 1100 (PN 30578)

–

2

26

Screw, Socket Head Cap, M6 × 1 - 16

McMaster-Carr: 91290A321

2

27

Washer, Split Lock, M5

McMaster-Carr: 91111A124

10

28

Washer, Flat, M5

McMaster-Carr: 93475A240

4

29

Screw, Socket Head Cap, M5 × 0.8 - 20

McMaster-Carr: 91290A242

4

30

Screw, Socket Head Cap, M5 × 0.8 - 16

McMaster-Carr: 91290A232

10

31

Washer, Split Lock, M8

McMaster-Carr: 91202A238

4

32

Washer, Flat, M8

McMaster-Carr: 91166A270

4

33

Screw, Socket Head Cap, M8 × 1.25 - 40

McMaster-Carr: 91290A442

4

34

Screw, Socket Head Cap, M5 × 0.8 - 10

McMaster-Carr: 91290A224

3

35

Washer, Flat, M12

McMaster-Carr: 91166A290

4

36

Screw, Socket Head Cap, M12 × 1.75 - 50

McMaster-Carr: 91290A626

4

37

Screw, Socket Head Cap, M4 × 0.7 - 16

McMaster-Carr: 91290A154

4

38

M6 Lock Washer

McMaster-Carr: 91169A180

1

39

Screw, Socket Head Cap, M5 × 0.8 - 25

McMaster-Carr: 91290A252

1
