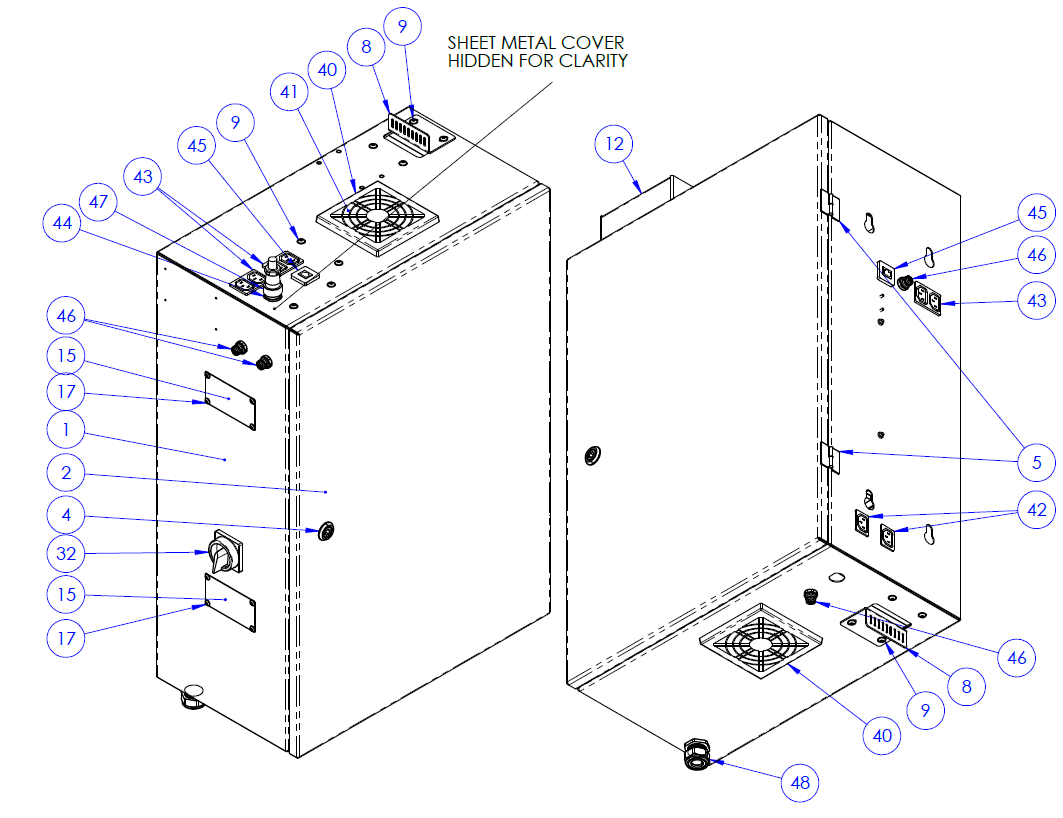

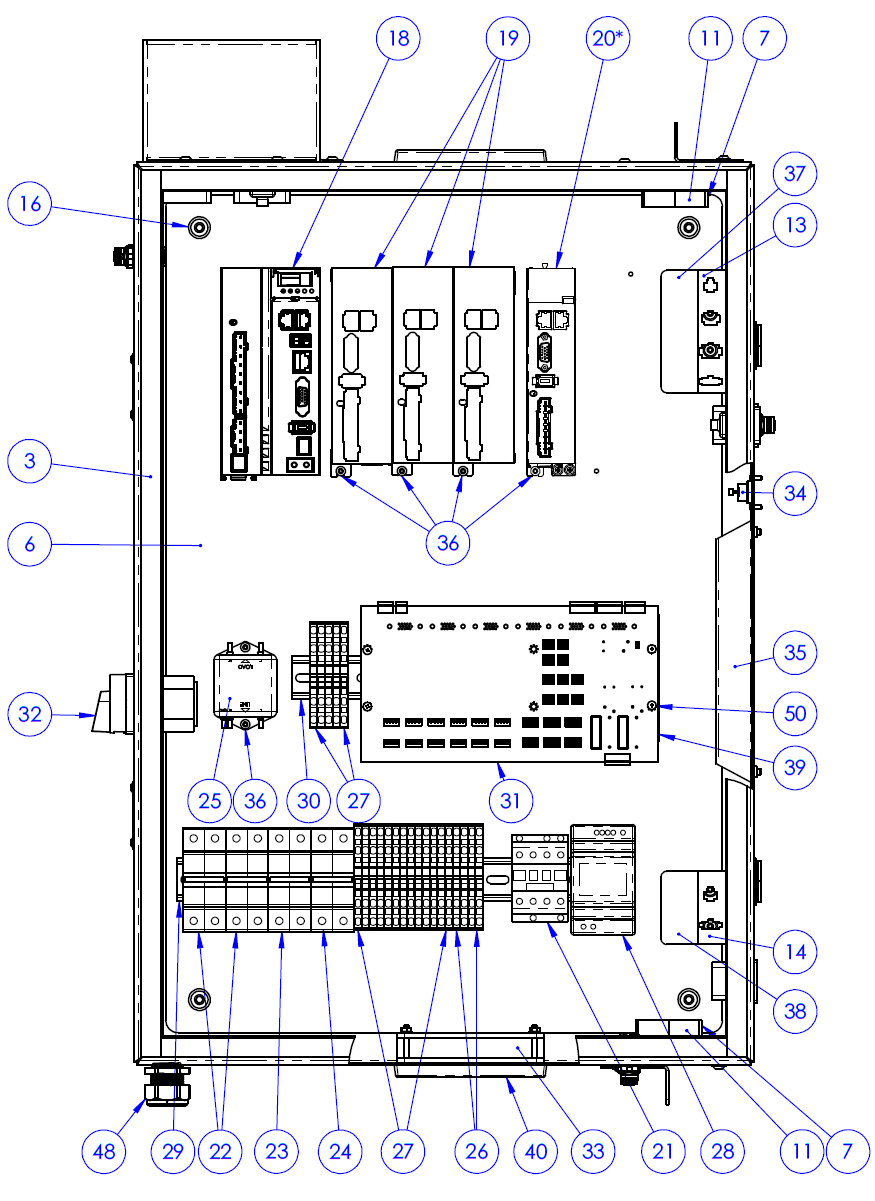

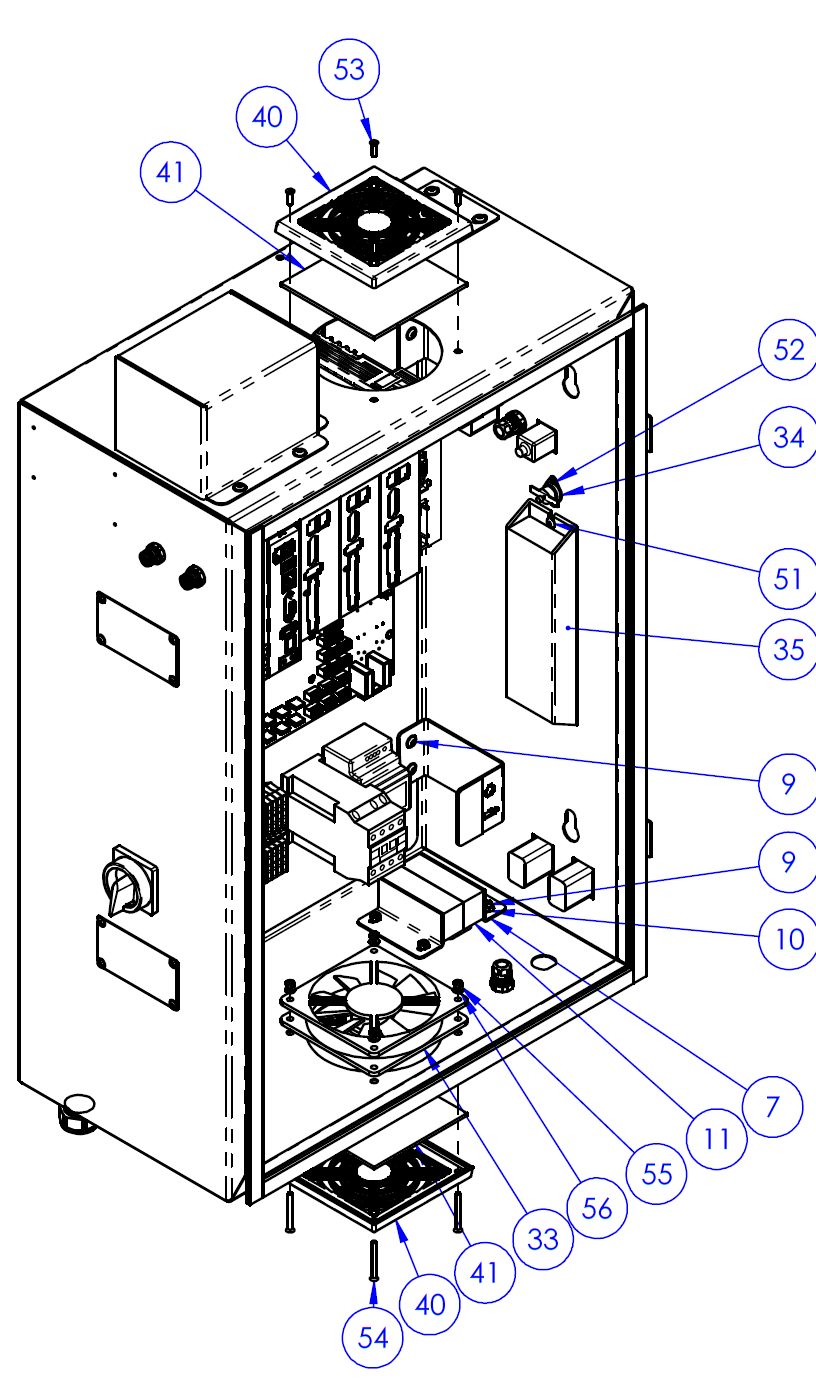

Electrical Cabinet - 1500MX

1

Electrical Cabinet, 1500MX (PN 51284)

–

1

2

Electrical Cabinet Door, 1500MX (PN 51285)

–

1

3

Electrical Cabinet Door Gasket, 1500MX (PN 51669)

–

1

4

Cam Lock, Zinc Plated, Hex Drive, Quarter-Turn Counterclockwise to Open (PN 51588)

McMaster-Carr: 2050N12

1

5

Hinge, Surface-Mount, Lift-Off Style, Right Side, 22 mm Hole Spacing (PN 53478)

–

2

6

Electrical Panel Back Plate, 1500MX (PN 51287)

–

1

7

Cable Gland Strain Relief Bracket (PN 51295)

–

4

8

Cable Gland Strain Relief Bracket (PN 51295)

–

2

9

Screw, Button Head Cap (Flanged), M5 × 0.8 - 12 (PN 38890)

McMaster-Carr: 97654A377

16

10

Nut, Hex, M5 × 0.8 (PN 31201)

McMaster-Carr: 90591A260

8

11

Foam Block, 30 mm x 80 mm (PN 51313)

–

4

12

Electrical Cabinet Doghouse, 1500MX (PN 51311)

–

1

13

Connector Bulkhead, Electrical Cabinet, Top Right Exit (PN 51297)

–

1

14

Connector Bulkhead, Electrical Cabinet, Bottom Right Exit
(PN 51298)

–

1

15

Electrical Cabinet Accessory Cover Plate (PN 37926)

–

2

16

Screw, Button Head Cap, Flanged M8 × 1.25 - 10, 18-8 Stainless (PN 51324)

McMaster-Carr: 97654A683

4

17

Screw, Button Head Cap, Flanged M4 × 0.7 - 8, 18-8 Stainless (PN 51331)

McMaster-Carr: 97654A372

9

18

Inovance SV660N, AC Servo Drive, Ethercat, 220 Vac, 12 A, STO Function (PN 51195)

–

1

19

Inovance SV660N, AC Servo Drive, Ethercat, 220 Vac, 5.5 A, STO Function (PN 51259)

–

1

20

Inovance SV660N, AC Servo Drive, Ethercat, 220 Vac, 2.8 A, STO Function, (PN 51194)

–

0

21

Contactor (24 Vdc Coil, 1 Auxiliary Pole) (PN 37343)

–

1

22

Circuit Breaker (20 A, 2 Pole) (PN 37345)

–

2

23

Circuit Breaker (10 A, 2 Pole) (PN 37346)

–

1

24

Circuit Breaker (3 A, 2 Pole) (PN 37516)

–

1

25

Filter (110 Vac/250 Vac, 20 A) (PN 37914)

–

1

26

Terminal Block, GND, 4 Position, Spring Type, Internally Jumpered, JUT3-4/2-2PE (PN 51289)

–

4

27

Terminal Block, 4 Position, Spring Type, Internally Jumpered, 1500MX, JUT3-4/2-2 (PN 51290)

–

18

28

Power Supply (24 Vdc, 60 W) (PN 50461)

–

1

29

Din Rail (35 × 7.5), 375 mm Long (PN 51633)

McMaster-Carr: 8961K15

1

30

Din Rail (35 × 7.5), 300 mm Long (PN 51634)

McMaster-Carr: 8961K15

1

31

Servo IO Breakout Board (6 Axis) (PN 51252)

–

1

32

Main Disconnect Switch (PN 30454)

–

1

33

Fan (24 Vdc, 120 mm) (PN 37526)

McMaster-Carr: 8774N18

1

34

Thermal Switch (Pushbutton Reset) (PN 37420)

–

1

35

Spindle Brake Resistor (PN 37906)

–

1

36

Screw, Button Head Cap, M4 × 0.7 - 8, Black Oxide Steel
(PN 51317)

McMaster-Carr: 91239A140

15

37

Bulkhead Label, Upper Bulkhead, 1500MX Electrical Cabinet (PN 51471)

–

1

38

Bulkhead Label, Upper Bulkhead, 1500MX Electrical Cabinet (PN 51472)

–

1

39

Standoff, 47 mm Hole Spacing, Clip-On Din Rail, Plastic (PN 51473)

–

2

40

Electrical Cabinet Exhaust Cover Retainer (PN 37947)

–

2

41

Electrical Cabinet Exhaust Filter (PN 37948)

–

2

42

IEC 320 Socket (Female, Single) (PN 37350)

–

2

43

IEC 320 Socket (Female, Double) (PN 37351)

–

3

44

Connector, 5 Pin, Female (PN 37353)

–

1

45

Connector, RJ45 Socket (PN 37355)

–

2

46

Circular Connector, M12, Rear Panel Mount, Plug, 4 Pin Female (PN 51293)

–

4

47

Circular Connector, Plug, 5 Pin Male, Metal Hose, Solder
(PN 39263)

–

1

48

Cable Cord Grip M20 × 1.25 / 25 mm Nut (PN 38758)

–

1

49

Screw, Button Head Cap, M5 × 0.8 - 8 (PN 34636)

McMaster-Carr: 92095A207

4

50

Screw, Pan Head, Thread Forming M4 × 1.79 - 10, Zinc Plated (PN 51323)

McMaster-Carr: 90380A376

4

51

Screw, Button Head Cap, M5 × 0.8 - 10 (PN 35774)

McMaster-Carr: 91239A224

3

52

Screw, Button Head Cap, M3 × 0.5 - 8, Black Oxide Steel
(PN 51326)

McMaster-Carr: 91239A113

2

53

Screw, Phillips Head Countersunk, M4 × 0.7 - 14, Zinc Plated (PN 51766)

McMaster-Carr: 91420A224

4

54

Screw, Phillips Head Countersunk, M4 × 0.7 - 40, Zinc Plated
(PN 51327)

McMaster-Carr: 91420A250

4

55

Nut, Hex, M4, Zinc Plated (PN 38358)

McMaster-Carr: 90591A255

4

56

Washer, Flat, M4 (PN 31087)

McMaster-Carr: 91166A230

4
