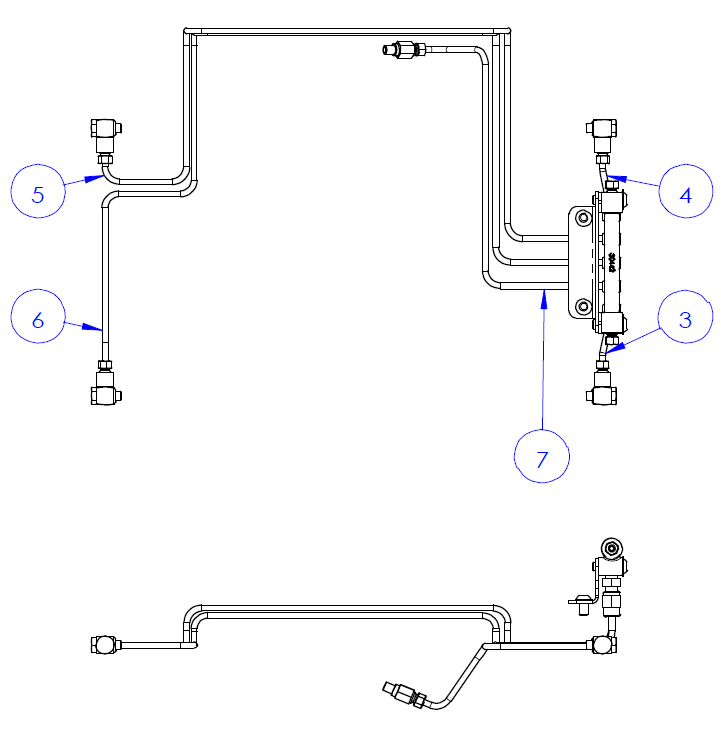

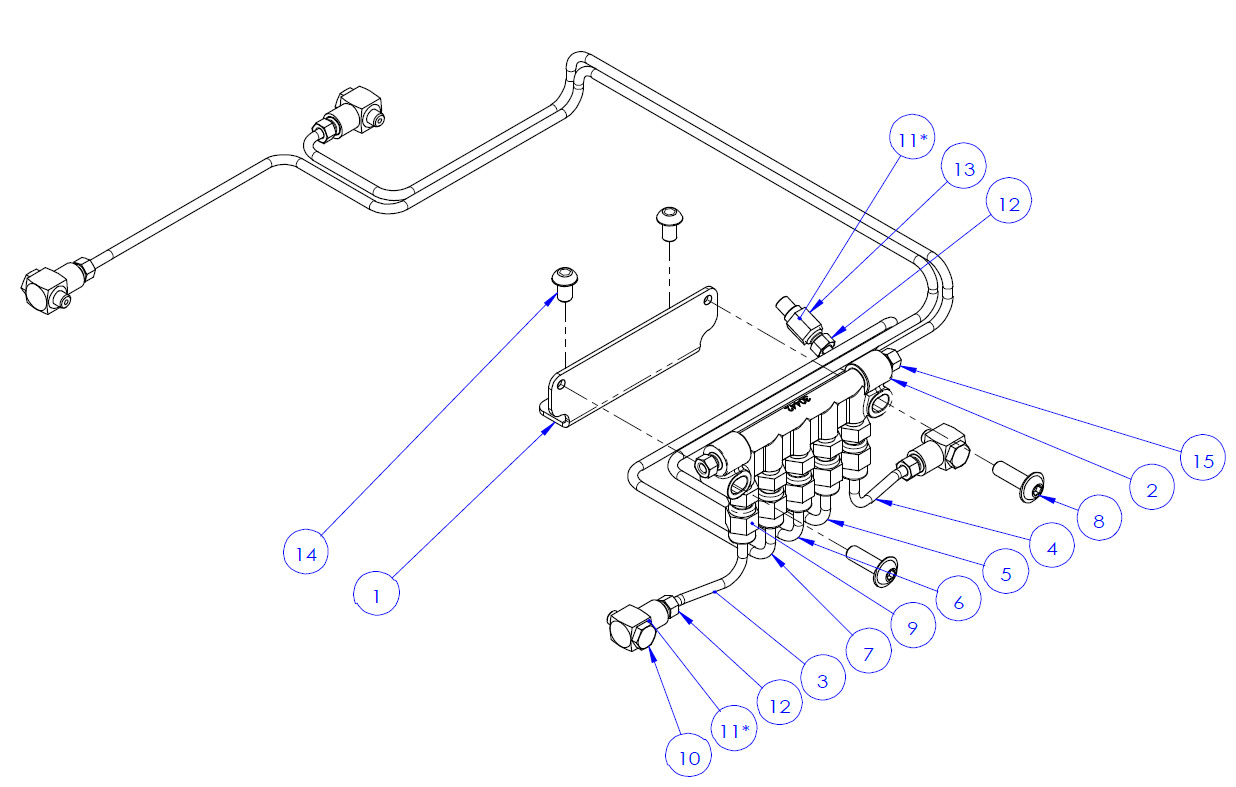

Y-Axis Lubrication Assembly - 1500MX


Description

Alternative Part Number

Quantity

1

Y-Axis Lubrication Manifold Bracket, 1500MX (PN 51408)

1

2

5-Port Manifold (PN 30442)

1

3

Lubrication Line, Copper, 1500MX Y-Axis Bearing 1 (PN 52233)

1

4

Lubrication Line, Copper, 1500MX Y-Axis Bearing 2 (PN 52234)

1

5

Lubrication Line, Copper, 1500MX Y-Axis Bearing 3 (PN 52235)

1

6

Lubrication Line, Copper, 1500MX Y-Axis Bearing 4 (PN 52236)

1

7

Lubrication Line, Copper, 1500MX Y-Axis Ball Nut (PN 52231)

1

8

Screw, Button Head Cap, Flanged M6 × 1 - 20, 18-8 Stainless
(PN 51418)

2

9

Fitting, Proportional Orifice, M8 × 1 (Male) - 4 mm (OD) Tube
(PN 52511)

5

10

Fitting, Banjo Elbow, M6 × 1 - 4 mm Tube (PN 31311)

4

11

Fitting, Ferrule, 4 mm Tube (PN 31309)*

7

12

Fitting, Compression Nut, 4 mm Tube (PN 31310)

7

13

Fitting, Adapter, M6 × 0.75 P (Male) to M8 × 1 (Female)
(PN 52512)

1

14

Screw, Button Head Cap, M6 × 1 - 10, Stainless Steel (PN 52513)

McMaster-Carr: 92095A224

2

15

Fitting, Plug, M8 × 1, Compression Type (PN 53005)

1

*Hidden inside fittings. See tube and ferrule connections reference in "Lubrication Assembly"
