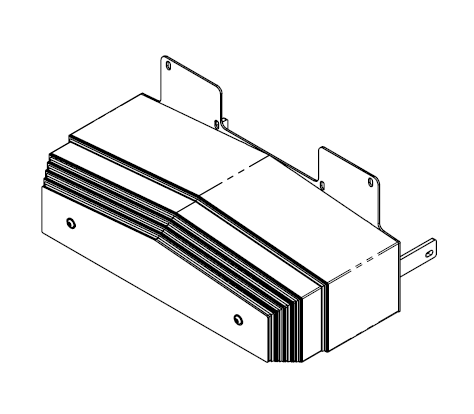

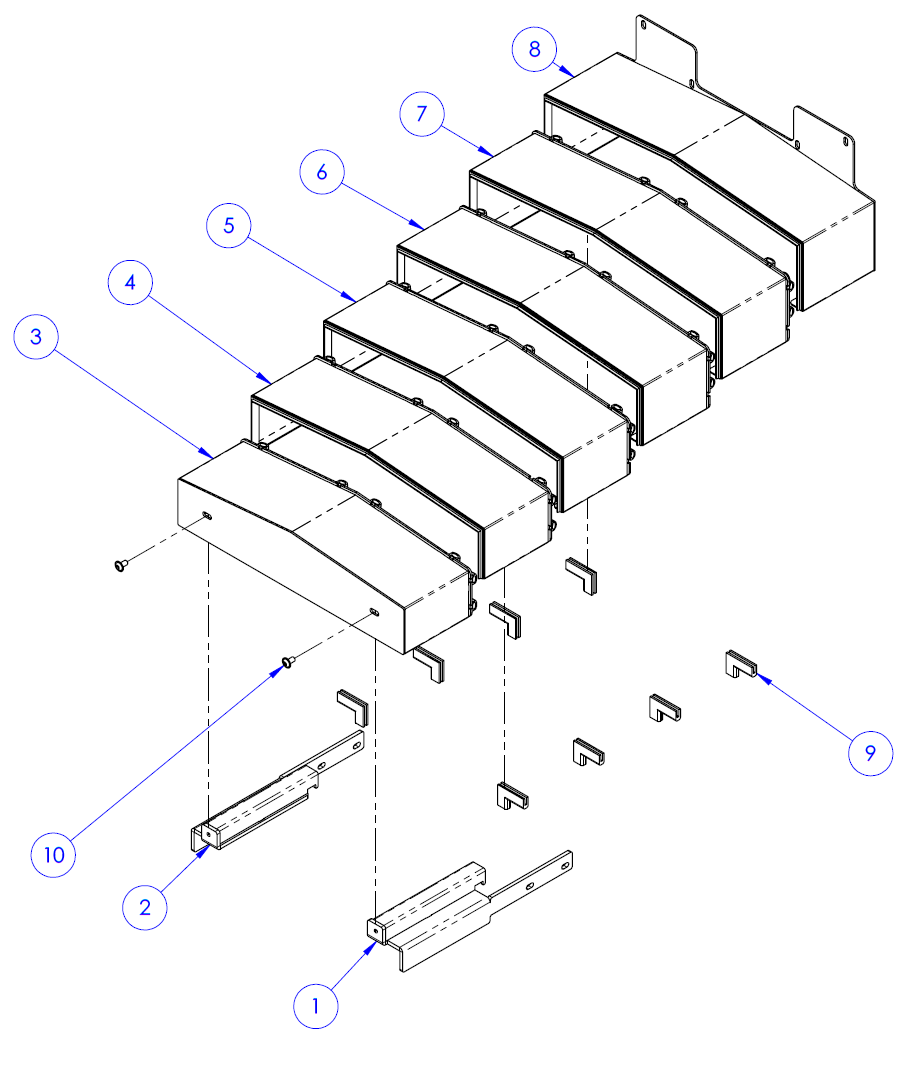

Y-Axis Front Way Cover Assembly - 1500MX

1

Right Mounting Bracket, Y-Axis Front Way Cover, 1500MX
(PN 51648)

–

1

2

Left Mounting Bracket, Y-Axis Front Way Cover, 1500MX
(PN 51649)

–

1

3

Base Segment, Y-Axis Front Way Cover, 1500MX (PN 51647)

–

1

4

Intermediate Segment 1, Y-Axis Front Way Cover, 1500MX
(PN 51650)

–

1

5

Intermediate Segment 2, Y-Axis Front Way Cover, 1500MX
(PN 51651)

–

1

6

Intermediate Segment 3, Y-Axis Front Way Cover, 1500MX
(PN 51652)

–

1

7

Intermediate Segment 4, Y-Axis Front Way Cover, 1500MX
(PN 51653)

–

1

8

Top Segment, Y-Axis Front Way Cover, 1500MX (PN 51646)

–

1

9

Linear Rail Slider Trim, Y-Axis Front Way Cover, 1500MX
(PN 51656)

–

8

10

Screw, Button Head Cap (Flanged), M6 × 1 - 12, Stainless Steel (PN 38206)

McMaster-Carr: 97654A380

2
