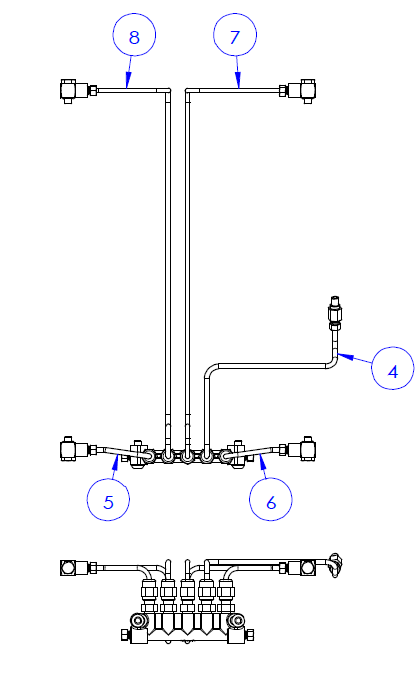

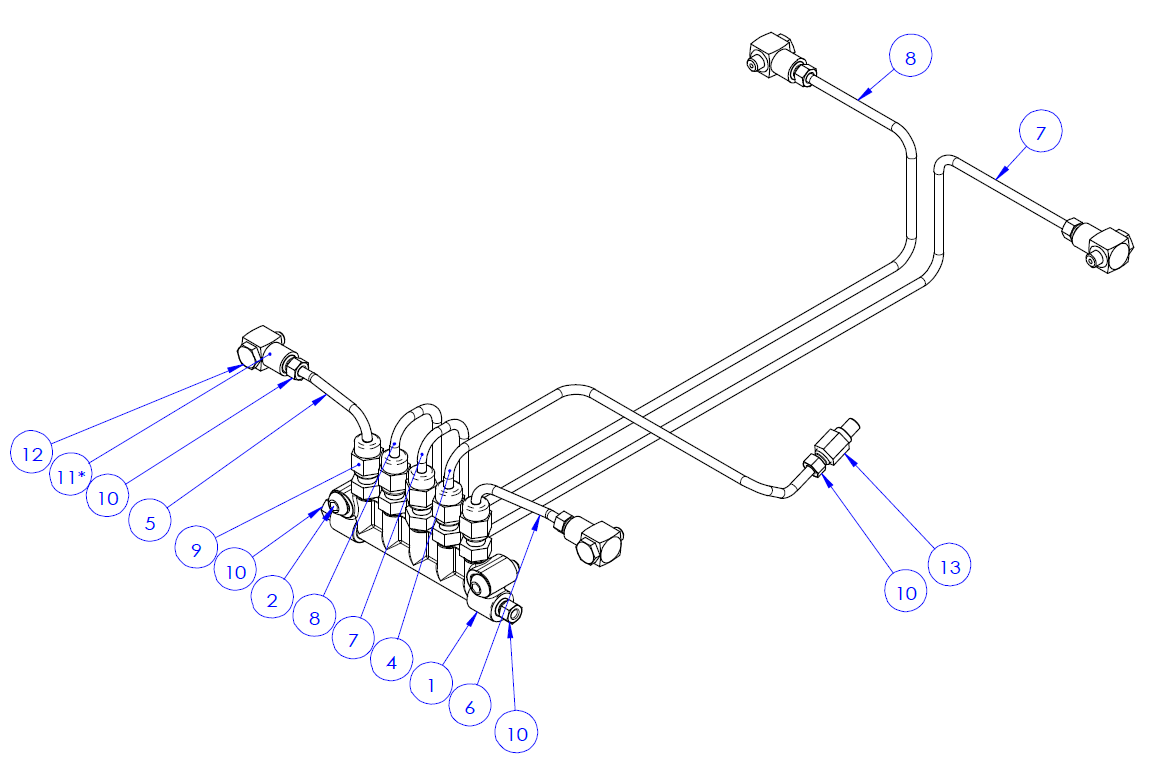

X-Axis Lubrication Assembly - 1500MX
Description | Alternative Part Number | Quantity | |
|---|---|---|---|
| 1 | 5-Port Manifold (PN 30442) | – | 1 |
| 2 | Screw, Button Head Cap, M6 × 1 - 20, Stainless Steel (PN 51700) | McMaster-Carr: 92095A240 | 2 |
| 3 | Tubing, Nylon, 4 mm OD (PN 31304) | McMaster-Carr: 50405K33 | 1 |
| 4 | Lubrication Line, Copper, 1500MX X-Axis Ball Nut (PN 52514) | – | 1 |
| 5 | Lubrication Line, Copper, 1500MX X-Axis Bearing 1 (PN 52515) | – | 1 |
| 6 | Lubrication Line, Copper, 1500MX X-Axis Bearing 2 (PN 52516) | – | 1 |
| 7 | Lubrication Line, Copper, 1500MX X-Axis Bearing 3 (PN 52517) | – | 1 |
| 8 | Lubrication Line, Copper, 1500MX X-Axis Bearing 4 (PN 52518) | – | 1 |
| 9 | Fitting, Proportional Orifice, M8 × 1 (Male) - 4 mm (OD) Tube | – | 5 |
| 10 | Fitting, Compression Nut, 4 mm Tube (PN 31310) | – | 7 |
| 11 | Fitting, Ferrule, 4 mm Tube (PN 31309)* | – | 6 |
| 12 | Fitting, Banjo Elbow, M6 × 1 - 4 mm Tube (PN 31311) | – | 4 |
| 13 | Fitting, Adapter, M6 × 0.75 P (Male) to M8 × 1 (Female) | – | 1 |
*Hidden inside fittings. See tube and ferrule connections reference in "Lubrication Assembly".
