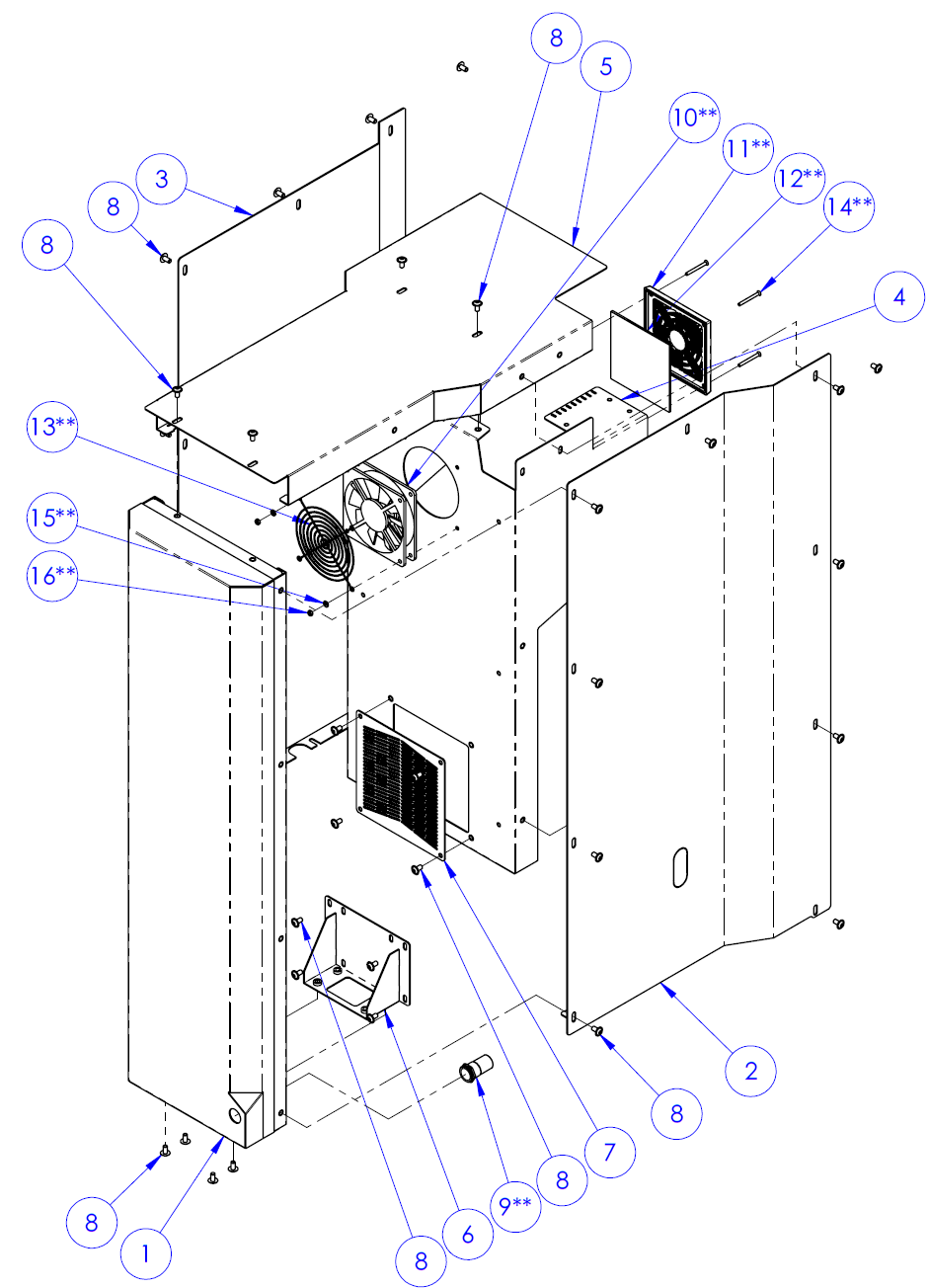

Spindle Head Sheet Metal Cover Assembly - 1500MX
Description | Alternative | Quantity | |
|---|---|---|---|
| 1 | Spindle Head Front Panel, 1500MX (PN 51241) | – | 1 |
| 2 | Spindle Head Right Side Panel, 1500MX (PN 51243) | – | 1 |
| 3 | Spindle Head Left Side Panel, 1500MX (PN 51474) | – | 1 |
| 4 | Spindle Head Back Panel, 1500MX (PN 51242) | – | 1 |
| 5 | Spindle Head Top Panel, 1500MX (PN 51475) | – | 1 |
| 6 | Spindle Head Cover Mounting Bracket, 1500MX (PN 51444) | – | 1 |
| 7 | Spindle Head Access Panel, 1500MX (PN 51769) | – | 1 |
| 8 | Screw, Button Head Cap (Flanged), M6 × 1 - 12, Stainless Steel (PN 38206) | McMaster-Carr: 97654A380 | 36 |
| 9 | Push Button, 1NO1NC, White LED (PN 51239)** | – | 1 |
| 10 | Fan (24 Vdc, 120 mm) (PN 51239)** | McMaster-Carr: 8774N18 | 1 |
| 11 | Electrical Cabinet Exhaust Cover Retainer (PN 37947)** | McMaster-Carr: 19155K23 | 1 |
| 12 | Electrical Cabinet Exhaust Filter (PN 37948)** | McMaster-Carr: 19155K53 | 1 |
| 13 | Fan Guard, Wire (PN 30515)** | McMaster-Carr: 19155K96 | 1 |
| 14 | Screw, Phillips Head Countersunk, M4 × 0.7 - 40, Zinc Plated (PN 51327)** | McMaster-Carr: 91420A250 | 4 |
| 15 | Washer, Flat, M4 (PN 31087)** | McMaster-Carr: 91166A230 | 4 |
| 16 | Nut, Hex, M4, Zinc Plated (PN 38358)** | McMaster-Carr: 90591A255 | 4 |
*Optional accessory not included with base mill.
**Component not included in this assembly, but show here for context
