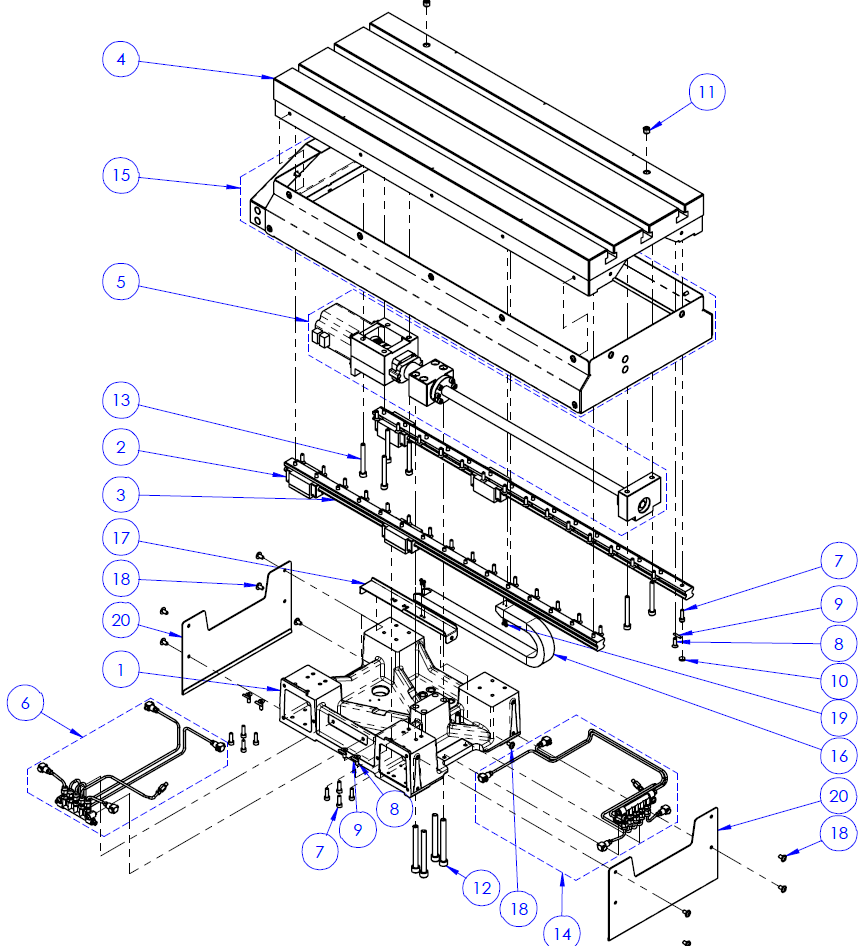

X-Axis Assembly - 1500MX
Description | Alternative Part Number | Quantity | |
|---|---|---|---|
| 1 | Saddle Casting, 1500MX (PN 51232) | – | 1 |
| 2 | Linear Guide Block, 25 mm, Precision H, ZA Preload, | – | 4 |
| 3 | Linear Rail, 25 mm, 880 mm Long, Precision H, M6 Top-Down Mount (PN 51339) | – | 2 |
| 4 | Mill Table Casting, 1500MX (PN 51218) | – | 1 |
| 5 | Linear Actuator Assembly, 500 mm Travel, 10 mm Lead | – | 1 |
| 6 | X-Axis Lubrication Assembly, 1500MX (PN 51407) | – | 1 |
| 7 | Screw, Socket Head Cap, M6 × 1 - 20 (PN 30832) | McMaster-Carr: 91290A326 | 46 |
| 8 | Screw, Socket Head Countersunk, M6 × 1 - 20 (PN 51321) | McMaster-Carr: 92125A240 | 34 |
| 9 | Pin, 4 × 20 (PN 51342) | McMaster-Carr: 91595A167 | 34 |
| 10 | Linear Guide Rail Bolt Cap, M6, Plastic with O-Ring (PN 51350) | – | 30 |
| 11 | Screw, Cup Point Set, M12 × 1.75 - 12 (PN 51699) | McMaster-Carr: 91390A169 | 2 |
| 12 | Screw, Socket Head Cap, M10 × 1.5 - 100 (PN 51696) | McMaster-Carr: 91290A548 | 4 |
| 13 | Screw, Socket Head Cap, M8 × 1.25 - 70 (PN 51751) | McMaster-Carr: 91290A460 | 6 |
| 14 | Y-Axis Lubrication Assembly, 1500MX (PN 51404) | – | 1 |
| 15 | – | 1 | |
| 16 | X-Axis Drag Chain, 1500MX (PN 51422) | – | 1 |
| 17 | X-Axis Drag Chain Guide, 1500MX (PN 51767) | – | 1 |
| 18 | Screw, Button Head Cap (Flanged), M6 × 1 - 12, Stainless Steel (PN 38206) | McMaster-Carr: 97654A380 | 10 |
| 19 | Screw, Socket Head Cap, M3 × 0.5 - 10 (PN 51953) | McMaster-Carr: 91290A115 | 4 |
| 20 | Saddle Cover Right/Left Panel, 1500MX (PN 51448) | – | 2 |
