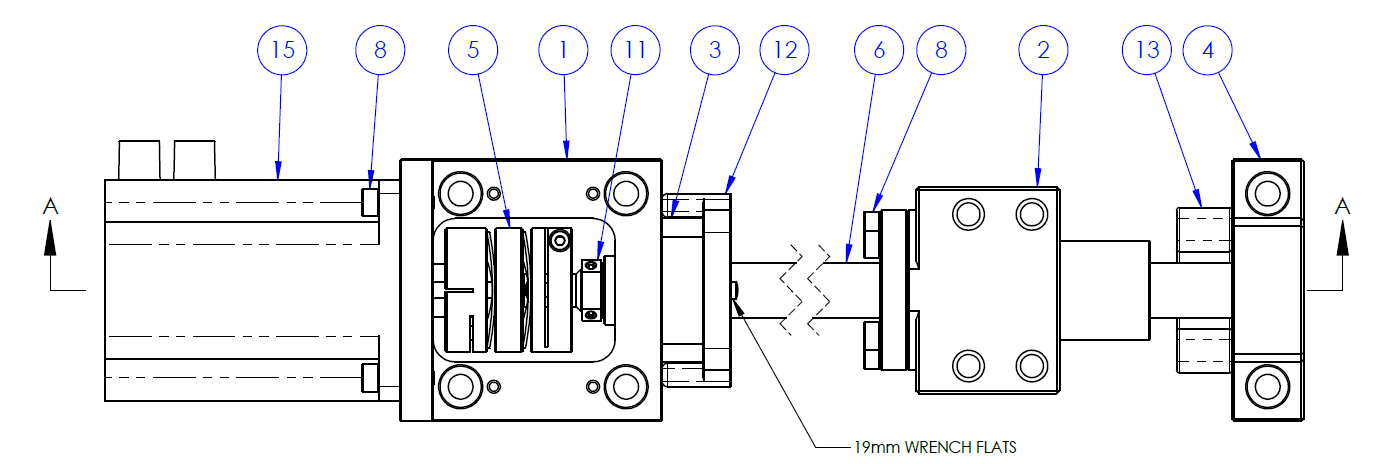

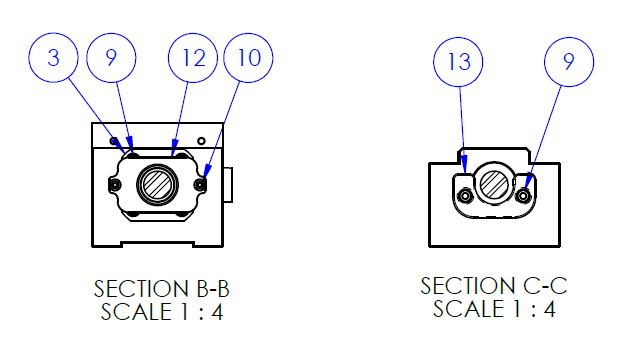

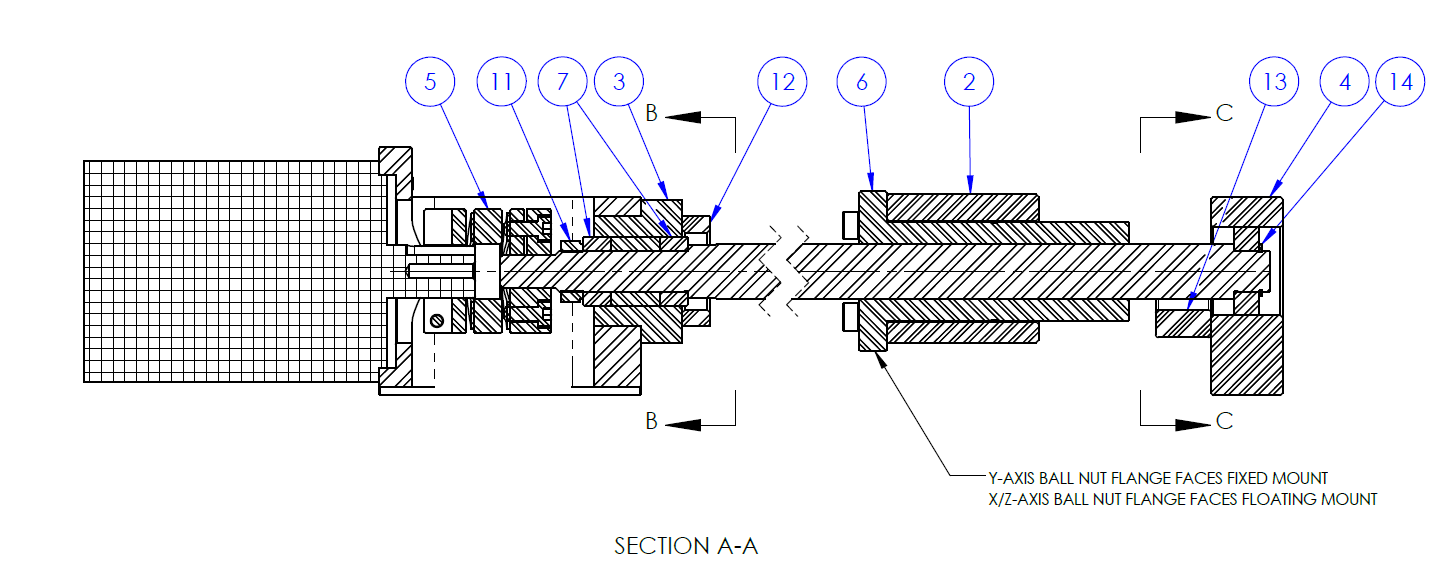

Linear Actuator Assembly - 1500MX


Description

Alternative

Quantity

1

Servo Motor Mount, 80 mm Frame, 70mm Pilot (PN 51260)

1

2

Ball Nut Bracket, 20 mm (PN 51255)

1

3

Ball Screw Support, Fixed-Side (PN 51256)

1

4

Ball Screw Support, Floating-Side, 15 mm ID, 45 mm Bore Height (PN 51261)

1

5

Coupler, Double Disc, 12 mm Bore × 19 mm Bore (PN 51300)

1

6

X-Axis Ball Screw Assembly, 20 mm OD (PN 51744)
Y-Axis Ball Screw Assembly, 20 mm OD (PN 51279)
Z-Axis Ball Screw Assembly, 20 mm OD (PN 51745)

1

7

Spacer, Ball Screw Fixed Side Support, 25 mm OD × 15 mm ID × 10mm Thick (PN 51336)

2

8

Screw, Socket Head Cap, M6 × 1 - 20 (PN 30832)

McMaster-Carr: 91290A326

10

9

Screw, Socket Head Cap, M5 × 0.8 - 16 (PN 30546)

McMaster- Carr: 91290A232

6

10

Screw, Socket Head Cap, M3 × 0.5 - 20 (PN 38572)

McMaster- Carr: 91290A123

2

11

Ball Screw Lock Nut, M15 × 1 (PN 51307)

Misumi: BNRC15

1

12

Servo Motor Mount Bumper (PN 51302) Servo Motor Mount
Bumper (PN 51302)

1

13

Ball Screw Support Bumper (PN 51303) Ball Screw Support
Bumper (PN 51303)

1

14

Retaining Ring, External, OD, 15 mm (PN 51338)

McMaster- Carr: 98541A410

1

15

X-Axis/Y-Axis Servo Motor, 750W (PN 51810)
Z-Axis Servo Motor, 750W (PN 51258)

1

16

X-Axis Servo Power Cable (PN 51571)
Y-Axis Servo Power Cable (PN 51572)
Z-Axis Servo Power Cable (PN 51573)

1

17

X-Axis Servo Encoder Cable (PN 51568)
Y-Axis Servo Encoder Cable (PN 51569)
Z-Axis Servo Encoder Cable (PN 51570)

1
