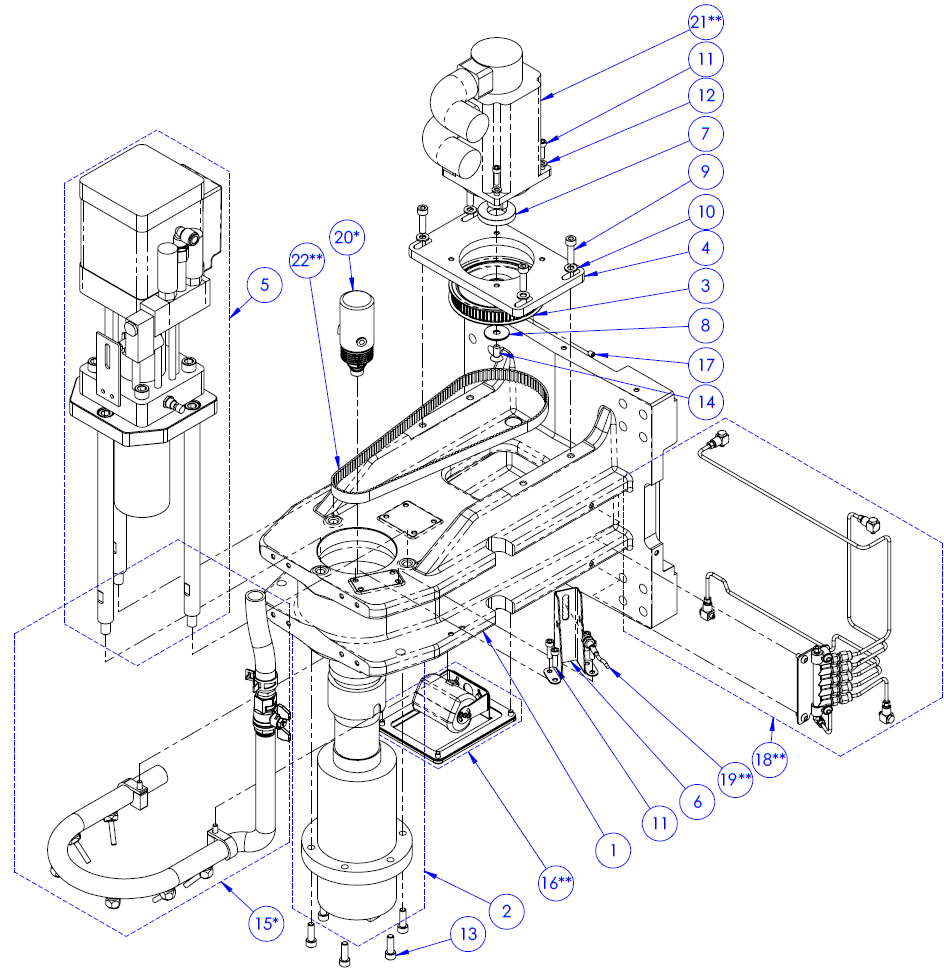

Spindle Head - 1500MX


Description

Alternative Part Number

Quantity

1

Spindle Head Casting, 1500MX (PN 51234)

1

2

1500MX Spindle Cartridge Assembly, BT30, 10000 rpm, 5MHTD-36T Pulley, Through Spindle Coolant (CTS) (PN 51347)

1

3

Spindle Motor Pulley, 1500MX (PN 51235)

1

4

Spindle Motor Mount Plate, 1500MX (PN 51236)

1

5

Power Drawbar Cylinder Assembly, 1500MX (PN 51237)

1

6

Spindle Index Sensor Bracket, 1500MX (PN 51244)

1

7

Spindle Motor Pulley Spacer, 1500MX (PN 52217)

1

8

Spindle Motor Pulley Washer, 1500MX (PN 52218)

1

9

Screw, Socket Head Cap, M8 × 1.25 - 30 (PN 30544)

McMaster-Carr: 91290A434

4

10

Washer, Flat, M8 (PN 30531)

McMaster-Carr: 91166A270

4

11

Screw, Socket Head Cap, M6 × 1 - 20 (PN 30832)

McMaster-Carr: 91290A326

8

12

Washer, Flat, M6 (PN 31676)

McMaster-Carr: 91455A120

4

13

Screw, Socket Head Cap, M8 × 1.25 - 25 (PN 34635)

McMaster-Carr: 91290A432

6

14

Screw, Socket Head Countersunk, M8 × 1.25 - 20 (PN 52222)

McMaster-Carr: 91294A284

1

15

Coolant Ring Assembly, 1500MX (PN 51247)*

1

16

Spindle Head Camera Assembly, 1500MX (PN 52463)**

1

17

Screw, Cup Point Set, M6 × 1 - 8 (PN 30810)

McMaster-Carr: 91390A127

1

18

Z-Axis Lubrication Assembly, 1500MX (PN 51433)**

1

19

Proximity Sensor, PNP-NO, 3-Wire, 8 mm Body (PN 51547)**

1

20

Through Spindle Coolant Rotary Union, 1500MX (PN 51604)*

1

21

Servo Motor, 1500 W, 220 V, 10.8 A, 3000 RPM, Oil Seal (PN 51152)**

1

22

Belt, 1500MX Spindle (PN 51735)**

Gates 800-5M-15
McMaster-Carr: 7939K26

1

*Optional accessory, not included with base machine.

**component not included in this assembly, but shown here for context.
