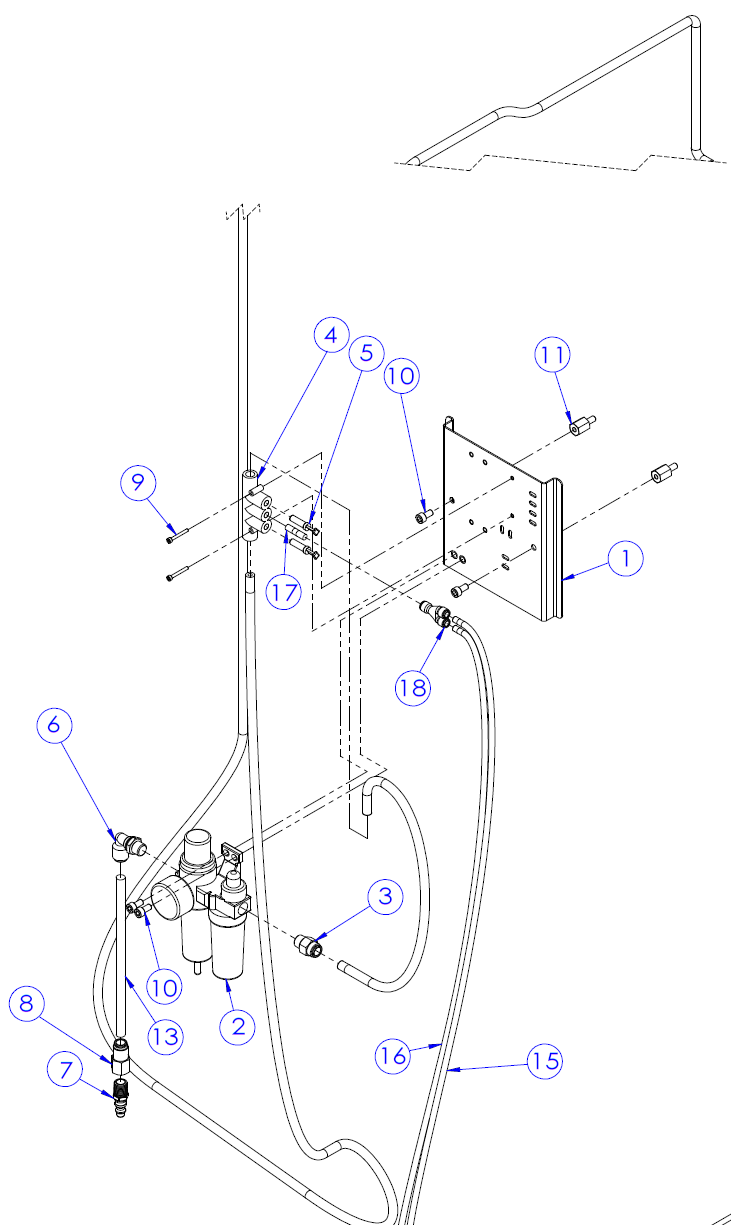

Pneumatics Assembly - 1500MX

1

Machine Pneumatics Bracket, 1500MX (PN 51627)

–

1

2

FRL, 1/4 in. NPT Inlet × 1/4 in. NPT Outlet (PN 51635)

–

1

3

Fitting, Straight, 1/4 in. NPT (Male) - 3/8 in. PTC (PN 52317)

–

1

4

Fitting, Reducing Manifold Union, 2x 3/8 in. PTC Ports - 3x 1/4 in. PTC Ports (PN 52316)

–

1

5

Fitting, Plug, 1/4 in. PTC, Plastic (PN 51629)

–

4

6

Fitting, Elbow, 1/4 in. NPT (Male) - 3/8 in. PTC (PN 52318)

–

1

7

Fitting, Brass Coupling, 1/4 Male NPT

McMaster-Carr: 1077T17

1

8

Fitting, Straight, 1/4 in. NPT (Female) - 3/8 in. PTC (PN 52319)

–

1

9

Screw, Socket Head Cap, M3 × 0.5 - 25

McMaster-Carr: 91290A125

2

10

Screw, Socket Head Cap, M6 × 1 - 12

McMaster-Carr: 91290A318

4

11

Standoff, 16 mm, M6 × 1 - 13 mm Male, M6 × 1 - 10 mm Female, Steel

McMaster-Carr: 93655A255

2

12

Tubing, Polyurethane, 3/8 in. OD, Black, 23 cm Long

McMaster-Carr: 5648K261

1

13

Tubing, Polyurethane, 3/8 in. OD, Black, 23 cm Long

McMaster-Carr: 5648K261

1

14

Tubing, Polyurethane, 3/8 in. OD, Black, 23 cm Long

McMaster-Carr: 5648K261

1

15

Tube, 1/4 in. OD, Polyethylene (Black), 310 cm Long

McMaster-Carr: 5180K71

1

16

Tube, 1/4 in. OD, Polyethylene (Black), 310 cm Long

McMaster-Carr: 5180K71

1

17

Tube, 1/4 in. OD, Polyethylene (Black), 310 cm Long

McMaster-Carr: 5180K71

1

18

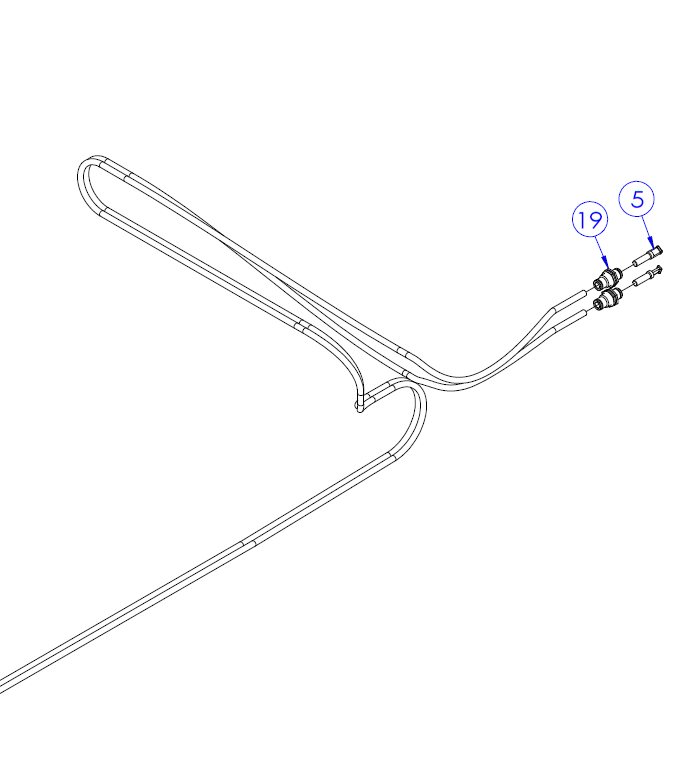

Fitting, Wye, 1/4 in. PTC (PN 38550)

–

1

19

Fitting, Bulkhead Union, 1/4 in. PTC (PN 38884)

–

2
