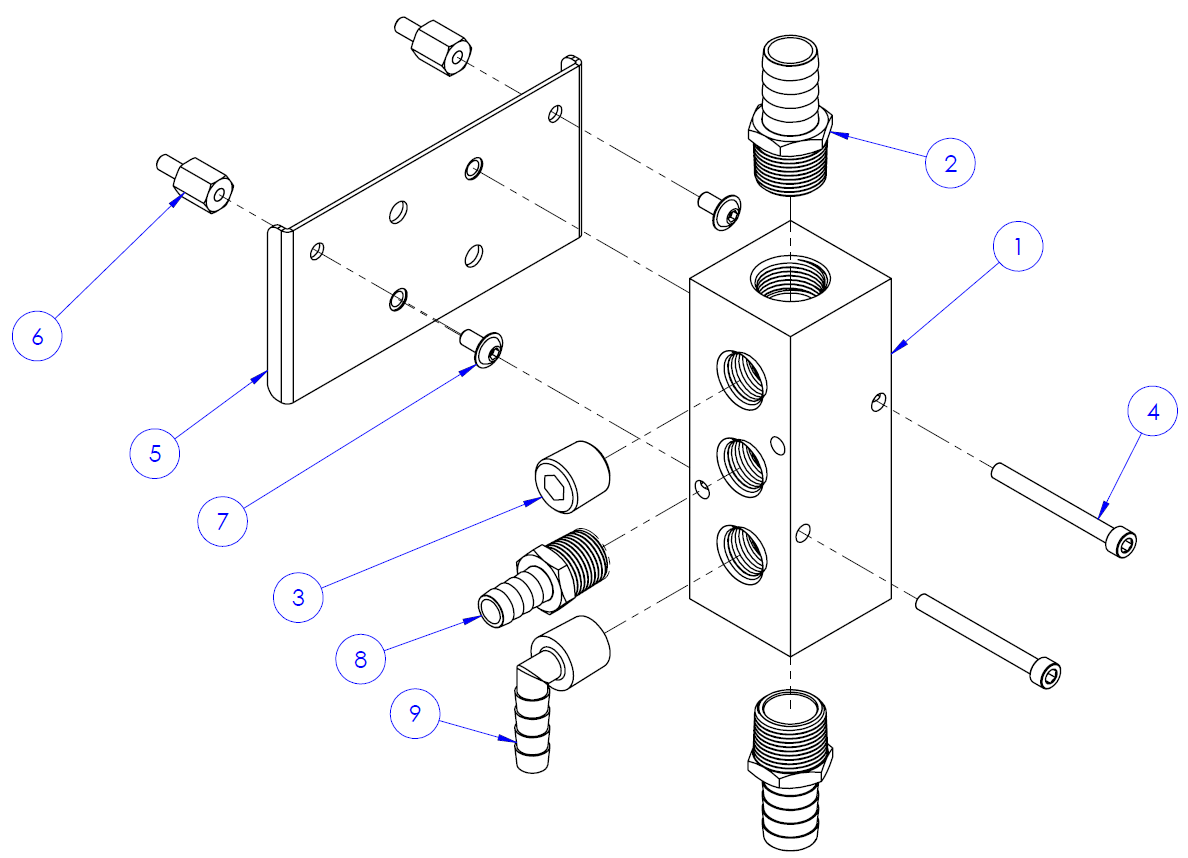

Flood Coolant Manifold Manifold Assembly

1

Fitting, Right Angle Manifold, 2x 3/4 in. NPT Inlets (Female) - 3x 1/2 in. NPT Outlets (Female), Aluminum

McMaster-Carr: 5469K203

1

2

Fitting, Straight Adapter, 3/4 in. NPT (Male) - 3/4 in. Barb, Brass

McMaster Carr: 5346K28

2

3

Fitting, Plug (Internal Hex), 1/2 in. NPT (Male), Brass

McMaster-Carr: 50785K115

1

4

Screw, Socket Head Cap, M6 × 1 - 60

McMaster-Carr: 91290A344

2

5

Bracket, Coolant Manifold, 1500MX (PN 51562)

–

1

6

Standoff, 16 mm, M6 × 1 - 13 mm Male, M6 × 1 - 10 mm Female, Steel

McMaster-Carr: 93655A255

2

7

Screw, Button Head Cap (Flanged), M6 × 1 - 12, Stainless Steel

McMaster-Carr: 90909A727

2

8

Fitting, Straight Adapter, 1/2 in. NPT (Male) - 1/2 in. Barb, Brass

McMaster-Carr: 5346K25

1

9

Fitting, Elbow Adapter, 1/2 in. NPT (Male) - 1/2 in. Barb

McMaster-Carr: 53525K58

1
